WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-866-573-0674, 8:00 am - 4:30 pm CST,
Monday through Friday or email service@usaprocom.com

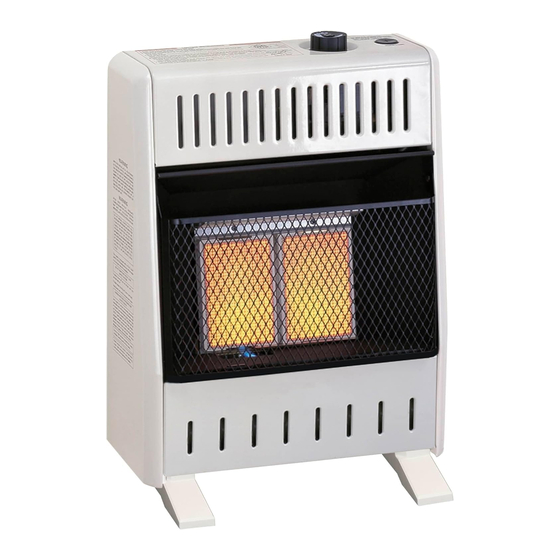

VENT - FREE GAS
SPACE HEATER
OWNER'S OPERATION AND
INSTALLATION MANUAL
INFRARED MODELS
MN100TPA - B
ML100TPA - B
PFS
F09 - 022
CSA/ANS
Z21.11.2 - 2019
UNVENTED ROOM
HEATERS
®
US
Advertisement
Table of Contents
Related Manuals for Procom MN100TPA-B
Summary of Contents for Procom MN100TPA-B
- Page 1 VENT - FREE GAS SPACE HEATER OWNER’S OPERATION AND INSTALLATION MANUAL INFRARED MODELS MN100TPA - B ML100TPA - B ® F09 - 022 CSA/ANS Z21.11.2 - 2019 UNVENTED ROOM HEATERS WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety ............3 Installation ..........8 Specifications ..........4 Operation ..........15 Product Identification ......... 5 Inspecting Burners........17 Qualified Installing Agency ......5 Care And Maintenance ......18 Product Features ........5 Troubleshooting ........19 Air For Combustion and Ventilation ... 6 Parts ............ -
Page 3: Safety
SAFETY IMPORTANT: Read this owner’s WARNING: Do not use any manual carefully and completely accessories not approved for before trying to assemble, op- use with this heater. erate, or service this heater. Improper use of this heater can WARNING: Carefully super- cause serious injury or death vise young children when they from burns, fire, explosion,... -
Page 4: Specifications
12. To prevent performance problems, do not use propane fuel tank of less than 100 lbs. • Where flammable liquids or vapors are capacity. used or stored. • Under dusty conditions. SPECIFICATIONS MODEL MN100TPA-B ML100TPA-B Ignition Piezo Piezo Control Type Thermostat Thermostat... -
Page 5: Product Identification
PRODUCT IDENTIFICATION Ignitor Button Control Knob Grill Burners Front Panel Heater Cabinet Figure 1 - Vent-Free Gas Heater QUALIFIED INSTALLING AGENCY Only a qualified agency should install and re- a) Installing, testing, or replacing gas piping place gas piping, gas utilization equipment or accessories. -
Page 6: Air For Combustion And Ventilation
LOCAL CODES Install and use heater with care. Follow all State of Massachusetts: The installation local codes. In the absence of local codes, must be made by a licensed plumber or use the latest edition of The National Fuel gas fitter in the Commonwealth of Mas- Gas Code, ANSI Z223.1/NFPA 54*. - Page 7 AIR FOR COMBUSTION AND VENTILATION Exhaust fans, fireplaces, clothes dryers and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burning appliances. WARNING: This heater shall not be installed in a room or space unless the required volume of indoor combustion air is provided by the method described in the National Fuel Gas Code, ANSI Z223.1/ NFPA 54, the International Fuel Gas Code, or applicable local codes.
-
Page 8: Installation
INSTALLATION NOTICE: This heater is intended CAUTION: This heater cre- for use as supplemental heat. ates warm air currents. These Use this heater along with your currents move heat to wall sur- primary heating system. Do not faces next to heater. Installing install this heater as your pri- heater next to vinyl or cloth wall mary heat source. - Page 9 INSTALLATION LOCATING HEATER Methods For Attaching Mounting Bracket To Wall This heater is designed to be mounted on a Use only the last hole on each end of mount- wall. For convenience and efficiency, install ing bracket to attach bracket to wall. Attach heater: mounting bracket to a wall only in one of two 1.
- Page 10 INSTALLATION Attaching Mounting Bracket To Placing Heater On Mounting Wall Bracket 1. Locate two horizontal slots on back panel Note: Wall anchors, mounting screws, and of heater (see Figure 9). spacers are in hardware package. The hard- ware package is provided with heater. 2.
- Page 11 INSTALLATION Follow steps 1 through 4 under Attaching bottom mounting hole and spacer. Place To Wall Anchor Method, page 10. If install- tip of screw in opening of wall anchor or ing bottom mounting screw into wall stud, drilled hole. drill holes at marked locations using 9/64"...
- Page 12 CONNECTING TO GAS SUPPLY WARNING: A qualified ser- CAUTION: For natural gas, vice technician must connect check your gas line pressure before connecting heater to gas heater to gas supply. Follow all line. Gas line pressure must be local codes. no greater than 10.5"...
- Page 13 INSTALLATION Ground 3/8" NPT Joint Union Pipe Nipple Tee Joint Equipment Shutoff Valve Reducer Bushing to Natural Gas Test Gauge 1/8" NPT From Gas Meter Connection* (7" W.C.** to 10.5" 1/8" NPT W.C. Pressure) Plug Tap Tee Joint Sediment Pipe Nipple 3"...
- Page 14 INSTALLATION CHECKING GAS CONNECTIONS 3. Check all joints from gas meter to equip- WARNING: Test all gas piping ment shutoff valve for natural gas or and connections for leaks after propane supply to equipment shutoff valve installing or servicing. Correct for propane (see Figure 14 or 15).
-
Page 15: Operation
OPERATION FOR YOUR SAFETY READ BEFORE LIGHTING • Do not touch any electric switch; do WARNING: If you do not fol- not use any phone in your building. low these instructions exactly, • Immediately call your gas supplier a fire or explosion may result from a neighbor’s phone. - Page 16 OPERATION Ignitor Electrode 8. Turn control knob counterclockwise Thermocouple to desired heating level. The main burner Pilot Burner should light. Set control knob to any heat level between HI and LO. CAUTION: Do not try to ad- just heating levels by using the equipment shutoff valve.
-
Page 17: Inspecting Burners
INSPECTING BURNERS IMPORTANT: Owner’s should check pilot flame pattern and burner flame pattern often. Incorrect flame patterns indicate the need for cleaning (see Care and Maintenance, page 18) or service. WARNING: Only a qualified service person should service and repair heater. This includes maintenance requiring replacement or alteration of components. -
Page 18: Care And Maintenance
CARE AND MAINTENANCE WARNING: Turn off heater and let cool before servicing. CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service techni- cian. -
Page 19: Troubleshooting
TROUBLESHOOTING WARNING: If you smell gas: • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Fol- low the gas supplier’s instructions. - Page 20 TROUBLESHOOTING Problem Possible Cause Corrective Action ODS/pilot lights but flame 1. Control knob is not fully 1. Press in control knob fully. goes out when control pressed in. knob is released. 2. Control knob is not pressed 2. After ODS/pilot lights, keep in long enough.
- Page 21 TROUBLESHOOTING Problem Possible Cause Corrective Action Gas odor during com- 1. Foreign matter between 1. Take apart gas tubing and bustion. control valve and burner. remove foreign matter. 2. Gas leak. (See Warning 2. Locate and correct all leaks Statement at top of page 19). (see Checking Gas Connec- tions, page 14).
-
Page 22: Parts
PARTS This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 23 of this manual. MODELS MN100TPA - B & ML100TPA - B ITEM PART # DESCRIPTION 161132-01 Mounting Bracket ML083-03 Piezo Ignitor MB29003... -
Page 23: Replacement Parts
• The replacement part number ACCESSORIES Purchase these heater accessories from your local dealer. If they can not supply these ac- cessories, contact ProCom Heating, Inc. at 1-866-573-0674 email service@usaprocom. com for information. EQUIPMENT SHUTOFF VALVE For all models. Equipment shutoff valve with 1/2" NPT tap... -
Page 24: Warranty
We make no other warranty, expressed or implied. NEW PRODUCTS Standard Warranty: ProCom Heating, Inc. warrants this product to be free from defects in materials and components for ONE (1) year from the date of first purchase, provided that the product has been properly installed by a qualified installer in accordance with all local codes and instructions furnished with the unit, operated and maintained in accordance with all applicable instructions.
