FOR HEATERS EQUIPPED WITH A BLOWER
Do not use this heater if any
part of it has been under water.
Immediately call a qualified ser-
vice technician to inspect the
heater and replace any part of
the electrical system which has
been under water.

GROUNDING INSTRUCTIONS

This heater is for use on 120 volts. The cord
has a plug as shown at A in Figure 23. An
adapter as shown at C is available for con-
necting three-blade grounding-type plugs to
two-slot receptacles. The green grounding
lug extending from the adapter must be
connected to a permanent ground such as
a properly grounded outlet box. The adapter
should not be used if a three-slot grounded
receptacle is available.
Any electrical re-wiring of this appliance must
be done by a qualified electrician. This wiring
must be done in accordance with local codes
and/or in Canada with the current CSA C22.1
Canadian Electrical Code, and for US instal-
lations, the National Electrical Code ANSI/
NFPA NO 70.
WARNING: If repairing or
replacing any electrical compo-
nent or wiring, the original wire
routing, color coding and secur-
ing locations must be followed.
CAUTION: Label all wires
prior to disconnection when
servicing controls. Wiring errors
can cause improper and danger-
ous operation.
200218-01A

ELECTRICAL CONNECTION

ELECTRICAL WIRING

www.usaprocom.com
Grounding Pin
C
Adapter
Grounding Means

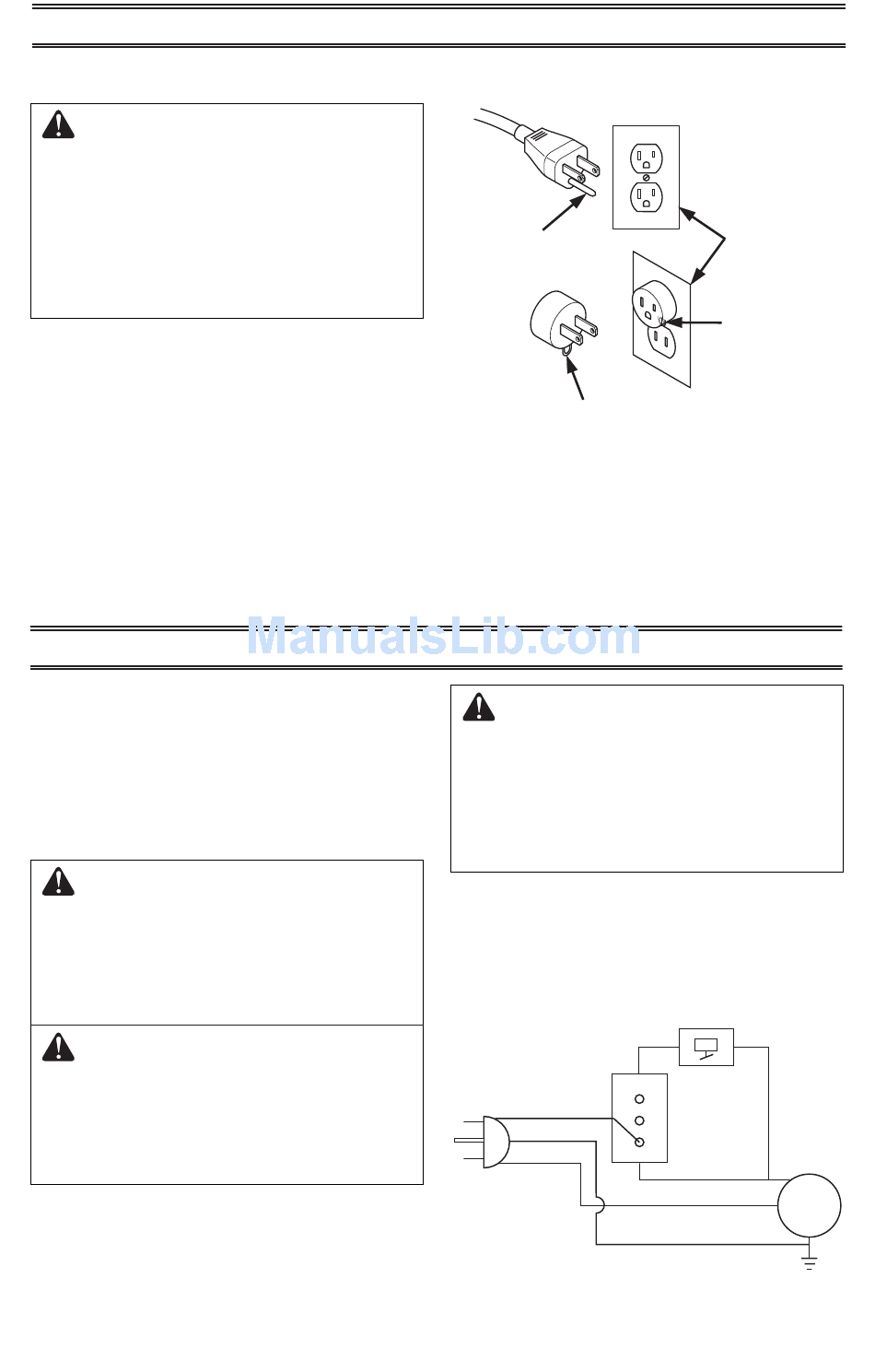

Figure 23 - Grounded Electrical Outlet
WARNING: Never attempt to
service heater while it is plugged
in, operating, or hot. Burns and
electrical shock could result.
Only a qualified service person
should service or repair heater.
Verify proper operation after servicing. If any
of the original wire as supplied with the appli-
ance must be replaced, it must be replaced
with a wire of at least a 105º C temperature
rating.
Switch
Black
Green
White
A
Cover of
Grounded
B
Outlet Box
Metal Screw
Thermostat Switch
AUTO
O
MAN
Motor
