CEILING
6"
Minimum
From
Sides of
Heater
Left
Side
2" Minimum to Top Surface of Carpeting,
Tile or Other Combustible Material
FLOOR

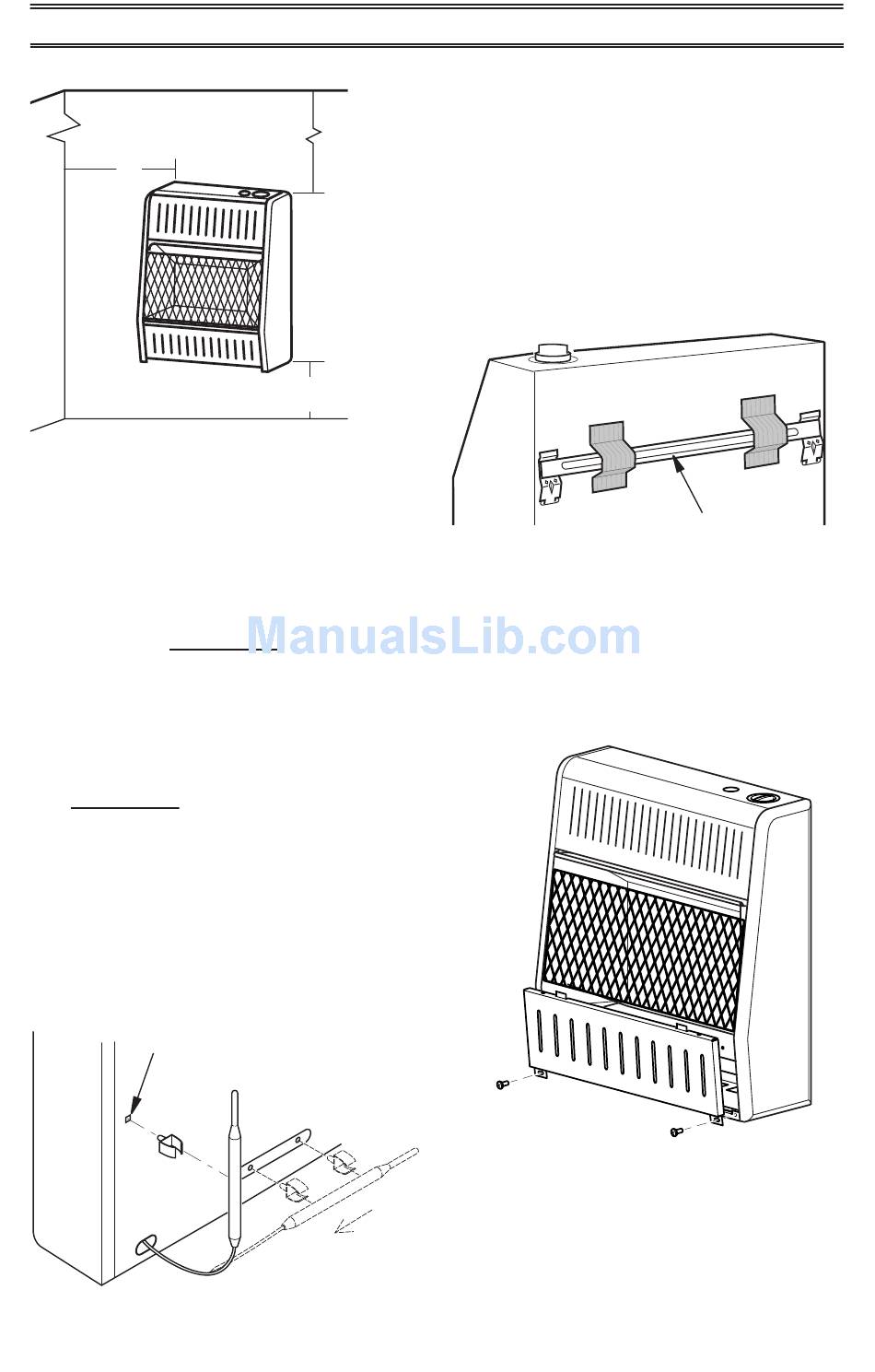

Figure 4 - Mounting Clearances as
Viewed From Front of Heater

LOCATING HEATER

This heater is designed to be mounted on a
wall. You can locate heater on the floor, away
from a wall. An optional floor mounting stand
is needed. See Accessories, page 30.
For convenience and efficiency, install heater:
1. Where there is easy access for operation,
inspection, and service.
2. In the coldest part of room.
An optional fan kit is available from your dealer
See Accessories, page 30. If planning to use
fan, locate heater near an electrical outlet.
INSTALLING THERMOSTAT
SENSING BULB (OPTIONAL)
1. Pull out the sensing bulb from the two clips
located in the shipping position according
to the direction as shown by the arrow.
There is no need to take out the two bulb
clips.
Hole for Installing Clip
Figure 5 - Moving Thermostat Sensing
200044-01A
INSTALLATION
36"
Minimum
Right
Side
Bulb
www.usaprocom.com
2. Take out the bulb clip from the hardware
package and insert it into the square hole.
Insert the sensing bulb into the bulb clip
(see Figure 5).

FASTENING HEATER TO WALL

The mounting bracket is located on back panel
of heater (see Figure 6). It has been taped
there for shipping. Remove mounting bracket
from back panel.
Figure 6 - Mounting Bracket Location
Removing Front Panel of Heater
1. Remove two screws near bottom corners
of lower front panel.
2. Pull bottom of lower front panel forward,
then down (see Figure 7).
Figure 7 - Removing Front Panel Of
Pull
Out
Mounting Bracket
Mounting Bracket
Heater
11
