Procom MNSD2TPA Owner's Operation And Installation Manual page 12

3
6 / "
4
Min.
Only Insert Mounting
Screws Through Last
Hole On Each End
Model: MNSD2TPA
10 / "
5
8
Min.
Only Insert Mounting
Screws Through Last
Hole On Each End
Models:
MNSD3TPA, MNSD5TPA
MNSD3TPA-BB, MNSD5TPA-BB

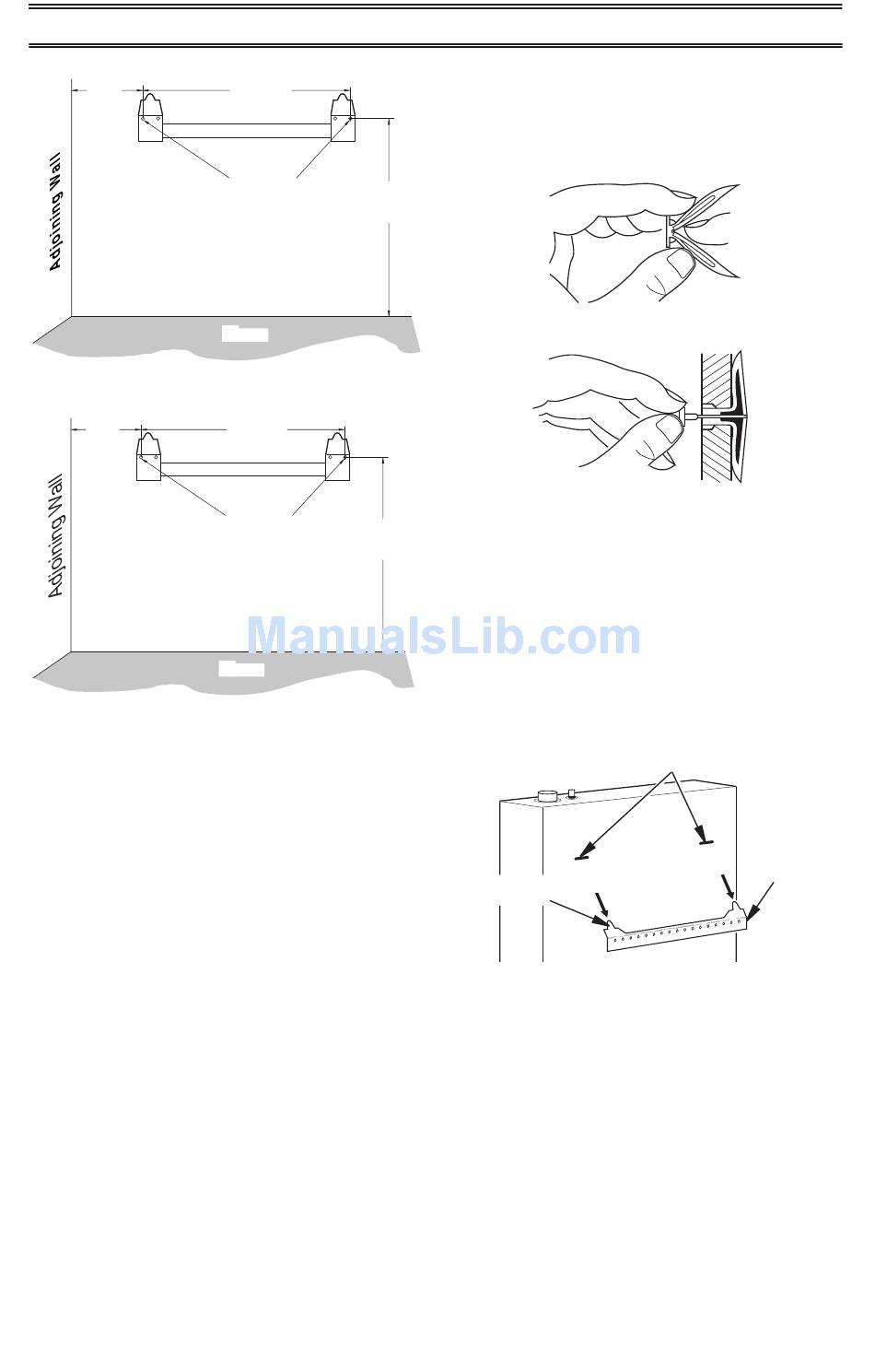

Figure 7 - Mounting Bracket Clearances
Attaching to Wall Anchor Method
For attaching mounting bracket to hollow
walls (wall areas between studs) or solid walls
(concrete or masonry):
1. Drill holes at marked locations using
5/16" drill bit. For solid walls (concrete or
masonry), drill at least 1" deep.
2. Fold wall anchor as shown in Figure 8.
3. Insert wall anchor (wings first) into hole.
Tap anchor flush to wall.
4. For thin walls (1/2" or less), insert red key
into wall anchor. Push red key to "pop"
open anchor wings (see Figure 9).
IMPORTANT: Do not hammer anchor key! For
thick walls (over 1/2" thick) or solid walls, do
not pop open wings.
5. Place mounting bracket onto wall. Line up
last hole on each end of bracket with wall
anchors.
12
INSTALLATION
1
12 / "
8
14
Min.
Floor
17 / "
3
8
18
Min.
Floor
www.usaprocom.com
6. Insert mounting screws through bracket
and into wall anchors.
7. Tighten screws until mounting bracket is
firmly fastened to wall.
1 / "
2
Figure 8 - Folding Anchor
Figure 9 - Popping Open Anchor Wings
/ "
1
2
Placing Heater On Mounting
1. Locate two horizontal slots on back panel
of heater (see Figure 10).
2. Place heater onto mounting bracket. Slide
horizontal slots onto stand-out tabs on
mounting bracket.
Stand-Out Tab
Figure 10 - Mounting Heater Onto
For Thin Walls
Bracket
Horizontal Slots
Mounting Bracket
Mounting
Bracket
(attached
to wall)
200218-01A
