Figure 6-49 Aligning The Processor Module Power Pod - HP 9000 rp3410 User's & Service Manual

Step 11. Slide the power module on the system board metal mounting bracket so that the connector on the
power module makes contact with its connector on the dual processor module.

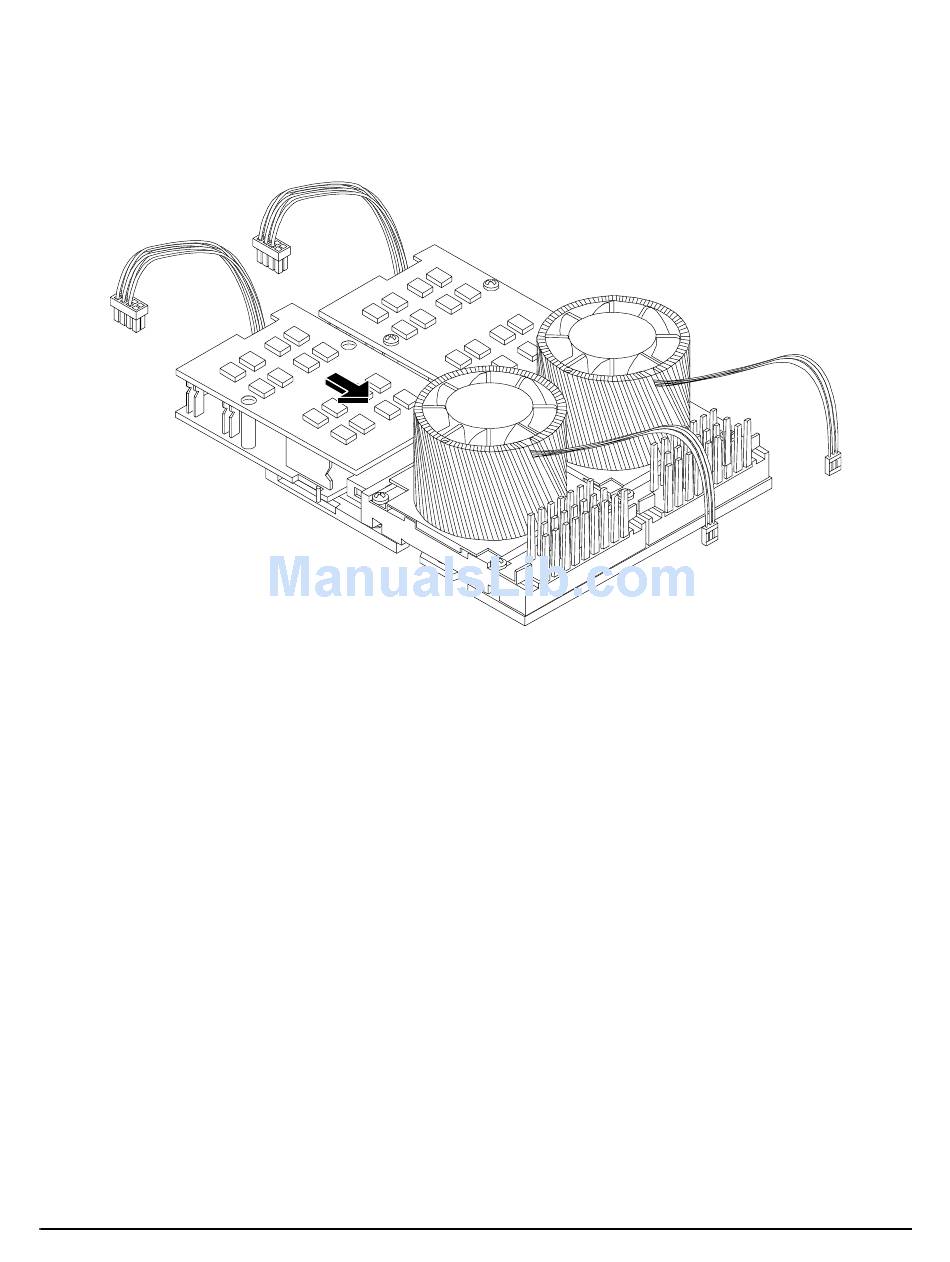

Figure 6-49 Aligning the Processor Module Power Pod
