Step 9. Disconnect the turbo fan power cable.

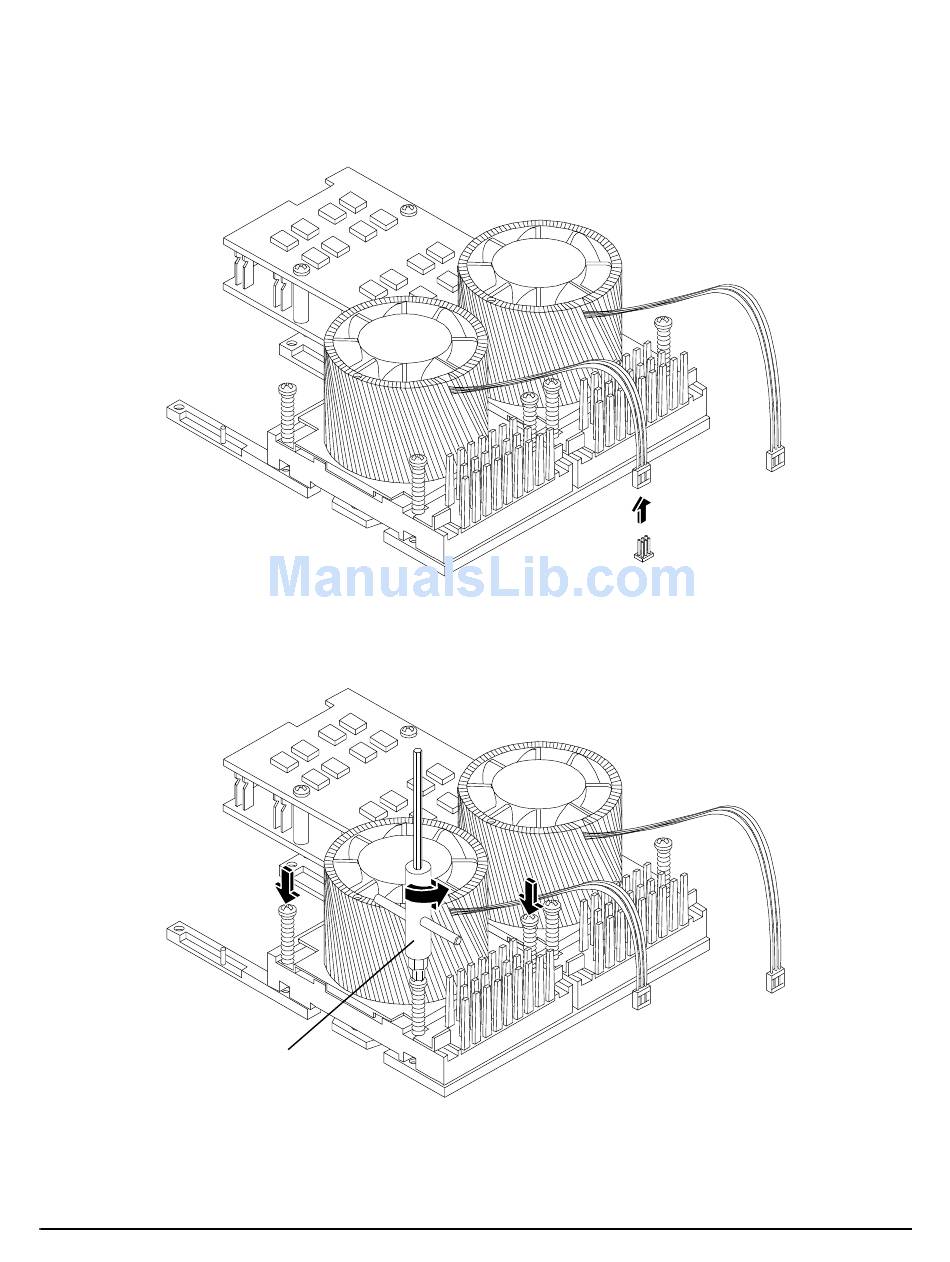

Figure 6-39 Disconnect the Turbo Fan Cable

Step 10. Release the four heatsink captive screws on the module heat sink.

Figure 6-40 Release Heatsink Captive Screws

CPU Install Tool
Step 11. Slide the sequencing retainer plate toward the back of the server to open the hole in the edge of the
heatsink for insertion of the special processor tool into the processor module locking mechanism.
