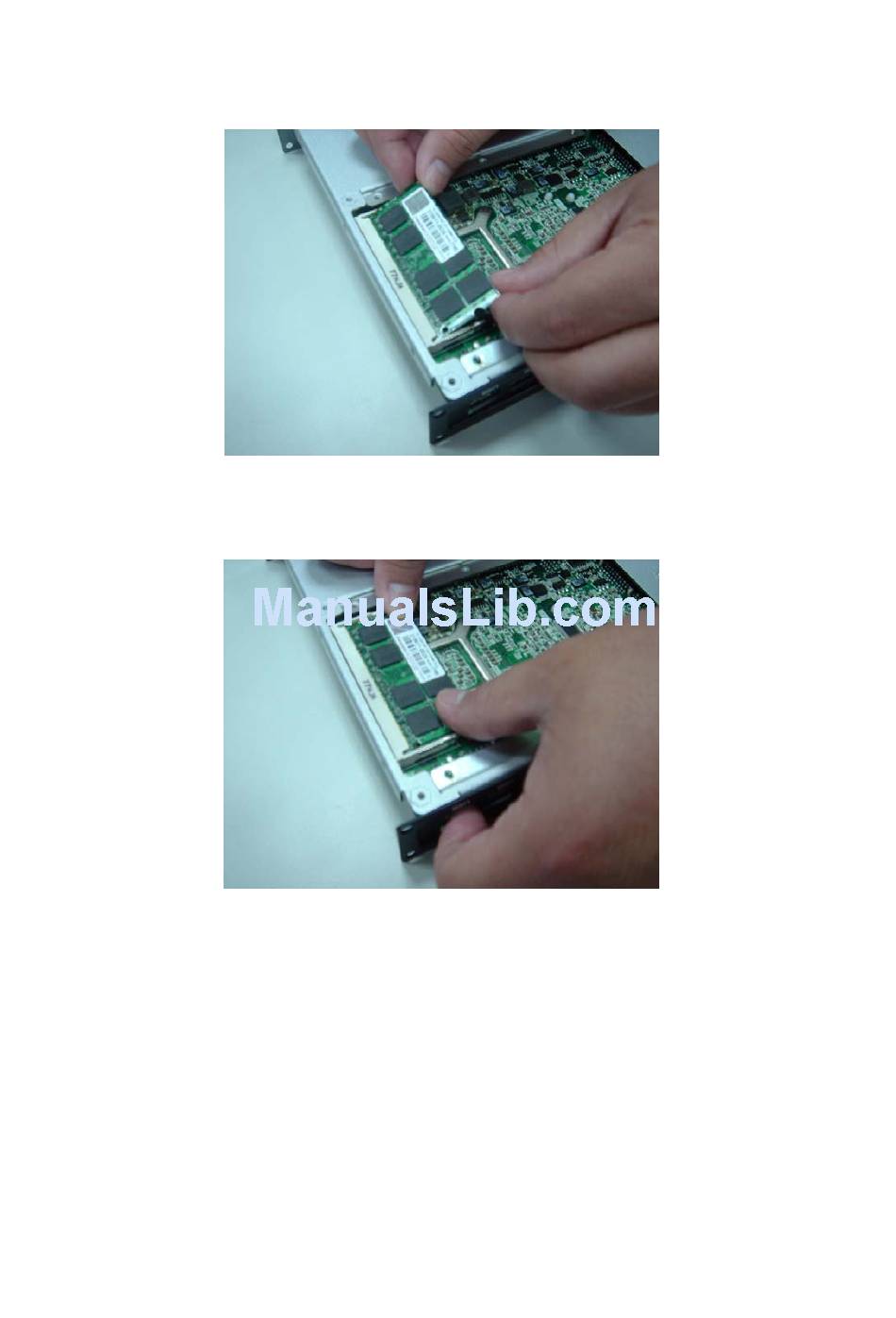

Figure 4 Align the SO-DIMM Memory Module with the onboard socket
4.
Fully insert the module into the socket until a "click" is heard.
Figure 5 Fully insert the SO-DIMM Memory Module into the onboard socket
5.
Press down on the SO-DIMM so that the tabs of the socket lock on both sides
of the module.
Figure 6 Press down on the SO-DIMM Memory Module to lock it in place
6.
Replace the chassis bottom cover as described above.
QDSP-1000/ 1010 User's Manual
