Installing a Memory Module

Remove the chassis bottom cover
Loosen one flathead screws and remove the chassis bottom cover
Installing a SO-DIMM
1. To avoid generating static electricity and damaging the SO-DIMM, ground
yourself by touching a grounded metal surface or use a ground strap before you
touch the SO-DIMM.
2. Do not touch the connectors of the SO-DIMM. Dirt or other residue may cause a
malfunction.
3. Hold the SO-DIMM with its notch aligned with the memory socket of the
QDSP-2020 and insert it at a 30-degree angle into the socket.

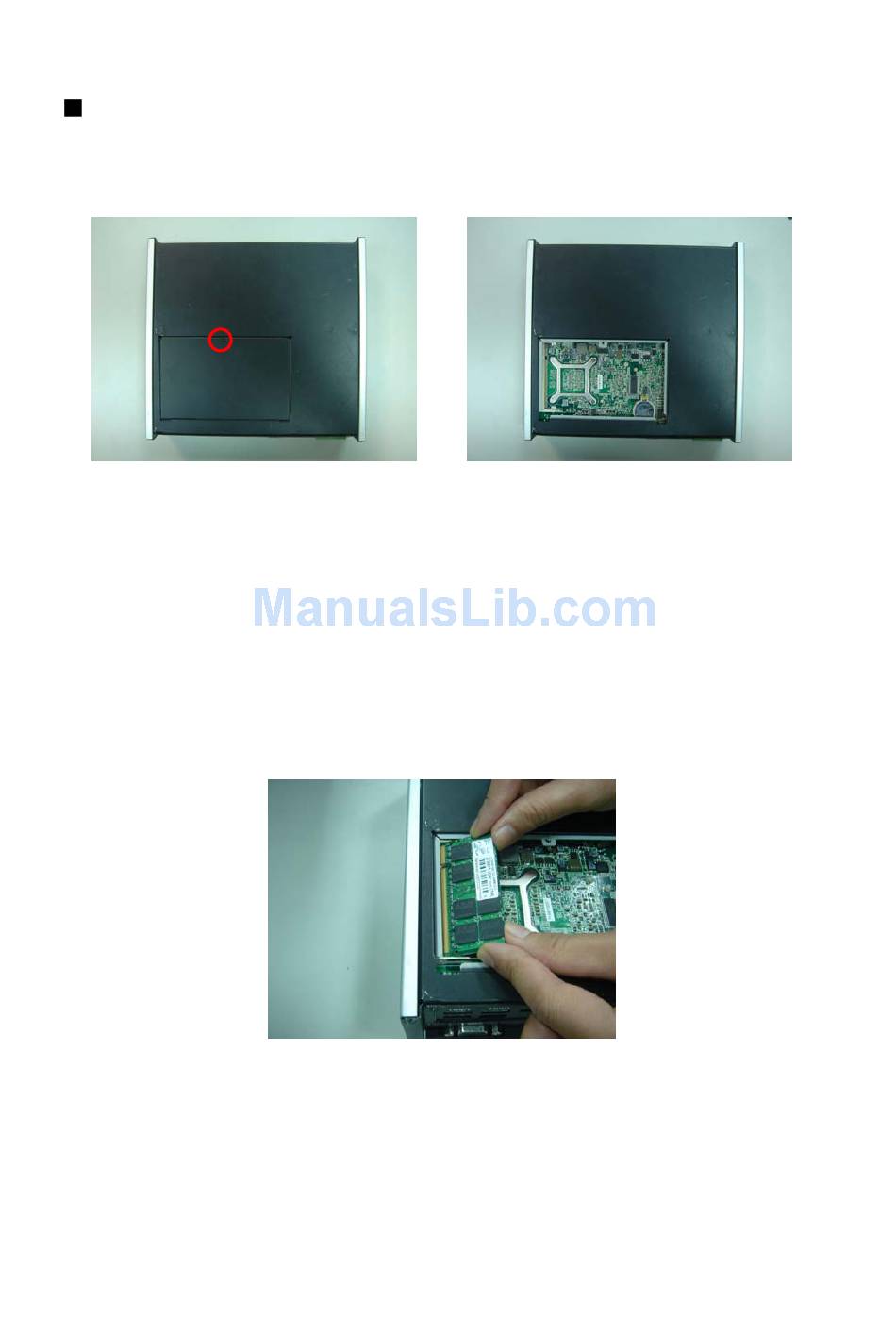

Figure 4 Align the SO-DIMM Memory Module with the onboard socket

4. Fully insert the module into the socket until a "click" is heard.
QDSP-2020 User's Manual

Figure 3 Remove chassis bottom cover

18
Chapter 2
