Memory Module Installation

Before the memory installation, you should
remove the motherboard form the chassis in advance. Please contact our technical support
for detail assistant of this process.
Carefully follow the steps below in order to install the DIMMs:
1. To avoid generating static electricity and damaging the SO-DIMM, ground
yourself by touching a grounded metal surface or use a ground strap before you
touch the SO-DIMM.
2. Do not touch the connectors of the SO-DIMM. Dirt or other residue may cause a
malfunction.
3. Hold the SO-DIMM with its notch aligned with the memory socket of the board
and insert it at a 30-degree angle into the socket.

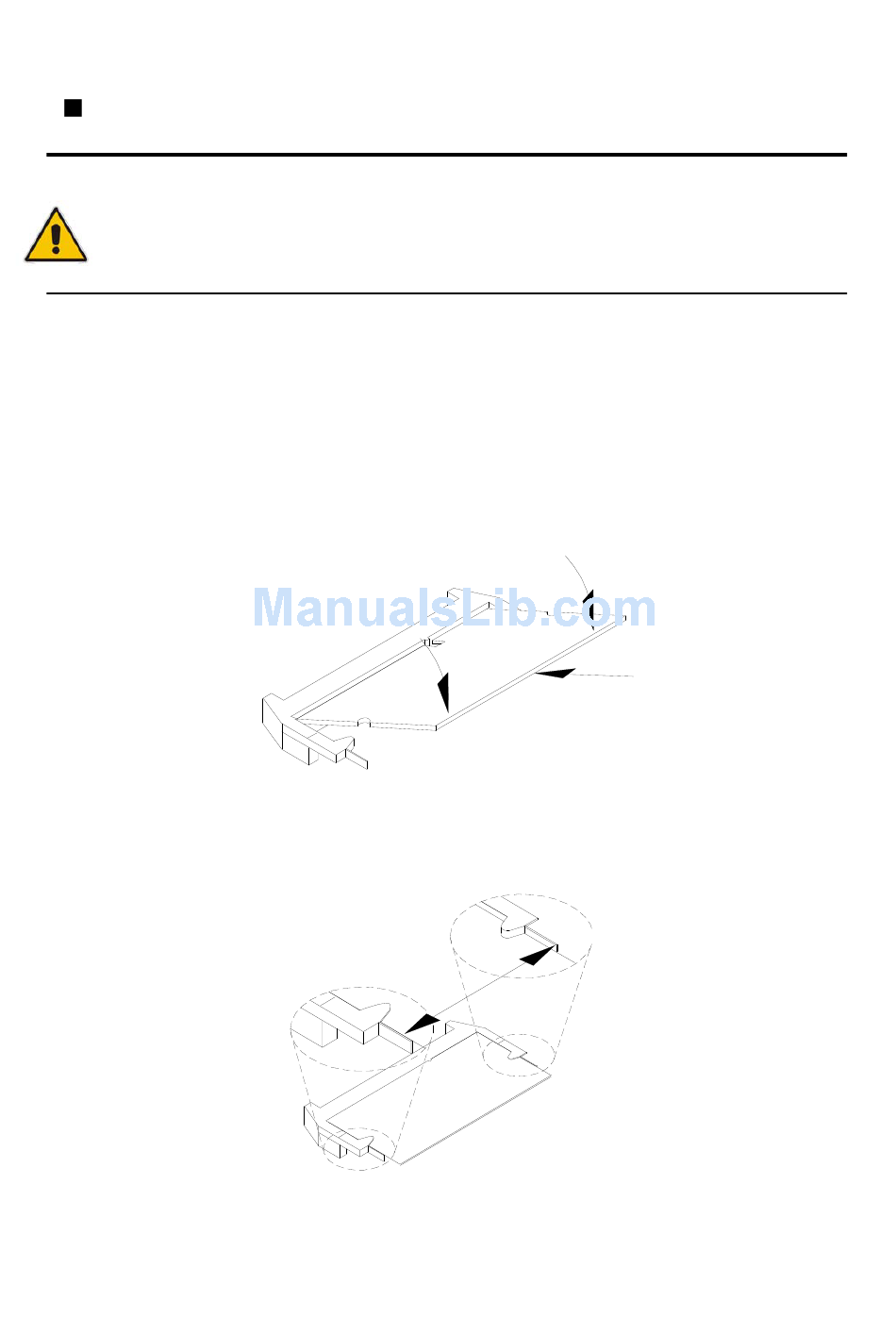

Figure 10 Align the SO-DIMM Memory Module with the onboard socket

4. Fully insert the module into the socket until a "click" is heard.
5. Press down on the SO-DIMM so that the tabs of the socket lock on both sides
of the module
Figure 11 Press down on the SO-DIMM Memory Module to lock it in place
QDSN-2600 User's Manual
NOTE
detach
the related cables from motherboard and
