- Page 1 QDSN-2600 All-In-One Digital Signage Computer with Intel® 45nm Core™ 2 Duo Support User’s Guide QDSN-2600 User’s Manual...
- Page 2 © 2009 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
HDD Installation .................. 26 VESA Mounting................... 27 Chapter 3 On-Screen Display Setting..............28 Chapter 4 Getting Started ..................33 Power Connection ................33 Operating System and Drivers............33 Chapter 5 Maintenance and Prevention ..............34 QDSN-2600 User’s Manual... -
Page 4: Figures
Figure 10 Align the SO-DIMM Memory Module with the onboard socket... 25 Figure 11 Press down on the SO-DIMM Memory Module to lock it in place25 Figure 12 HDD Installation ................. 26 Figure 13 Mounting hole locations ............. 27 QDSN-2600 User’s Manual... -
Page 5: Tables
Tables Tables Table 1 Specifications ................15 Table 2 USB (USB2.0 Type A Connector) ..........17 Table 3 LAN1 (10/100/1000 Ethernet RJ-45 Connector)......17 Table 4 COM (DB9 Male Connector) ............18 QDSN-2600 User’s Manual... -
Page 6: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. WARNING High voltages are present inside the chassis when the unit’s power cord is plugged into... -
Page 7: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 8: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The power of the QDSN-2600 has the following voltage ratings: 100-240 VAC, 50-60 Hz 5.0A QDSN-2600 User’s Manual... -
Page 9: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 10: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 11: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. -
Page 12: Power Protection
Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power. QDSN-2600 User’s Manual... - Page 13 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS QDSN-2600 User’s Manual...
-
Page 14: Chapter 1 Introduction

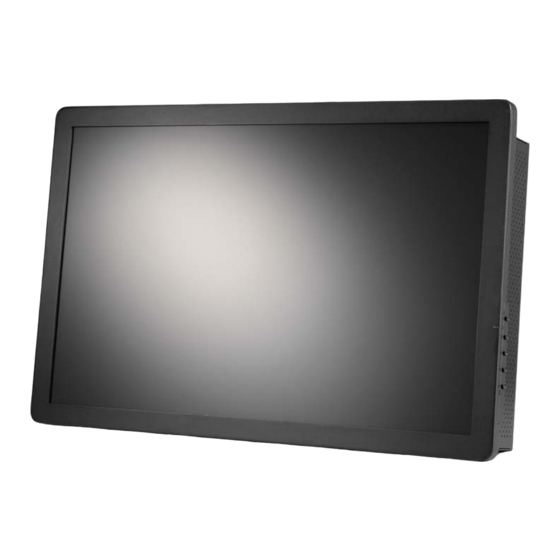

Chapter 1 Introduction Overview The QDSN-2600 All-In-One Digital Signage Computer is supporting the latest Intel® 45nm Core 2 Duo processor with the high integration of the Intel® GM45/ ICH9M chipset. Featured are DDR3 SODIMM up to 2GB, Intel® GMA 4500MHD supports DirectX 10 and Shader Model 4.0. -
Page 15: Product Specifications
610.4 x 404.1 x 94.5 Weight (KG) 12.5 Power Input AC100-240V Mounting Type VESA Mount, 200 x 100 mm EMC certificate CE, FCC Class A Touch Screen (QDSN-2602) : Surface acoustic Wave (SAW) Touch Panel Table 1 Specifications QDSN-2600 User’s Manual... -
Page 16: Mechanical Layout
Chapter 1 Mechanical Layout Front and Side View Figure 1 Mechanical Layout - Front and Side View Bottom View Figure 2 Mechanical Layout – Bottom View QDSN-2600 User’s Manual... -
Page 17: External Connectors
Be sure not to block any air vents of the system. Blocked air vents can cause thermal problems. External Connectors Table 2 USB (USB2.0 Type A Connector) Signal Name Signal Name USB1- USB0- USB1+ USB0+ Table 3 LAN1 (10/100/1000 Ethernet RJ-45 Connector) Signal Signal QDSN-2600 User’s Manual... -
Page 18: Table 4 Com (Db9 Male Connector)
GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send +5V / +12V / RI, Ring indicator ： Note Selected by BIOS Setting **COM Function Type RS232/422/485 can be selected from BIOS setting. QDSN-2600 User’s Manual... -
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Figure 4 Mechanical Dimensions QDSN-2600 User’s Manual... -
Page 20: Chapter 2 Assembly/Disassembly
Remove the screws securing the rear panel of the chassis as shown. (4x flathead screws from top and bottom side, 3x flathead screws from right/left side and 7x flathead screws from chassis cover) Figure 5 Removing the rear cover QDSN-2600 User’s Manual... -
Page 21: Figure 6 Mechanical Internal Layout
2) Lift the chassis cover up and off of the chassis base. Note the locations of the internal components of the system. Figure 6 Mechanical Internal Layout NOTE The system was equipped with SO-DIMM DDR3-RAM. We suggest do not install or remove the RAM by yourself. QDSN-2600 User’s Manual... -
Page 22: Processor Installation
Align the gold triangle on the CPU with the similar marking on the socket (see Figure below). If the processor does not drop completely into the socket, turn the socket actuator to the open position until the processor drops completely in. QDSN-2600 User’s Manual... -
Page 23: Figure 8 Cpu Alignment In Micro-Fcpga Socket (Socket P)
To remove the CPU, follow Step 2 of Installing the CPU above. Remove the CPU by grasping the substrate edges only with thumb and forefinger and lifting it out with a purely vertical motion. WARNING The CPU and the heat-sink may be hot and could cause burns. QDSN-2600 User’s Manual... -
Page 24: Cooler Installation
Tighten each screw halfway to secure the cooler assembly to the motherboard. Then gradually tighten all four screws. Do not fully tighten the first screw before partially tightening the other screws as this may apply uneven pressure to the CPU, causing damage. QDSN-2600 User’s Manual... -
Page 25: Memory Module Installation
Fully insert the module into the socket until a “click” is heard. Press down on the SO-DIMM so that the tabs of the socket lock on both sides of the module Figure 11 Press down on the SO-DIMM Memory Module to lock it in place QDSN-2600 User’s Manual... -
Page 26: Hdd Installation
Step 2 Secure the hard drive to the brackets using the 4 short screws provided. Connecting the SATA data & power cables to the HDD and motherboard then secure the bracket to the chassis. Figure 12 HDD Installation QDSN-2600 User’s Manual... -
Page 27: Vesa Mounting
Chapter 3 VESA Mounting The product comes with VESA FDMI standard mounting holes as shown below. Use screws with the appropriate length for your mounting bracket. Figure 13 Mounting hole locations QDSN-2600 User’s Manual... -
Page 28: Chapter 3 On-Screen Display Setting
When not in OSD menu, directly enters Opticolor Mode. Recall both of Contrast and Brightness. Power Lock (when in OSD menu) ,Press 2 time to unlock it OSD Lock (when in OSD menu ) ,Press 2 time to unlock it QDSN-2600 User’s Manual... - Page 29 (Fine Tune) and Clock (H. Size) of the screen. Contrast: To adjust the foreground white level of screen image. : increase contrast, : decrease contrast. Brightness: To adjust the luminance of the video. : increase brightness, : decrease brightness. QDSN-2600 User’s Manual...
- Page 30 Note: See your graphic card user guide for more information about changing the resolution and refresh rate. Manual Image Adjust: To manually adjust the Horizontal Size, H./ V. position, Fine Tune ,Sharpness ,Video Mode Adjust and OptiColor Mode. QDSN-2600 User’s Manual...
- Page 31 Standard is for general windows environment and monitor default setting. Game optimized for PC game environment. Movie optimized for movie and video environment. Scenery optimized for displaying outdoor scenery images. Text optimized for text editing and viewing in a word processing environment. QDSN-2600 User’s Manual...
- Page 32 OSD Time Out: To automatically turn off On Screen Display (OSD) after a preset period of time. OSD Background: Allows the user to turn the OSD background On or Off. Memory Recall: To recall factory settings for Video controls. Press button select the Memory Recall menu option. QDSN-2600 User’s Manual...
-
Page 33: Chapter 4 Getting Started
You can download the drivers for the product from the Quanmax website at www.quanmax.com and install as instructed there. For other operating systems, please contact Quanmax. -
Page 34: Chapter 5 Maintenance And Prevention
Make sure the ventilation holes are clear of debris.` CAUTION Do NOT do any of the following: Allow water to enter the system Use a heavily dampened cloth Spray water directly inside of system QDSN-2600 User’s Manual...
