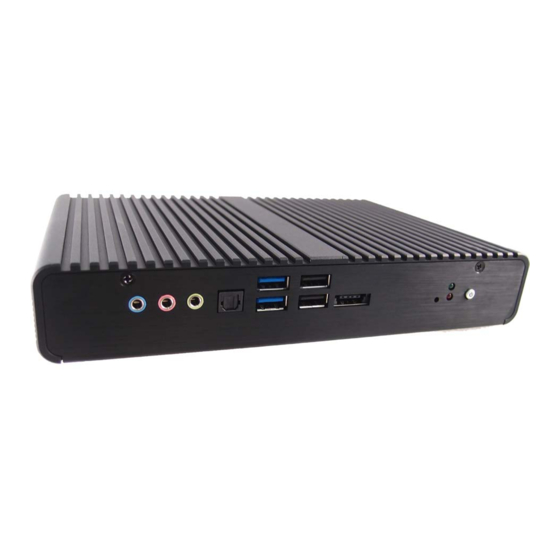

- Page 1 QDSP-5001 Series ® Fanless Box PC w/ Intel Celeron Dual Core / Core i Processor User’s Guide QDSP-5001 Series User’s Manual...
- Page 2 © 2013 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Chapter 3 AMI BIOS Setup ..................24 Overview ....................24 Main Menu ....................25 Advanced Menu ..................26 Boot Menu ....................38 Security Menu .................... 39 Save & Exit Menu ..................40 Chapter 4 Driver Installation .................. 42 QDSP-5001 Series User’s Manual... -
Page 4: Figures
Figure 4 Connect the DP /HDMI cable ............20 Figure 5 Connecting USB mouse & keyboard ..........21 Figure 6 Network cable with RJ45 connector ..........21 Figure 7 COM Ports ................... 22 Figure 8 Turning on the system ..............23 QDSP-5001 Series User’s Manual... -
Page 5: Tables
Tables Tables Table 1 QDSP-5001 Series Specification ........... 15 Table 2 BIOS Main Menu ................25 Table 3 Advanced Menu ................26 Table 4 Advanced Menu – Display Configuration ........27 Table 5 Advanced Menu –Power Management Configuration ....28 Table 6 Advanced Menu –CPU Advanced Configuration ...... -
Page 6: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have been ... -
Page 7: When Working Inside A Computer
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 8: Instructions For Lithium Battery
Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e.g. to the collecting points for disposal of batteries) QDSP-5001 Series User’s Manual... -
Page 9: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 10: Warranty Policy
Limited Warranty in any manner whatsoever. Your manufacturer reserves the right to make changes or improvements in any product without incurring any obligation to similarly alter products previously purchased. QDSP-5001 Series User’s Manual... -
Page 11: Limitation Of Liability
Our liability shall in no event exceed the purchase price of the product purchased hereunder. The foregoing limitation of liability shall be equally applicable to any service provided by us or its authorized agent. QDSP-5001 Series User’s Manual... -
Page 12: Maintaining Your Computer
Operating a system at a high altitude (low pressure) can cause electrical problems related to arcing and corona effects. This condition can also cause sealed components with internal pressure, such as electrolytic capacitors, to fail or perform at reduced efficiency. QDSP-5001 Series User’s Manual... - Page 13 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QDSP-5001 Series User’s Manual...
-
Page 14: Chapter 1 Introduction
Chapter 1 Chapter 1 Introduction Overview The QDSP-5001 Series is a fanless Box PC ideal for space critical applications. This ® embedded hardware platform features Intel Celeron Dual Core / Core i Processor, ® Intel HM76 Express chipset, and DDR3 1333/1600 SO-DIMM. It comes with 2.5”... -
Page 15: Product Specifications
1-255 step, can be set with software on Super I/O Watchdog Timer DC 19V Input Power Operating: 0°C to 40°C, 0%-90%, non-condensing Temperature Storage: -20°C to 80°C, 0%-90%, non-condensing Humidity Optional VESA-mount and Wall-Mount Mounting CE, FCC Class A Certifications Table 1 QDSP-5001 Series Specification QDSP-5001 Series User’s Manual... -
Page 16: System Tour
The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs. QDSP-5001 Series User’s Manual... - Page 17 The Line-in jack is designed to take input from a higher-powered sound source. CAUTION This connector do not support hot-swapping. Users should not connect or disconnect their eSATA/USB devices from PC when the system is working. QDSP-5001 Series User’s Manual...
-
Page 18: Figure 2 Rear Panel
The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs. QDSP-5001 Series User’s Manual... -
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Dimension: 220 x 38 x 153.3 mm (W x H x D) Figure 3 Mechanical Dimensions QDSP-5001 Series User’s Manual... -
Page 20: Chapter 2 Getting Started
Setting up your PC ￭ Connect the monitor, mouse and keyboard Connecting the monitor Connect the DP/ HDMI cable from your display to the DP/ HDMI port. 2xDP HDMI Figure 4 Connect the DP /HDMI cable QDSP-5001 Series User’s Manual... -
Page 21: Figure 5 Connecting Usb Mouse & Keyboard
Connecting to a network device Connect one end of a network cable to the LAN port on the system rear panel and the other end to a hub or switch. 2x LAN Figure 6 Network cable with RJ45 connector QDSP-5001 Series User’s Manual... -
Page 22: Figure 7 Com Ports
COM2 RS-232 / 422 / 485 Port DB-9 RS-232 RS-422 Half Duplex RS-485 Full Duplex RS-485 DATA DATA+ RI / +5V* NA / +5V* NA / +5V* NA / +5V* :Pin-9 can be set for +5V output in BIOS setup. QDSP-5001 Series User’s Manual... -
Page 23: Figure 8 Turning On The System
Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power button on the front panel to turn on the system Power button DC Jack Figure 8 Turning on the system QDSP-5001 Series User’s Manual... -
Page 24: Chapter 3 Ami Bios Setup
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. QDSP-5001 Series User’s Manual... -
Page 25: Main Menu
F1: General Help F2: Previous Values Total Size 8192 MB (DDR3) F3: Optimized Defaults Frequency 1333 MHz F4 Save & Exit System date [Mon 12/17/2012] ESC Exit System time [13:22:19] Version 2.15.1234. Copyright (C) 2012, American Megatrends, Inc. QDSP-5001 Series User’s Manual... -
Page 26: Advanced Menu
Version 2.15.1234. Copyright (C) 2012, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled QDSP-5001 Series User’s Manual... -
Page 27: Table 4 Advanced Menu - Display Configuration
Options:32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, 512M, 1024M DVMT Total Gfx Mem Options: 128M, 256M, MAX IGFX – Boot Type Options: VBIOS Default, CRT, HDMI, DP1, DP2 QDSP-5001 Series User’s Manual... -
Page 28: Table 5 Advanced Menu -Power Management Configuration
Options: Power Off, Power On, Last State Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled EUP Power Saving Mode Options: Disabled, Enabled Watchdog Timer Configuration [Disabled] WDT Function ■ Options: Disabled, Enabled QDSP-5001 Series User’s Manual... -
Page 29: Table 6 Advanced Menu -Cpu Advanced Configuration
Options: Disabled, Enabled Hyper Threading Options: Disabled, Enabled VT-d Options: Disabled, Enabled Active Processor Cores Options: All, 1 Limit CPUID Maximum Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Intel ® Virtualization Tech Options: Disabled, Enabled QDSP-5001 Series User’s Manual... -
Page 30: Table 7 Advanced Menu -Amt Configuration
+- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1234. Copyright (C) 2012, American Megatrends, Inc. Intel AMT Options: Disabled, Enabled Un-Configure ME Options: Disabled, Enabled QDSP-5001 Series User’s Manual... -
Page 31: Table 8 Advanced Menu -Trusted Computing
+- Change Opt. F1: General Help F2: Previous Values Current Status Information F3: Optimized Defaults SUPPORT TURNED OFF F4 Save & Exit ESC Exit Version 2.15.1234. Copyright (C) 2012, American Megatrends, Inc. Security Device Support Options: Disable, Enable QDSP-5001 Series User’s Manual... -
Page 32: Table 9 Advanced Menu -Sata Configuration
Options: Disabled, Enabled SATA Mode Selection Options: IDE, AHCI SATA Controller Speed Options: Default, Gen 1, Gen 2, Gen 3 Port 0, 1, 4 Options: Disabled, Enabled SATA Device Type Options: Hard Disk Driver, Solid State Driver QDSP-5001 Series User’s Manual... -
Page 33: Table 10 Advanced Menu - Intel Rapid Start Technology
+- Change Opt. F1: General Help Secure Mode Extensions (SMX) Enabled F2: Previous Values Intel TXT (LT) Support [Disabled] F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1234. Copyright (C) 2012, American Megatrends, Inc. QDSP-5001 Series User’s Manual... -
Page 34: Table 12 Advanced Menu -Usb Configuration
USB 3.0 Support Options: Disabled, Enabled XHCI hand-off Options: Disabled, Enabled EHCI hand-off Options: Disabled, Enabled USB Mass Storage Driver Support Options: Disabled, Enabled XHCI Pre-Boot Driver Options: Disabled, Enabled XHCI Mode Options: Auto, Smart Auto, Disabled, Enabled QDSP-5001 Series User’s Manual... -
Page 35: Table 13 Advanced Menu - Super Io Configuration
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port Type Options: RS232, RS422, RS485 COM1 Pin9 Definition Options: RI, +5V QDSP-5001 Series User’s Manual... -
Page 36: Table 15 Advanced Menu -Super Io Configuration - Serial Port
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port Type Options: RS232, RS422, RS485 COM2 Pin9 Definition Options: RI, +5V QDSP-5001 Series User’s Manual... -
Page 37: Table 16 Advanced Menu -H/W Monitor
: +1.517 V +5VDUAL : +5.120 V +VIN : +19.448 V +3.3VSB : +3.360 V Version 2.15.1234. Copyright (C) 2012, American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80 C, 85 C, 90 C, 95 C QDSP-5001 Series User’s Manual... -
Page 38: Boot Menu
Options: Disabled, Enabled Bootup Numlock State Options: On, Off UEFI Boot Options: Disabled, Enabled Boot Option #1 Options: P1: INTEL SSDSA2M040G2GC, Disabled Hard Drive BBS Priorities ■ Boot Option #1 [ INTEL SSDSA2M040G2GC ] Options: INTEL SSDSA2M040G2GC, Disabled QDSP-5001 Series User’s Manual... -
Page 39: Security Menu
The password length must be in the following range: F3: Optimized Defaults Minimum Length F4 Save & Exit Maximum length ESC Exit Administrator Password User Password HDD Security Configuration P1 : INTEL SSDSA2 Version 2.15.1234. Copyright (C) 2012, American Megatrends, Inc. QDSP-5001 Series User’s Manual... -
Page 40: Save & Exit Menu
Save Options Enter: Select Save Changes +- Change Opt. Discard Changes F1: General Help Restore Defaults F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1234. Copyright (C) 2012, American Megatrends, Inc. QDSP-5001 Series User’s Manual... - Page 41 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QDSP-5001 Series User’s Manual...
-
Page 42: Chapter 4 Driver Installation
After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system. For other operating systems, please contact with your nearest Quanmax Sale. QDSP-5001 Series User’s Manual...
