Summary of Contents for Quanmax QDSP-0200 Series

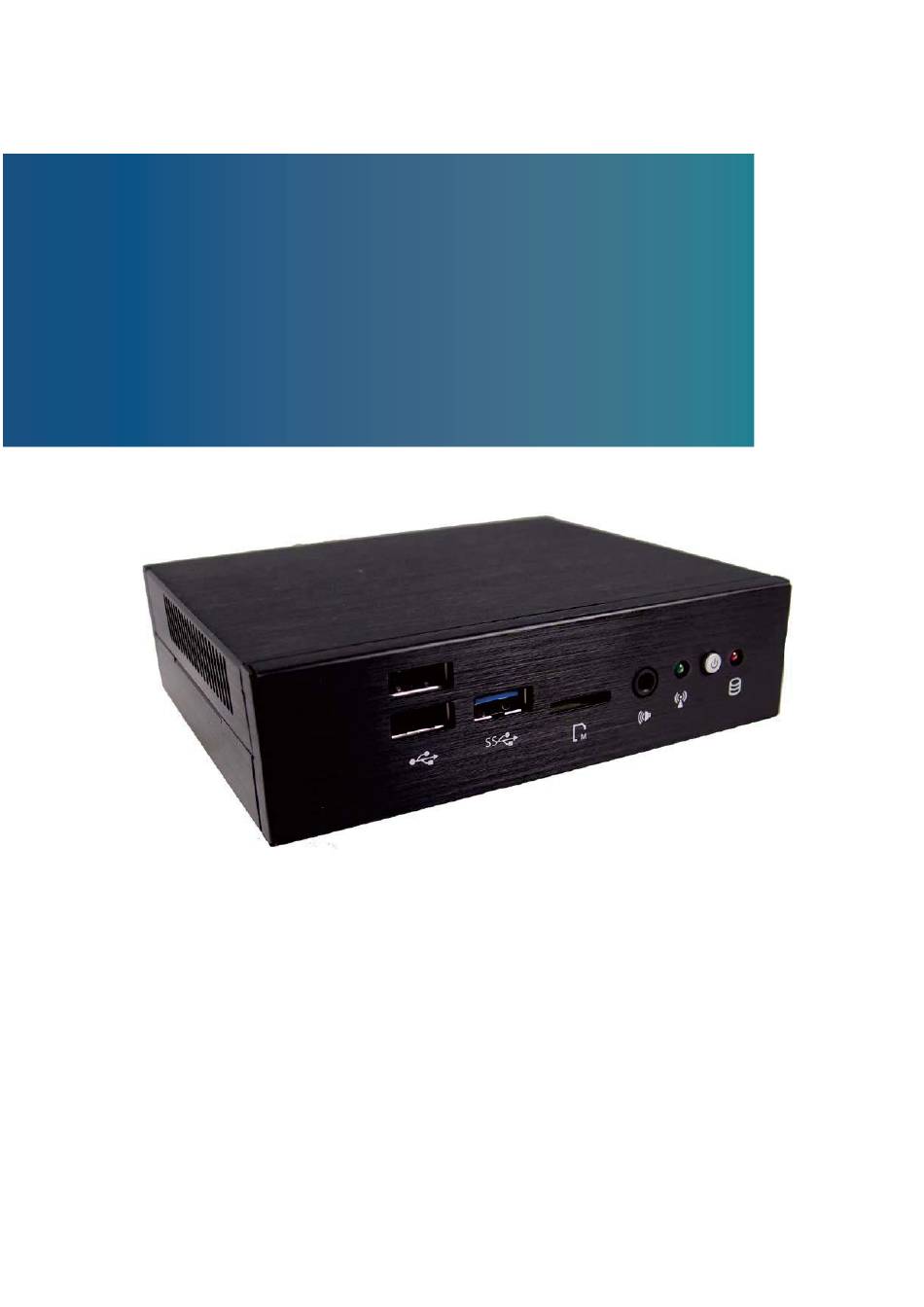

- Page 1 QDSP-0200 Series ® 0.6-Liter Box PC with Intel Bay Trail Dual Core / Quad Core Processor User’s Guide...
-
Page 2: Table Of Contents
Chapter 3 AMI BIOS Setup ..................24 Overview..................... 24 Main Menu ..................25 Advanced Menu.................. 27 Power Menu..................34 Security Menu..................35 Boot Menu ..................36 Save & Exit Menu ................37 Chapter 4 Driver Installation .................. 39 QDSP-0200 Series User’s Manual... -
Page 3: Figures & Tables
Figure 7 Turning on the system ..............21 Figure 8 VESA mounting................22 Figure 9 Use a Kensington lock ..............23 Table 1 QDSP-0200 Series product specifications........12 Table 2 BIOS Main Menu (QDSP-0200) ............ 25 Table 3 BIOS Main Menu (QDSP-0210) ............ 26 Table 4 BIOS Main Menu (QDSP-0211)............. -
Page 4: Safety Instructions
Turn off system power, turn off the power supply, and then disconnect the power cord from its source before removing the chassis cover. Turning off the system power switch does not remove power to components. QDSP-0200 Series User’s Manual... -
Page 5: When Working Inside A Computer
ESD procedure, which can include wrist straps and smocks, when servicing equipment. You can also take the following steps to prevent damage from electrostatic discharge (ESD): When unpacking a static-sensitive component from its shipping carton, do not QDSP-0200 Series User’s Manual... -
Page 6: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QDSP-0200 Series has the following voltage ratings: Input: 100~240 VAC, 50~60 Hz Output: 40W, +19VDC / 2.1A output... -
Page 7: Preface
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the QDSP-0200 Series User’s Manual... -
Page 8: Maintaining Your Computer
However, if a system is located in an unusually humid location, a dehumidifier can be used to maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for QDSP-0200 Series User’s Manual... -
Page 9: Power Protection
UPS system. UPS systems range in price from a few hundred dollars to several thousand dollars, with the more expensive unit s allowing you to run larger systems for a QDSP-0200 Series User’s Manual... - Page 10 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QDSP-0200 Series User’s Manual...
-
Page 11: Chapter 1 Introduction

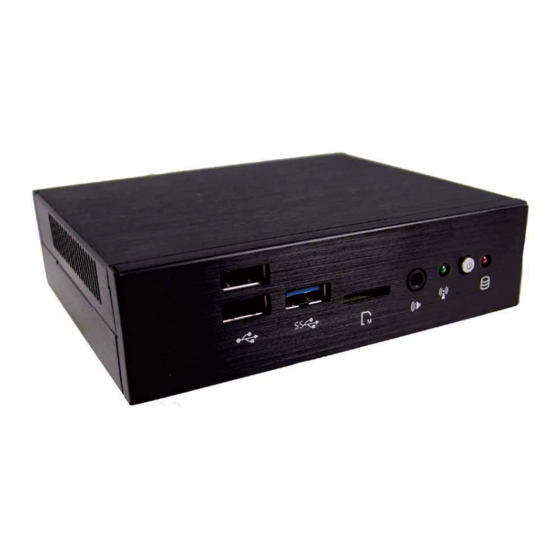

Introduction Overview The QDSP-0200 Series is a Box PC with a volume of just 0.6-liter that is ideal for space critical applications. This embedded hardware platform is designed with Intel® Bay Trail Atom™ Dual Core E3825 / Celeron® Quad Core J1900 Processor which provides excellent performance. -
Page 12: Product Specifications
130 x 111 x 35 mm / 5.12" x 4.37" x 1.38" (W x D x H) Weight 440 g / 0.97 lb Mounting VESA mount Certifications CE, FCC Class A Table 1 QDSP-0200 Series product specifications QDSP-0200 Series User’s Manual... -
Page 13: System Tour
Micro SD Card Cage The Micro SD Card Cage provides users with expandable memory space suitable for multimedia file retrieval, including images, animations and movie clips, as well as data logging applications. QDSP-0200 Series User’s Manual... - Page 14 The WiFi LED will light when the WiFi is on. HDD LED The hard disk LED blinks when data is being written into or read from the HDD. Power Button The power button allows powering ON and OFF the system. (with Power LED) QDSP-0200 Series User’s Manual...
-
Page 15: Figure 2 Rear Panel
The slot is used for attaching a lock-and-cable apparatus. Locks are generally secured in place with a key or combination lock attached to a rubberized metal cable. HDMI HDMI connector for display output D-Sub 15 pin VGA connector for display output QDSP-0200 Series User’s Manual... - Page 16 RJ-45 Connector supports RS-232. Wireless / 3G 1x reserved holes for wireless/ 3G antenna connection. Clear CMOS 1x reset button for clear CMOS. External Power Button The external power button allows powering ON and OFF the system. QDSP-0200 Series User’s Manual...
-
Page 17: Mechanical Dimensions
Chapter 1 Mechanical Dimensions QDSP-200 QDSP-210 QDSP-211 130 x 35 x 111 mm (WxHxD) Figure 3 Mechanical Dimensions QDSP-0200 Series User’s Manual... -
Page 18: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your PC Connecting the monitor Connect the VGA / HDMI cable from your display to the VGA / HDMI port. HDMI Figure 4 VGA / HDMI QDSP-0200 Series User’s Manual... -
Page 19: Figure 5 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your QDSP-0200 Series does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. USB2.0 USB3.0 QDSP-200 QDSP-210 QDSP-211 Figure 5 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 20: Figure 6 Rj45 Connector
Chapter 2 Connecting to a network device Connect one end of a network cable to the LAN port on the system rear panel and the other end to a hub or switch. RJ45 Figure 6 RJ45 connector QDSP-0200 Series User’s Manual... -
Page 21: Figure 7 Turning On The System
Chapter 2 Turning on the system Connect the power adapter cable to the DC jack (DC IN) of QDSP-0200 Series Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system... -
Page 22: Mounting Your Pc To A Monitor
To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. The VESA mounting kit is optional. Place the QDSP-0200 Series on the VESA mounting bracket and make sure the bracket is hooked with the fins of the system housing. -
Page 23: Anti-Theft Protection With A Kensington Lock
Chapter 2 Anti-theft protection with a Kensington Lock The QDSP-0200 Series has a Kensington lock slot for the Kensington MicroSaver. With the Kensington MicroSaver, a sturdy steel cable, you can attach your QDSP-0200 Series to a stationary object and protect your PC from theft. -
Page 24: Chapter 3 Ami Bios Setup
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. QDSP-0200 Series User’s Manual... -
Page 25: Main Menu
2048 MB (DDR3L) F2: Previous Values Frequency 1067 MHz F3: Optimized Defaults F4 Save & Exit System date [Fri 01/10/2014] System time [16:48:14] ESC Exit Access Level Administrator Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. QDSP-0200 Series User’s Manual... -
Page 26: Table 3 Bios Main Menu (Qdsp-0210)
2048 MB (DDR3L) F2: Previous Values Frequency 1333 MHz F3: Optimized Defaults F4 Save & Exit System date [Fri 01/10/2014] System time [16:48:14] ESC Exit Access Level Administrator Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. QDSP-0200 Series User’s Manual... -
Page 27: Advanced Menu
F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. Onboard LAN1 Controller Options: Disabled, Enabled Onboard LAN1 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled QDSP-0200 Series User’s Manual... -
Page 28: Table 6 Advanced Menu – Display Configuration
Options: 128MB, 256MB, 512MB DVMT Pre-Allocated Options: 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, 512M DVMT Total Gfx Mem Options: 128MB, 256MB, Max Primary IGFX Boot Display Options: VBIOS Default, CRT, HDMI QDSP-0200 Series User’s Manual... -
Page 29: Table 7 Advanced Menu – Super Io Configuration
ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. Serial Port Options: Disabled, Enabled Change Settings Options: Auto, IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; Serial Port 1 Type Options: RS232, RS422, RS485 QDSP-0200 Series User’s Manual... -
Page 30: Table 9 Advanced Menu – Cpu Chipset Configuration
ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. EIST Options: Disabled, Enabled Turbo Mode Options: Disabled, Enabled Limit CPUID Maximum Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Intel Virtualization Technology Options: Disabled, Enabled QDSP-0200 Series User’s Manual... -
Page 31: Table 10 Advanced Menu – Sata Configuration
F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. Serial-ATA (SATA) Options: Enabled, Disabled SATA Mode Options: IDE Mode, AHCI Mode Port 1 Options: Enabled, Disabled QDSP-0200 Series User’s Manual... -
Page 32: Table 11 Advanced Menu – Usb Configuration
Legacy USB Support Options: Enabled, Disabled, Auto XHCI Legacy Support Options: Enabled, Disabled XHCI Hand-off Options: Enabled, Disabled EHCI Hand-off Options: Disabled, Enabled USB Mass Storage Driver Support Options: Disabled, Enabled XHCI Mode Options: Enabled, Smart Auto QDSP-0200 Series User’s Manual... -
Page 33: Table 12 Advanced Menu – H/W Monitor
: +0.869 V +VIN : +12.268 V F1: General Help : +5.066 V F2: Previous Values +VMEM : +1.357 V F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. QDSP-0200 Series User’s Manual... -
Page 34: Power Menu
Power Saving Mode Options: Disabled, EUP Enabled Resume By PCIE Device Options: Disabled, Enabled Resume By Ring Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled WatchDog Timer Configuration WDT Funtion Options: Disabled, Enabled QDSP-0200 Series User’s Manual... -
Page 35: Security Menu
Enter: Select Minimum Length +- Change Opt. Maximum length F1: General Help F2: Previous Values Administrator Password F3: Optimized Defaults User Password F4 Save & Exit ESC Exit Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. QDSP-0200 Series User’s Manual... -
Page 36: Boot Menu
Version 2.16.1242. Copyright (C) 2013, American Megatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off Keyboard Detect Warning Options: Enabled, Disabled CSM Support Options: Enabled, Disabled Boot Option Filter Options: UEFI and Legacy, Legacy only, UEFI only QDSP-0200 Series User’s Manual... -
Page 37: Save & Exit Menu
Load Optimal Default values for all the setup values. This option allows you to load optimal default values for each of the parameters on the Setup menus, which will provide the best performance settings for your system. The F9 key can be used for QDSP-0200 Series User’s Manual... - Page 38 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QDSP-0200 Series User’s Manual...
-
Page 39: Chapter 4 Driver Installation
You can download the drivers for the QDSP-0200 Series from our website and install as instructed there. For other operating systems, please contact us. QDSP-0200 Series User’s Manual...
