- Page 1 QDSP-1000 Series ® 0.6-Liter Box PC with Intel Celeron Processor 1037U User’s Guide QDSP-1000 Series User’s Manual...
- Page 2 Quanmax, nor the rights of others. Quanmax is a registered trademark of Quanmax. All trademarks, registered trademarks, and trade names used in this user’s guide are the property of their respective owners.
-
Page 3: Table Of Contents
Chapter 3 AMI BIOS Setup ..................23 Overview ..................... 23 Main Menu ..................24 Advanced Menu .................. 25 Boot Menu ..................32 Security Menu ..................33 Save & Exit Menu ................33 Chapter 4 D river Installation .................. 35 QDSP-1000 Series User’s Manual... -
Page 4: Figures & Tables
Figure 7 Turning on the system ..............20 Figure 8 VESA mounting ................21 Figure 9 Use a Kensington lock ..............22 Table 1 QDSP-1000 series product specification ........14 Table 2 BIOS Main Menu ................24 Table 3 Advanced Menu ................25 Table 4 Advanced Menu –... -
Page 5: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have ... -
Page 6: When Working Inside A Computer
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 7: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QDSP-1000 series has the following voltage ratings: Input: 100-240 VAC, 50-60 Hz ... -
Page 8: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 9: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 10: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 11 20 percent below the normal AC line voltage level. Line Conditioner Line conditioners go beyond the overvoltage protection of surge protectors. QDSP-1000 Series User’s Manual...
- Page 12 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QDSP-1000 Series User’s Manual...
-
Page 13: Chapter 1 Introduction

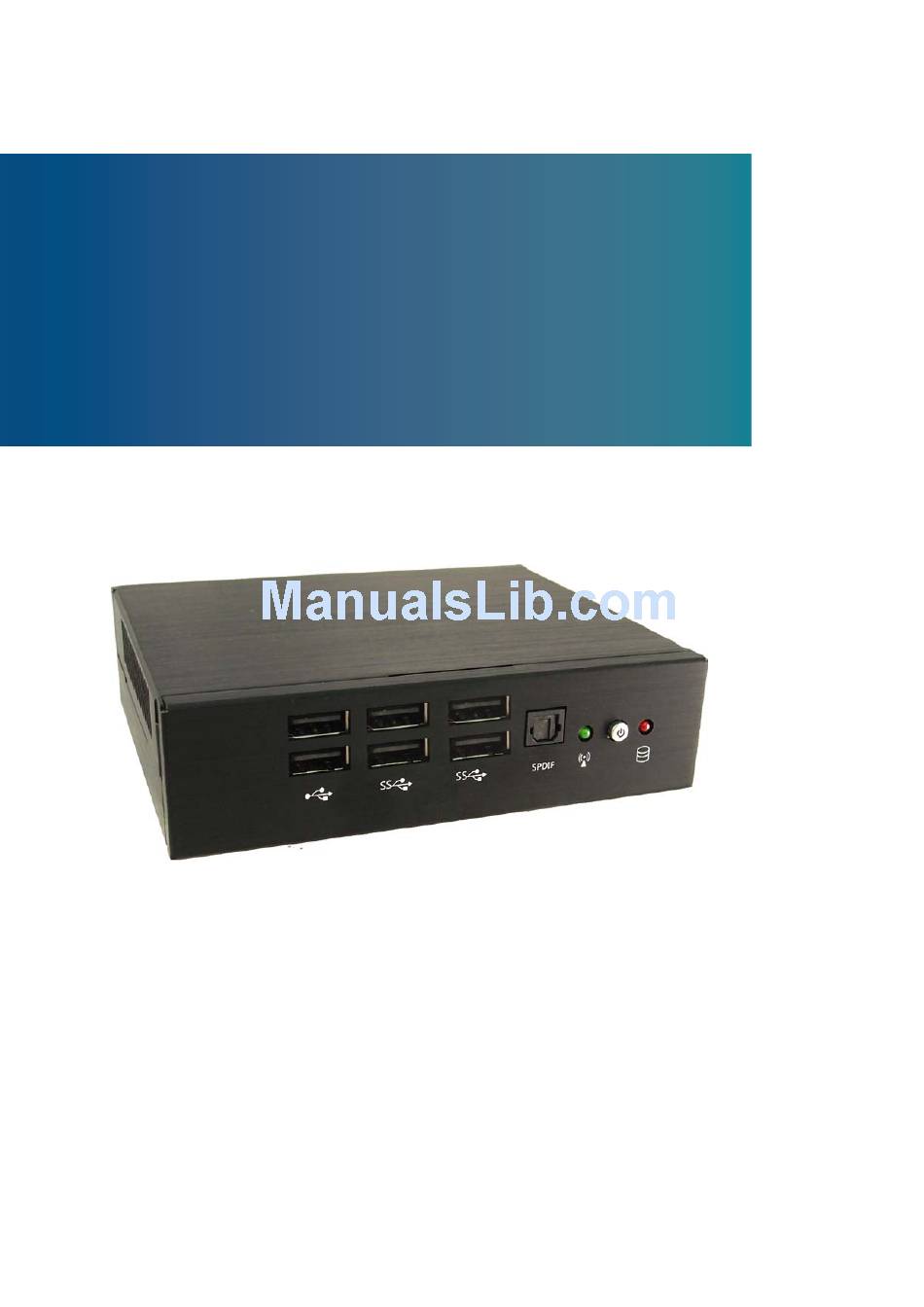

Chapter 1 Introduction Overview The QDSP-1000 Series is a Box PC with a volume of just 0.6-liter that is ideal for ® space critical applications. This embedded hardware platform is designed with Intel Celeron Processor 1037U which provides excellent performance. -
Page 14: Product Specifications
Operating: 0°C to 50°C, 0%-90%, non-condensing Humidity Storage: -20°C to 80°C, 0%-90%, non-condensing Dimensions 130 x 35 x 111 mm (WxHxD) Weight 440 g Mounting VESA mount ( Optional) Certifications CE, FCC Class A Table 1 QDSP-1000 series product specification QDSP-1000 Series User’s Manual... -
Page 15: System Tour
The hard disk LED blinks when data is being written into or read from the HDD. S/PDIF S/PDIF output for carrying digital audio signals out to the device. Power Switch The power switch allows powering ON and OFF the system. QDSP-1000 Series User’s Manual... -
Page 16: Figure 2 Rear Panel
1x reset button for clear CMOS. Kensington Lock Slot The slot is used for attaching a lock-and-cable apparatus. Locks are generally secured in place with a key or combination lock attached to a rubberized metal cable. QDSP-1000 Series User’s Manual... -
Page 17: Mechanical Dimensions
Chapter 1 Mechanical Dimensions 130 x 35x 111mm (WxHxD) Figure 3 Mechanical Dimensions QDSP-1000 Series User’s Manual... -
Page 18: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your PC Connecting the monitor Connect the DP/ HDMI cable from your display to the DP/ HDMI port. HDMI Figure 4 DP/ HDMI QDSP-1000 Series User’s Manual... -
Page 19: Figure 5 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your QDSP-1000 series does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. USB 2.0 Figure 5 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 20: Figure 7 Turning On The System
Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system On/Off DC Jack Figure 7 Turning on the system QDSP-1000 Series User’s Manual... -
Page 21: Mounting Your Pc To A Monitor
To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. The VESA mounting kit is optional. Place the QDSP-1000 series on the VESA mounting bracket and make sure the bracket is hooked with the fins of the system housing. -
Page 22: Anti-Theft Protection With A Kensington Lock
Chapter 2 Anti-theft protection with a Kensington Lock The QDSP-1000 series has a Kensington lock slot for the Kensington MicroSaver. With the Kensington MicroSaver, a sturdy steel cable, you can attach your QDSP-1000 series to a stationary object and protect your PC from theft. -
Page 23: Chapter 3 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 24: Main Menu
F2: Previous Values F3: Optimized Defaults Total Size 2048 MB (DDR3) F4 Save & Exit Frequency 1333 MHz ESC Exit System date [Tue 01/01/2013] System time [00:05:23] Access Level Administrator Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. QDSP-1000 Series User’s Manual... -
Page 25: Advanced Menu
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled QDSP-1000 Series User’s Manual... -
Page 26: Table 4 Advanced Menu – Display Configuration
320 M , 352 M , 384 M , 416 M , 448 M , 480 M , 512M , 1024M DVMT Total Gfx Mem Options: 128MB, 256MB, MAX IGFX-Boot Type Options: VBIOS Default, DP1,DP2, HDMI QDSP-1000 Series User’s Manual... -
Page 27: Table 5 Advanced Menu –Power Management Configuration
Options: Power Off, Power On, Last State Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled EUP Power Saving Mode Options: Disabled, Enabled Watchdog Timer Configuration WDT Function 【Disabled】 ■ Options: Disabled, Enabled QDSP-1000 Series User’s Manual... -
Page 28: Table 6 Advanced Menu –Cpu Advanced Configuration
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. EIST Options: Disabled, Enabled Active Processor Cores Options: All, 1 Limit CPUID Maximum Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Intel Virtualization Technology Options: Disabled, Enabled QDSP-1000 Series User’s Manual... -
Page 29: Table 7 Advanced Menu –Sata Configuration
S a v e & E x i t A d v a n c e d Intel (R) Rapid Start Technology [Disabled] Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc. Intel (R) Rapid Start Technology Options: Disabled, Enabled QDSP-1000 Series User’s Manual... -
Page 30: Table 9 Advanced Menu –Usb Configuration
F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. Legacy USB Support Options: Disabled, Enabled, Auto EHCI Hand-off Options: Disabled, Enabled USB Mass Storage Driver Support Options: Disabled, Enabled QDSP-1000 Series User’s Manual... -
Page 31: Table 10 Advanced Menu –H/W Monitor
: +3.376V +3.3V : +3.376V F4 Save & Exit VBAT : +3.360V ESC Exit Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80 ºC , 85 ºC, 90 ºC, 95 ºC QDSP-1000 Series User’s Manual... -
Page 32: Boot Menu
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off UEFI Boot Options: Disabled, Enabled Boot Option #1 Options: SamSung HM160HI, Disabled Boot Option Priorities Options: SamSung HM160HI, Disabled QDSP-1000 Series User’s Manual... -
Page 33: Security Menu
Enter: Select Save Options +- Change Opt. Save Changes F1: General Help Discard Changes F2: Previous Values F3: Optimized Defaults Restore Defaults F4 Save & Exit ESC Exit Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. QDSP-1000 Series User’s Manual... - Page 34 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QDSP-1000 Series User’s Manual...
-
Page 35: Chapter 4 D River Installation
After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system. You can download the drivers for the QDSP-1000 Series from the Quanmax website www.quanmax.com and install as instructed there. For other operating systems, please contact Quanmax.
