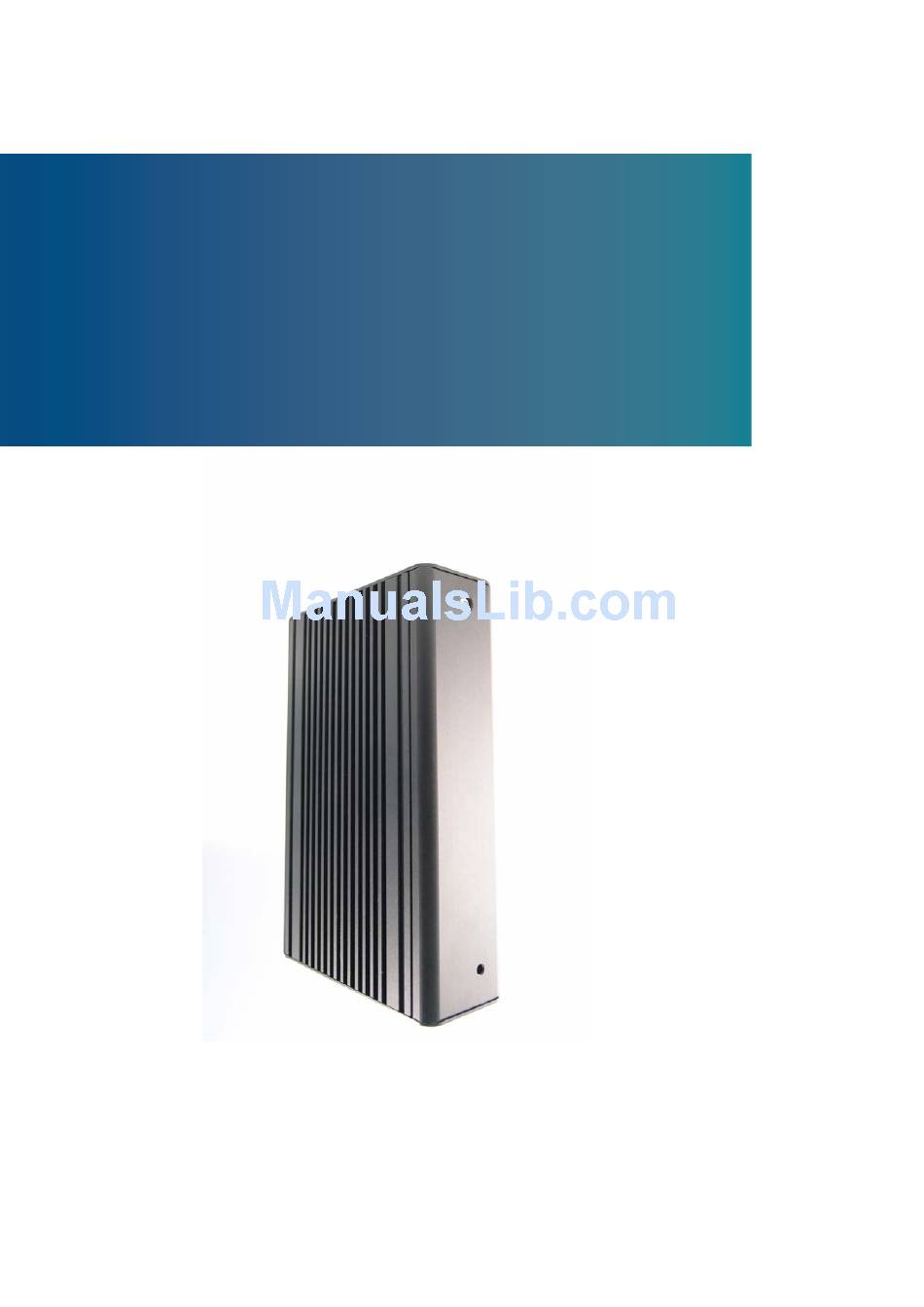

- Page 1 QBOX-100S ® Fanless Box PC w/ Intel Atom™ Processor N2600 User’s Guide QBOX-100S User’s Manual...
- Page 2 © 2012 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Chapter 3 AMI BIOS Setup ..................24 Overview ....................24 Main Menu ....................25 Advanced Menu ..................26 Boot Menu ....................30 Security Menu .................... 31 Save & Exit Menu ..................31 Chapter 4 Driver Installation .................. 33 QBOX-100S User’s Manual... -
Page 4: Figures
Figure 4 Connect USB mouse & keyboard ..........21 Figure 5 RJ45 connector ................21 Figure 6 Turning on the system ..............22 Figure 7 VESA mounting (1) ..............23 Figure 8 VESA mounting (2) ..............23 QBOX-100S User’s Manual... -
Page 5: Tables
Tables Tables Table 1 QBOX-100S Specification ............. 16 Table 2 BIOS Main Menu ................25 Table 3 Advanced Menu ................26 Table 4 Advanced Menu – Display Configuration ........26 Table 5 Advanced Menu –Power Management Configuration ....27 Table 6 Advanced Menu –CPU Advanced Configuration ......28 Table 7 Advanced Menu –SATA Configuration ........... -
Page 6: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken;... -
Page 7: When Working Inside A Computer
Also, before connecting a cable, make sure both connectors are correctly oriented and aligned. CAUTION Do not attempt to service the system yourself except as explained in this user’s guide. Follow installation and troubleshooting instructions closely. QBOX-100S User’s Manual... -
Page 8: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 9: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QBOX-100S has the following voltage ratings: Input: 100-240 VAC, 50-60 Hz ... -
Page 10: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 11: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 12: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 13 Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power. QBOX-100S User’s Manual...
- Page 14 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QBOX-100S User’s Manual...
-
Page 15: Chapter 1 Introduction

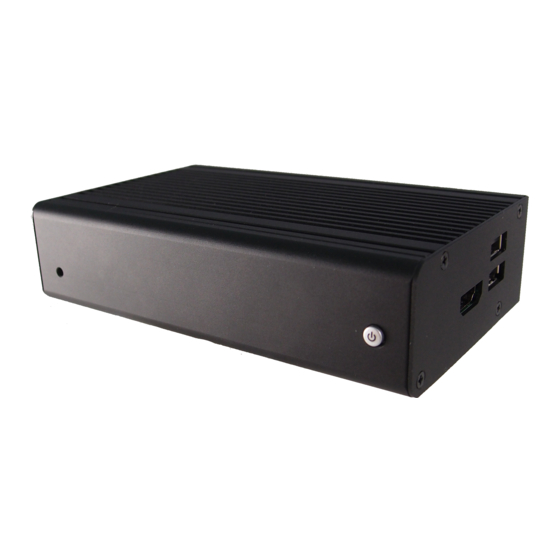

Chapter 1 Chapter 1 Introduction Overview The QBOX-100S is a fanless digital signage player ideal for space critical applications. ® This embedded hardware platform features Intel Atom™ Processor N2600 (1M ® Cache, 1.60 GHz), Intel NM10 Express chipset, and DDR3 800/1066 SO-DIMM. -
Page 16: Product Specifications
132.60 x 80.94 x 33mm ( W x D x H ) OS Support Windows 7 Power DC 12V-19V Input Operating: 0°C to 50°C Environment Storage: -20°C to 80°C Humidity: 0% to 90% Certifications CE, FCC Class A Table 1 QBOX-100S Specification QBOX-100S User’s Manual... -
Page 17: System Tour
Refer to the figure below to identify the components of the system. IOs Figure 1 IOs Power Button The power button allows powering ON and OFF the system. HDD LED The hard disk LED blinks when data is being written into or read from the HDD. QBOX-100S User’s Manual... - Page 18 The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network. HDMI HDMI connector for display output D-Sub 15 pin VGA connector for display output Reset Button 1x reset button for clear CMOS. QBOX-100S User’s Manual...
-
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Dimension: 132.60 x 80.94 x 33mm ( W x D x H ) Figure 2 Mechanical Dimensions QBOX-100S User’s Manual... -
Page 20: Chapter 2 Getting Started
HDMI Figure 3 VGA/ HDMI NOTE When the system reboots without connecting the DP/VGA/HDMI, there might be no image on screen when you insert the DP/VGA/HDMI cable. Please pressing <Ctrl>+<Alt>+<F4> simultaneously to show the image on screen. QBOX-100S User’s Manual... -
Page 21: Figure 4 Connect Usb Mouse & Keyboard
Chapter 2 Connect USB mouse & keyboard Your QBOX-100S does not come with a keyboard and mouse connector, but you can use any USB keyboard or mouse to connect with your computer. eSATA Figure 4 Connect USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 22: Figure 6 Turning On The System
Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system DC Jack Power Switch Figure 6 Turning on the system QBOX-100S User’s Manual... -
Page 23: Mounting Your Pc To A Monitor
Figure 7 VESA mounting (1) NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. Place the QBOX-100S onto the monitor and secure it with the four screws properly on both sides of VESA mount kit as shown below. -
Page 24: Chapter 3 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 25: Main Menu
F1: General Help F2: Previous Values Total Size 1024 MB F3: Optimized Defaults Frequency 800 MHz (DDR3) F4 Save & Exit System date [Wed 02/01/2012] ESC Exit System time [00:51:23] Version 2.15.1226. Copyright (C) 2012, American Megatrends, Inc. QBOX-100S User’s Manual... -
Page 26: Advanced Menu
IGFX – Boot Type [VBIOS Default] F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1226. Copyright (C) 2012, American Megatrends, Inc. Fixed Graphics Memory Size Options: 128MB, 256MB IGFX – Boot Type Options: VBIOS Default, CRT, HDMI QBOX-100S User’s Manual... -
Page 27: Table 5 Advanced Menu -Power Management Configuration
ACPI Sleep State Options: Suspend Disabled, S1 (CPU Stop Clock), S3 (Suspend to RAM) Restore AC Power Loss Options: Power Off, Power On, Last State Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled QBOX-100S User’s Manual... -
Page 28: Table 6 Advanced Menu -Cpu Advanced Configuration
SATA Port 2 Not Present Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1226. Copyright (C) 2012, American Megatrends, Inc. Configure SATA as Options: IDE, AHCI QBOX-100S User’s Manual... -
Page 29: Table 8 Advanced Menu -Trusted Computing
Options: Disabled, Enabled, Auto EHCI hand-off Options: Disabled, Enabled USB transfer time-out Options: 1 Sec, 5 Sec, 10 Sec, 20 Sec Device reset time-out Options: 10 Sec, 20 Sec, 30 Sec, 40 Sec Device Power-up delay Options: Auto, Manual QBOX-100S User’s Manual... -
Page 30: Boot Menu
Boot Option Priorities F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1226. Copyright (C) 2012, American Megatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off QBOX-100S User’s Manual... -
Page 31: Security Menu
Discard Changes and Reset Enter: Select Save Options +- Change Opt. Save Changes F1: General Help Discard Changes F2: Previous Values F3: Optimized Defaults Restore Defaults F4 Save & Exit ESC Exit Version 2.15.1226. Copyright (C) 2012, American Megatrends, Inc. QBOX-100S User’s Manual... - Page 32 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QBOX-100S User’s Manual...
-
Page 33: Chapter 4 Driver Installation
Chapter 4 Driver Installation If your QBOX-100S does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system.
