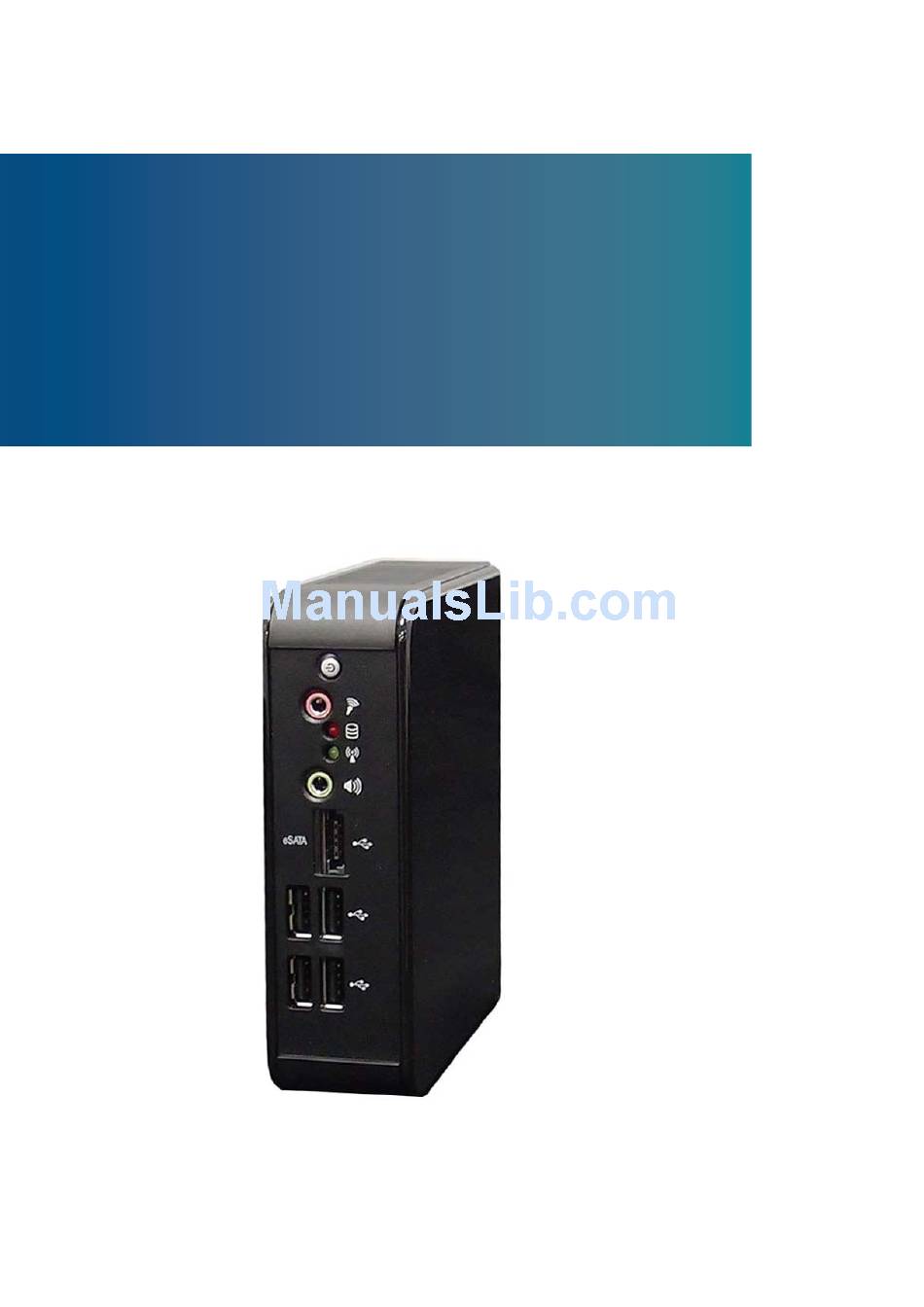

- Page 1 QutePC-1600 ® 0.6-Liter Box PC with Intel Atom D2550 Processor User’s Guide QutePC-1600 User’s Manual...
- Page 2 Quanmax, nor the rights of others. Quanmax is a registered trademark of Quanmax. All trademarks, registered trademarks, and trade names used in this user’s guide are the property of their respective owners.
-
Page 3: Table Of Contents
Chapter 3 AMI BIOS Setup ..................24 Overview ..................... 24 Main Menu ..................25 Advanced Menu .................. 26 Boot Menu ..................33 Security Menu ..................34 Save & Exit Menu ................34 Chapter 4 Driver Installation .................. 36 QutePC-1600 User’s Manual... -
Page 4: Figures & Tables
Figure 7 Turning on the system ..............21 Figure 8 VESA mounting ................22 Figure 9 Use a Kensington lock ..............23 Table 1 QutePC-1600 product specifications ..........14 Table 2 BIOS Main Menu ................25 Table 3 Advanced Menu ................26 Table 4 Advanced Menu –... -
Page 5: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken;... -
Page 6: When Working Inside A Computer
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 7: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QutePC-1600 has the following voltage ratings: Input: 100-240 VAC, 50-60 Hz ... -
Page 8: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 9: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 10: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. -
Page 11: Power Protection
20 percent below the normal AC line voltage level. Line Conditioner Line conditioners go beyond the overvoltage protection of surge protectors. QutePC-1600 User’s Manual... - Page 12 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QutePC-1600 User’s Manual...
-
Page 13: Chapter 1 Introduction
Chapter 1 Chapter 1 Introduction Overview The QutePC-1600 is a Box PC with a volume of just 0.6-liter that is ideal for space ® critical applications. This embedded hardware platform is designed with Intel Atom D2550 Processor which provides with excellent performance. System is supported ®... -
Page 14: Product Specifications
Humidity Storage: -20°C to 80°C, 0%-90%, non-condensing Dimensions 130 x 38.5 x 115.86 mm (WxHxD) Weight 550 g Others Kensington Lock Support Mounting VESA mount, Desktop stand Certifications CE, FCC Class A Table 1 QutePC-1600 product specifications QutePC-1600 User’s Manual... -
Page 15: System Tour
This connector do not support hot-swapping. Users should not connect or disconnect their eSATA devices from PC when the system is working. MIC-IN The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings. QutePC-1600 User’s Manual... - Page 16 The WiFi LED will light when the WiFi is on. HDD LED The hard disk LED blinks when data is being written into or read from the HDD. Power Switch The power switch allows powering ON and OFF the system. QutePC-1600 User’s Manual...
-
Page 17: Figure 2 Rear Panel
DP is a display interface used to connect a video source to a display device such as a computer monitor or a television set. QutePC-1600 User’s Manual... -
Page 18: Mechanical Dimensions
Chapter 1 Mechanical Dimensions 130 x 38.5 x 115.86 mm (WxHxD) Figure 3 Mechanical Dimensions QutePC-1600 User’s Manual... -
Page 19: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your PC Connecting the monitor Connect the DP/ VGA/ HDMI cable from your display to the DP/ VGA/ HDMI port. HDMI Figure 4 DP/ VGA/ HDMI QutePC-1600 User’s Manual... -
Page 20: Figure 5 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your QutePC-1600 does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. eSATA/USB Figure 5 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 21: Figure 6 Rj45 Connector
Figure 6 RJ45 connector Turning on the system Connect the power adapter cable to the DC jack (DC IN) of the QutePC-1600 Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system... -
Page 22: Mounting Your Pc To A Monitor
To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. The VESA mounting kit is optional. Place the QutePC-1600 on the VESA mounting bracket and make sure the bracket is hooked with the fins of the system housing. -
Page 23: Anti-Theft Protection With A Kensington Lock
Chapter 2 Anti-theft protection with a Kensington Lock The QutePC-1600 has a Kensington lock slot for the Kensington MicroSaver. With the Kensington MicroSaver, a sturdy steel cable, you can attach your QutePC-1600 to a stationary object and protect your PC from theft. -
Page 24: Chapter 3 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 25: Main Menu
+- Change Opt. Frequency 1067 MHz (DDR3) F1: General Help System date [Wed 03/07/2012] F2: Previous Values System time [10:56:23] F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. QutePC-1600 User’s Manual... -
Page 26: Advanced Menu
F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Onboard LAN Controller Options: Disabled, Enabled Onboard LAN Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled QutePC-1600 User’s Manual... -
Page 27: Table 4 Advanced Menu – Display Configuration
F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Fixed Graphics Memory Size Options: 128MB, 256MB IGFX – Boot Type Options: VBIOS Default, CRT, DP, HDMI QutePC-1600 User’s Manual... -
Page 28: Table 5 Advanced Menu –Power Management Configuration
Options: Power Off, Power On, Last State Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled EUP Power Saving Mode Options: Disabled, Enabled Watchdog Timer Configuration WDT Function ■ Options: Disabled, Enabled QutePC-1600 User’s Manual... -
Page 29: Table 6 Advanced Menu –Cpu Advanced Configuration
F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Hyper-Treading Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Limit CPUID Maximum Options: Disabled, Enabled EIST Options: Disabled, Enabled QutePC-1600 User’s Manual... -
Page 30: Table 7 Advanced Menu –Sata Configuration
Current Status Information Enter: Select Reset Required +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. TPM Support Options: Disable, Enable QutePC-1600 User’s Manual... -
Page 31: Table 9 Advanced Menu –Usb Configuration
F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. Legacy USB Support Options: Disabled, Enabled, Auto EHCI hand-off Options: Disabled, Enabled Mass Storage Device Options: Auto, Floppy, Forced FDD, Hard Disk, CD-ROM QutePC-1600 User’s Manual... -
Page 32: Table 10 Advanced Menu –H/W Monitor
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80 ºC , 85 ºC, 90 ºC, 95 ºC CPU FAN Configuration ■ Fan Setting Options: Manual Mode, Auto Mode ■ Auto Mode: 1st Boundary Temperature 1st FAN speed QutePC-1600 User’s Manual... -
Page 33: Boot Menu
Options: Disabled, Enabled Bootup Numlock State Options: On, Off Boot Option #1 Options: UEFI, SATA PM: Disabled Boot Option #2 Options: UEFI, SATA PM: Disabled Hard Drive BBS Priorities ■ Boot Option #1 Options: UEFI, SATA PM: Disabled QutePC-1600 User’s Manual... -
Page 34: Security Menu
Discard Changes and Reset Enter: Select Save Options +- Change Opt. Save Changes F1: General Help Discard Changes F2: Previous Values F3: Optimized Defaults Restore Defaults F4 Save & Exit ESC Exit Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc. QutePC-1600 User’s Manual... - Page 35 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QutePC-1600 User’s Manual...
-
Page 36: Chapter 4 Driver Installation
Chapter 4 Driver Installation If your QutePC-1600 does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system.
