Summary of Contents for Quanmax QBOX-1010
- Page 1 QBOX-1010 0.6-Liter Fanless Box PC with Intel® Atom Processor N270 User’s Guide QBOX-1010 User’s Manual...
- Page 2 © 2009 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Power Menu ..................31 Security Menu .................. 32 Exit Menu ..................32 Chapter 4 Driver Installation ....................34 Appendix A DIO (Digital I/O) Sample Code ................35 Appendix B WatchDog Timer Sample Code ................. 36 QBOX-1010 User’s Manual... -
Page 4: Figures
Figure 10 DIN-Rail mounting (1) ..............23 Figure 10 DIN-Rail mounting (2) ..............24 Tables Table 1 QBOX-1010 product specifications..........14 Table 2 BIOS Main Menu ................26 Table 3 IDE Device Setting Menu .............. 26 Table 4 System Information ................ 27 Table 5 Advanced Menu ................ -
Page 5: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken;... -
Page 6: When Working Inside A Computer
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 7: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QBOX-1010 has the following voltage ratings: Input: 100-240 VAC, 50-60 Hz Output: 30W, 12VDC , 2.5A... -
Page 8: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 9: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 10: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 11 20 percent below the normal AC line voltage level. Line Conditioner Line conditioners go beyond the overvoltage protection of surge protectors. QBOX-1010 User’s Manual...
- Page 12 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QBOX-1010 User’s Manual...
-
Page 13: Chapter 1 Introduction
Introduction Overview The QBOX-1010 is a fan-less Box PC with a volume of just 0.6-liter that is ideal for space critical applications. This embedded hardware platform is designed with Intel® Atom N270 Processor which provides with excellent performance enabled by next- generation 45nm Process Technology. -
Page 14: Table 1 Qbox-1010 Product Specifications
Operating: 0°C to 40°C, 0%-90%, non-condensing Temperature/ Storage: -20°C to 80°C, 0%-90%, non-condensing Humidity 130 x 40 x 110 mm (WxHxD) Dimensions 750 g Weight Desktop, VESA-mount, DIN-Rail mount Mounting CE, FCC Class A Certification Table 1 QBOX-1010 product specifications QBOX-1010 User’s Manual... -
Page 15: System Tour
The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs. QBOX-1010 User’s Manual... - Page 16 The hard disk LED blinks when data is being written into or read from the HDD. Reset Button To reset the computer, use the tip of a pen to press the Reset button briefly (for less than three seconds). Power Switch The power switch allows powering ON and OFF the system. QBOX-1010 User’s Manual...
-

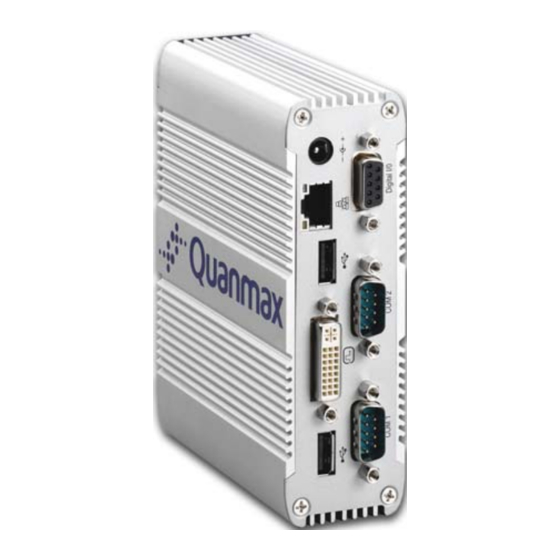

Page 17: Figure 2 Rear Panel
DC Jack (9-24V DC-IN) The supplied power adapter converts AC power to DC for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter. QBOX-1010 User’s Manual... - Page 18 The DB-9 female connector supports 4-bits input & 4-bits output, 5V and output current 1A. Signal Digital Output 0 Digital Input 0 Digital Output 1 Digital Input 1 Digital Output 2 Digital Input 2 Digital Output 3 (Female Connector) Digital Input 3 Screw GND [FEN YING DSM1001S01011PN] QBOX-1010 User’s Manual...
-
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Dimensions in millimeters Figure 3 Mechanical Dimensions QBOX-1010 User’s Manual... -
Page 20: Chapter 2 Getting Started
VGA connector. NOTE When the system reboots without connecting the DVI, there might be no image on screen when you insert the DVI cable. Please pressing <Ctrl>+<Alt>+<F4> simultaneously to show the image on screen. QBOX-1010 User’s Manual... -
Page 21: Figure 5 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your QBOX-1010 does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. Figure 5 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 22: Mounting Your Pc To A Monitor
Figure 8 VESA mounting (1) NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. Place the QBOX-1010 on the VESA mounting kit and make sure the computer is fitting well on the bracket. Figure 9 VESA mounting (2) -
Page 23: Install Your Din-Rail Mounting Kit
Secure the DIN-Rail mounting kit “A” (optional accessory) to your system with 3x M3x6 round head screws. Secure the DIN-Rail mounting kit “B” (optional accessory) to DIN-Rail mounting kit “A” with screws. M3X4 flat head Figure 10 DIN-Rail mounting (1) QBOX-1010 User’s Manual... -
Page 24: Figure 10 Din-Rail Mounting (2)
Chapter 2 Clip the system onto the DIN rail as shown below. Figure 11 DIN-Rail mounting (2) QBOX-1010 User’s Manual... -
Page 25: Chapter 3 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 26: Main Menu
V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. LBA/ Large Mode [Auto] Enables or disables the LBA (Logical Block Addressing)/ Large mode. Setting to Auto enables the LBA mode if the device supports this mode, and if the device was QBOX-1010 User’s Manual... -
Page 27: Advanced Menu
↑↓ Select Item > Hardware Health Configuration +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. Press <Enter> to select a sub-menu for detailed options. QBOX-1010 User’s Manual... -
Page 28: Table 6 Onboard I/O Configuration Settings
↑↓ Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. USB Controller [Enabled] Options: Enabled, Disabled USB 2.0 Controller [Enabled] Options: Enabled, Disabled QBOX-1010 User’s Manual... -
Page 29: Boot Menu
↑↓ Select Item Bootup Num-Lock [ON] +- Change Field Wait For ’F1’ If Error [Enabled] Tab Select Field Hit ’DEL’Message Display [Enabled] F1 General Help F10 Save and Exit ESC Exit V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. QBOX-1010 User’s Manual... -
Page 30: Chipset Menu
[Enabled, 8MB] <> Select Screen ↑↓ Select Item +- Change Field DVMT Mode Select [DVMT Mode] Tab Select Field F1 General Help DVMT/FIXED Memory [128M] F10 Save and Exit ESC Exit V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. QBOX-1010 User’s Manual... -
Page 31: Power Menu
Options: Disabled, 1 Min, 2 Min, 4 Min, 8 Min, 10 Min, 20 Min, 30 Min, 40 Min, 50 Min, 60 Min Restore On AC Power Loss [Power Off] Options: Power Off, Power On, Last State Resume By USB Device [Disabled] Options: Disabled, Enabled Resume By PCI-E Device [Disabled] QBOX-1010 User’s Manual... -
Page 32: Security Menu
Discard Changes and Exit Discard Changes <> Select Screen ↑↓ Select Item Load Optimal Defaults +- Change Field Load Failsafe Defaults Tab Select Field F1 General Help F10 Save and Exit ESC Exit V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. QBOX-1010 User’s Manual... - Page 33 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QBOX-1010 User’s Manual...
-
Page 34: Chapter 4 Driver Installation
Chapter 4 Driver Installation If your QBOX-1010 does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system. -
Page 35: Appendix A Dio (Digital I/O) Sample Code
Appendix A Appendix A DIO (Digital I/O) Sample Code //============================================ //QBOX-1010 DOS DIO sample program //Please compile with Turbo C 3.0 to utilized the program //============================================ void main(){ int RetVal; outp(0x2E,0x87); outp(0x2E,0x01); outp(0x2E,0x55); outp(0x2E,0x55); outp(0x2E,0x07); outp(0x2F,0x07); outp(0x2E,0x27); outp(0x2F,0xFF); outp(0x2E,0xc2); outp(0x2F,0xff);... -
Page 36: Appendix B Watchdog Timer Sample Code
Appendix B Appendix B WatchDog Timer Sample Code //============================================ //QBOX-1010 DOS watchdog sample program //Please compile with Turbo C 3.0 to utilized the program //============================================ int main() //Initialized the WDT program outp(0x2e,0x87); outp(0x2e,0x01); outp(0x2e,0x55); outp(0x2e,0x55); //Setting Logical Device Number to 0x07 outp(0x2e,0x07);...
