Installing a Memory Module

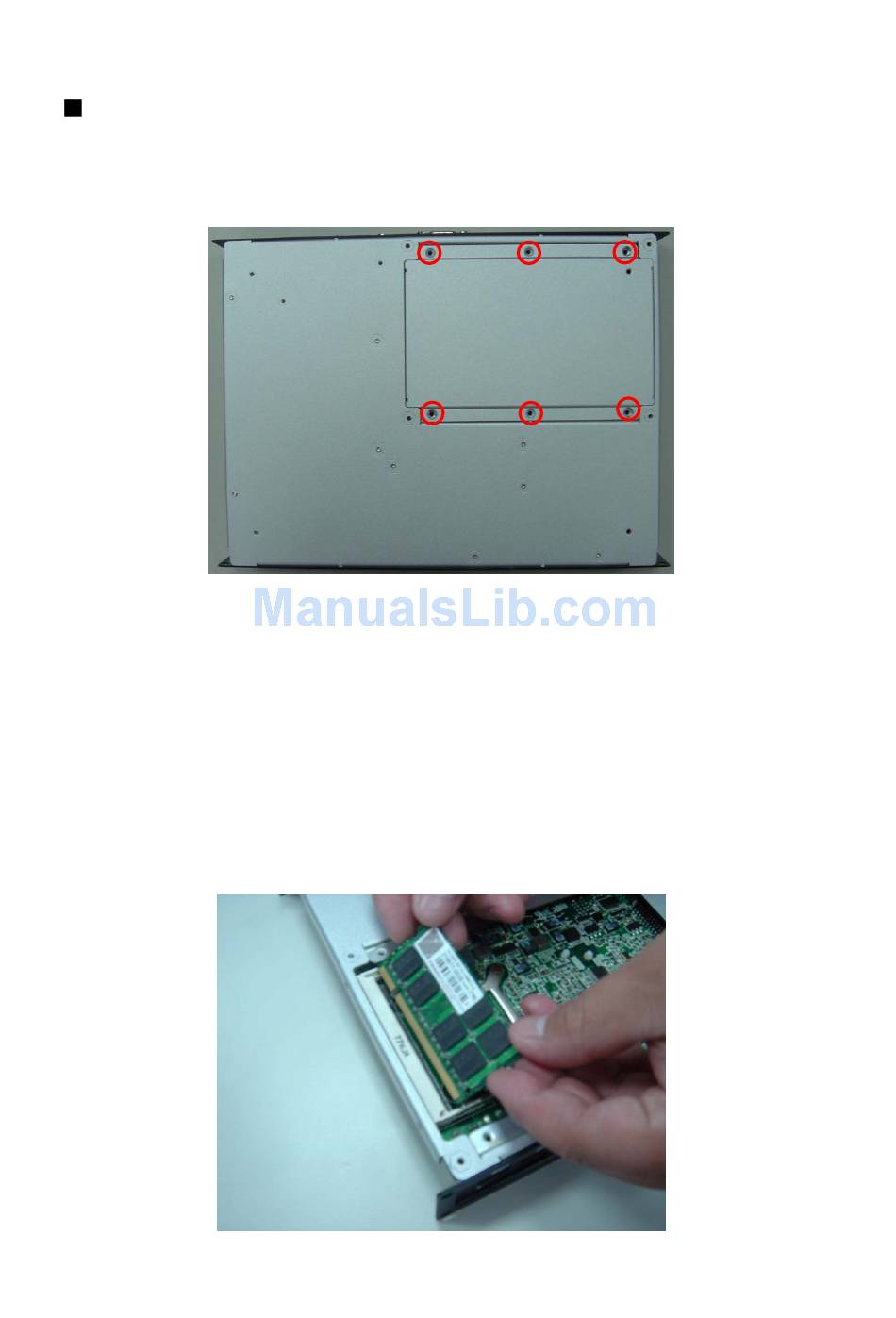

Remove the chassis bottom cover

Loosen the 6 flathead screws and remove the chassis bottom cover

Installing a SO-DIMM

To avoid generating static electricity and damaging the SO-DIMM, ground

yourself by touching a grounded metal surface or use a ground strap before you

touch the SO-DIMM.

Do not touch the connectors of the SO-DIMM. Dirt or other residue may cause a

malfunction.

Hold the SO-DIMM with its notch aligned with the memory socket of the

QDSP-1000/1010 and insert it at a 30-degree angle into the socket.

QDSP-1000/ 1010 User's Manual

Chapter 2
