Summary of Contents for avertX HD810

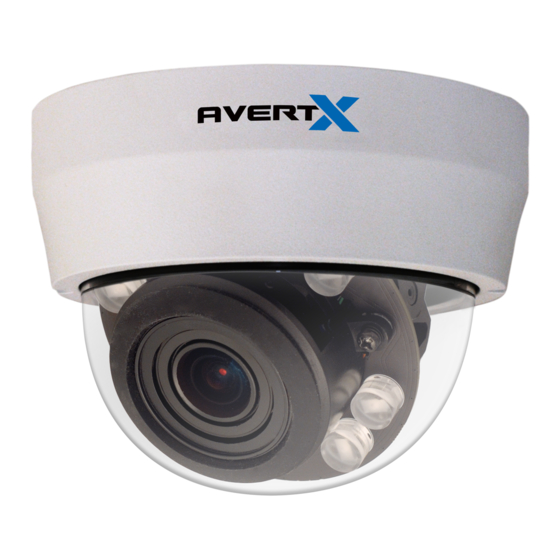

- Page 1 HD810 Night Vision HD Indoor/Outdoor IP Dome Camera User Manual...
- Page 2 AVERTX be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including without limitation, damages for loss of business profits, business interruption or loss of business information), even if AVERTX has been advised of the possibility of such damages or whether in an action, contract or tort, including negligence.
-
Page 3: Important Safeguards
• While operating, if any abnormal condition or malfunction is Save these instructions for future reference. observed, stop using the camera immediately and then contact AvertX Customer Support. Attachments / Accessories Do not use attachments or accessories unless recommended Handling by the appliance manufacturer as they may cause hazards, •... - Page 4 REGULATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC.
- Page 5 CAUTION...
-
Page 6: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ........................................... 6 INTRODUCTION ............................................10 Overview ..........................................11 Camera Default Settings ....................................11 Product Features ......................................11 ONE: GETTING STARTED ........................................... 12 Box Contents .......................................... 13 Camera Overview ........................................13 Dome Diagram ........................................ 13 Dimensions ........................................ - Page 7 TWO: CONNECTING ............................................. 16 Bench test..........................................17 AvertX Camera Finder ..................................... 17 Finding IP Cameras....................................17 Accessing the Camera ..................................... 17 Changing the IP Address ..................................17 THREE: SETUP AND CONFIGURATION ..................................... 18 Installing the camera ......................................19 Ceiling and Wall Installation .................................... 19 Tilt and Rotation Adjustment ..................................
- Page 8 System ........................................27 Streaming ......................................... 28 Camera ........................................29 Motion Detection ...................................... 30 Software Upgrade ....................................31 Logout ..........................................32 Logging In as a Different User .................................. 32 Connecting to the Camera as Admin ..................................33 Connecting in a Web Browser ..................................33 Home ..........................................
- Page 9 FOUR: SPECIFICATIONS ..........................................44 Camera Specifications ......................................45 32336AC...
-
Page 10: Introduction
INTRODUCTION... -
Page 11: Overview
• providing real time streaming video with smooth image quality. The Progressive Scan CMOS Sensor HD810 offers quad streaming and can be used in a variety of • 1080p and 4MP Resolution Available installations including shops, stores, banks, factories and for building •... -
Page 12: One: Getting Started
ONE: GETTING STARTED Box Contents Camera Overview... -
Page 13: Box Contents
If any item is missing or has defects, DO NOT install or operate section and complete preparations for dome setup and all switch the product and contact your dealer for assistance. settings. Dome Diagram HD810 Camera 30mmx4mm Self Plastic Anchors Tapping Screws (includes extra) -
Page 14: Dimensions
Dimensions Connections The HD810 cameras use Power over Ethernet (PoE). The only connection on the camera is the RJ45 Ethernet dongle located on the rear of the camera. Connect one end of the Ethernet cable to the dongle, and connect the other end to the recorder, or to a PoE switch. -
Page 15: Weather Resistant Cable Connector
Black Paintable Dome Cover This camera features an IP66-rated weather resistant connector. For The included black dome cover for the HD810 is paintable, allowing for a unprotected outdoor connections, screw the connector on the included customizable look. Use paint designed for plastic and paint away from the Ethernet camera cable onto the camera dongle. -
Page 16: Two: Connecting
TWO: CONNECTING... -
Page 17: Bench Test
Once the camera is connected to the recorder, test all functions (especially Auto If you are not directly connecting to an AvertX HDIP recorder, you must Focus, Zoom, IR Night Vision) to ensure proper operation. -
Page 18: Three: Setup And Configuration
THREE: SETUP AND CONFIGURATION Installing the Camera Connecting to the Camera Camera Settings... -
Page 19: Installing The Camera
INSTALLING THE CAMERA the density and thickness of the surface and only the screws provided. Remove the dome cover following the instructions on the sticker on the base of the camera. Note: Before installing this camera, please refer to the Quick Start Guide included in the camera box. -
Page 20: Tilt And Rotation Adjustment
If the video image is upside down after installation, you can flip the image 180º. For instructions to rotate the video, see Video Rotation in this manual or find them at avertx.com/support. CAUTION: Do not hold IR board when tilting the lens. Lens will only tilt 75°... -
Page 21: Considerations For Infrared (Ir) Lights
NOTE: The microSD card needs to be formatted to FAT32. A • See Cleaning the Dome for instructions to clean the dome formatting utility is available at avertx.com Note: Do not use solvents, paper towels, newspaper, or other rough To enable recording to the microSD card, insert the card into the camera materials to clean the dome. - Page 22 If your camera is connected directly to the HDIP recorder: Type the IP address of the recorder, followed by : and then /admin. (example: http://10.1.10.15:83/admin) - Using the default web port (80), the camera uses an address based on the IP address of the HDIP recorder starting with port 81.
-
Page 23: Focusing The Camera Lens
Focusing the Camera Lens Cleaning the Dome The HD810 is equipped with an auto-focus lens. All focus adjustments can The dome of the HD810 is made of hardened polycarbonate. It is be made through the camera software or your HDIP recorder. -
Page 24: Connecting To The Camera
Connecting a Stream CAMERA AvertX IP cameras are optimized for use with AvertX HDIP recorders, but you can also connect to your AvertX IP cameras using third party software like VLC media player (http://www.videolan.org). Connecting In a Web Browser To connect the camera you may need to provide the stream URL. All AvertX IP cameras are capable of delivering two RTSP streams, as well Type the IP address of the camera in a web browser. -
Page 25: Camera Settings
CAMERA SETTINGS Home You can access the camera setup menu using an internet browser on your computer. The camera viewer software will install automatically the first time you connect to the camera. If your internet browser doesn’t install the viewer software, check the security settings or ActiveX controls and plug-in settings. -
Page 26: Using Digital Zoom Control
Changing the Field of View The HD810 camera has a varifocal optical lens which means it has a variable field of view. You can set the camera to have a wide angle view, or a more zoomed in view to capture exactly what you need to see –... -
Page 27: Setup
A-Z, a-z, 0-9, !#$%&’-.@^_~. box label (AvertX IP Finder also displays the MAC address for identification). Record your camera’s MAC address for Changing the password may affect the plug and play identification in the future. -
Page 28: Streaming
Streaming When using static IP address to log in to the IP Camera, you can access it either through the AvertX IP Finder software or type the IP address directly in the Address bar of your internet browser. On the Streaming tab, you can configure specific video resolution, video compression mode, and video protocol and audio transmission mode. -
Page 29: Camera
Camera Video Rotation If your camera is installed on a wall or table top the image may appear You can adjust your picture quality on both streams using the Camera to be upside down. Rotate the camera video image using the software section of the Setup tab. -
Page 30: Motion Detection
Motion Detection Picture You can adjust these values as necessary for your installation. Motion Detection allows the camera to detect motion and trigger alarms when the motion level in the detected area exceeds the determined • Brightness sensitivity threshold value. •... -
Page 31: Software Upgrade
Software Upgrade When motion detection is activated, When motion is detected, the signals Use the Software Upgrade page to view the current version of camera the Motion pop-up window will open. will be displayed on the Motion firmware, and upgrade the firmware if necessary. window as shown below. -
Page 32: Logout
The upgrade status bar will display on the page. Logout Your AvertX camera will automatically log you out when you close your browser window. If you want to log in as a different user, you will need to use the logout tab. -
Page 33: Connecting To The Camera As Admin
CONNECTING TO THE Home CAMERA AS ADMIN Connecting to the camera as admin enables advanced setup and control. Connecting in a Web Browser Type the IP address of the camera in a web browser followed by /admin (for example: xxx.xxx.x.x/admin). Log in to the camera with the appropriate User Name and Password. -
Page 34: System
System Camera Control– Allows the User to change camera controls in the Setup menu. Click Add. Host Name – The Host Name is used to identify the camera on your system. If camera based Motion Detection is enabled and is set to send Delete User alarm message by Mail/FTP, the host name entered here will display in the alarm message. -
Page 35: Network
Type a new address in the Default Gateway box. When using static IP address to log in to the IP Camera, you can access it either through AvertX Camera Finder software or type the IP address directly in the address bar of Internet Explorer. -
Page 36: Ddns
the new port must be defined when attempting to web connect (ex: Friendly Name – Set a name to easily identify the camera. if your camera’s IP address is 192.168.0.100 and you change the DDNS web port to 8001, then you must type http://192.168.0.100:8001 in your browser). -
Page 37: Http
HTTP When motion detection is activated, When motion is detected, the signals the Motion pop-up window will open. will be displayed on the Motion The camera can send alarm messages to a specific Hypertext Transfer window as shown below. Protocol (HTTP) site when motion is detected or when the sensor input is activated. -
Page 38: Storage Management
SD Card Tampering All AvertX IP cameras include an integrated microSD™ card slot that can be Tampering Alarm – Turn the Tampering Alarm On, Off, or On By used to record video or images. The card slot is compatible with a Schedule. -
Page 39: Recording
Type a Start Time and Duration. Note: If you are using Windows Vista, 7, or 8, you will need to change the Snapshot location. Windows UAC does not allow Click Save. internet programs to write directly to C:\ for security reasons. Repeat steps 3-5 for each desired day of the week until the desired schedule is completed. -
Page 40: Software Version
Video Format Go to the Windows Control Panel and double-click Add or Remove Your AvertX IP camera can transmit three streams of video at the same Programs. Locate the Camera Viewer software on the Currently time. One stream can be in high definition for recording, and the other installed programs list and click Remove to uninstall the previous can be a lower resolution used for live display. -
Page 41: Video Compression
• Text Overlay – allows you to select text to be displayed over the video. 4096kbps, middle compression, default Three options are available: Date, Time, and a Custom String (up to 20 • 6144kbps alphanumeric characters). • 8192kbps, low compression, highest quality Video Rotation –... -
Page 42: Camera
In the case of multicast networking, users can select the Multicast Place a large white object (paper or cardboard works well) in the mode. center of the camera’s field of vision. The camera should be mounted in its final location Video Frame Rate Press the One Push button Setting the camera to transmit fewer frames can save bandwidth. -
Page 43: Digital Zoom
Profile You can set custom camera setting profiles and switch between them manually or automatically via a schedule. Backlight If your camera is aimed at a doorway or window, and you need to see detailed footage of people in front of that doorway, the difference between light and shadow can make the people difficult to recognize. - Page 44 FOUR: SPECIFICATIONS...
-
Page 45: Camera Specifications
CAMERA SPECIFICATIONS Model HD810 Resolution (4MP) 2560 x 1440 (3 MP) 2048 x 1536, (2MP / 1080p)1920 x 1080 (1.3 MP) 1280 x 1024, (1MP / 720p) 1280 x 720 (D1) 720 x 480, (CIF) 352 x 240 Compression H.264 / MJPEG... - Page 46 Dimensions Ø 4.6” x 3.6” (Ø 117 x 9.5 mm) Weight 0.8 lbs (370 g) Mounting Hardware Included...
- Page 47 © 2015 AvertX All rights reserved. No part of this publication may be reproduced by any means without written permission from AvertX. The information in this publication is believed to be accurate in all respects. However, AvertX cannot assume responsibility for any consequences resulting from the use thereof. The information contained herein is subject to change without notice.
