Summary of Contents for avertX HD7022-FPW

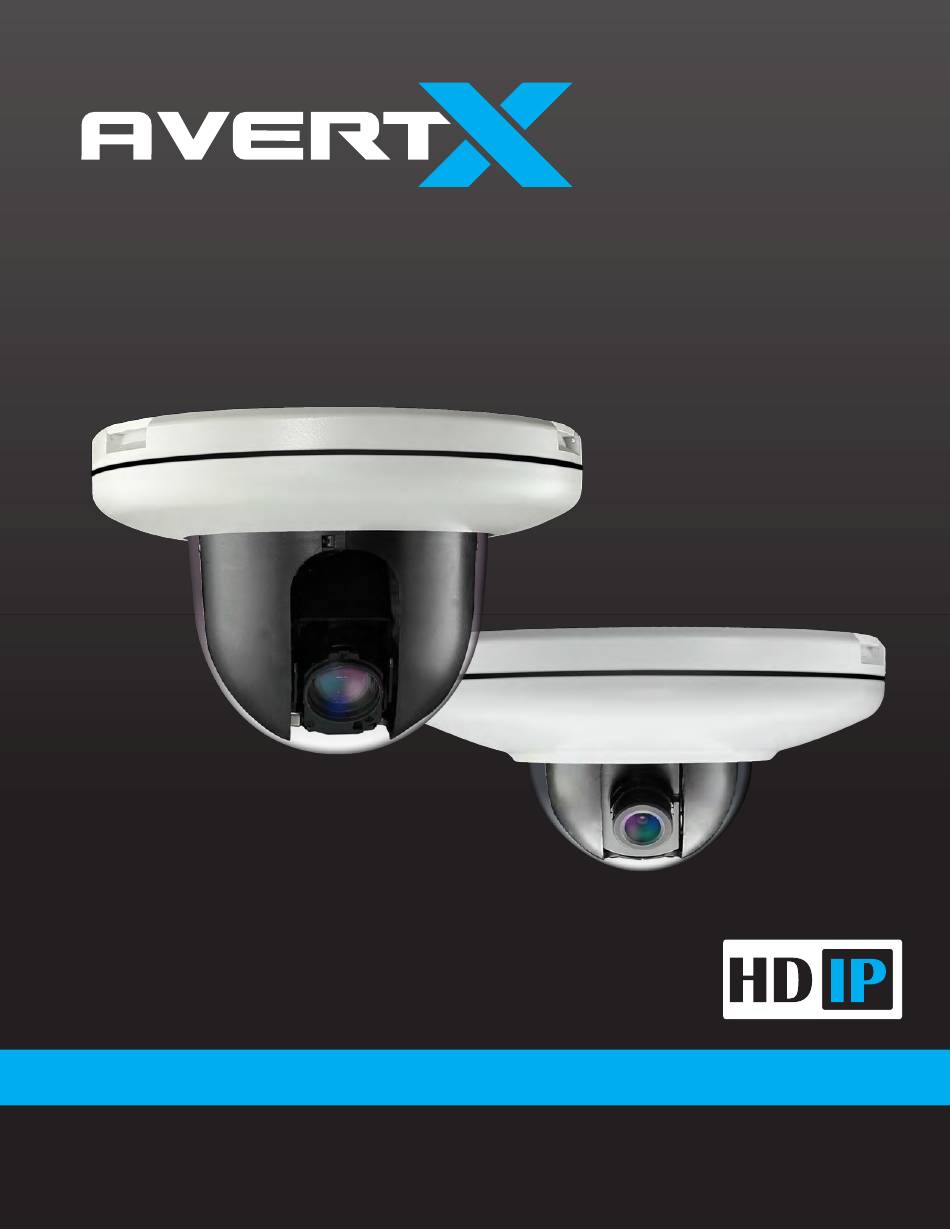

- Page 1 HD7022-FPW / APW 2MP Low Profile IR Dome Camera With WDR User Manual...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall AVERTX be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including...
- Page 3 Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Installation Do not place or mount this product in or on an unstable or improperly supported location.
- Page 4 Installation and Storage • Do not install the camera in areas of extreme temperatures in excess of the allowable range. (14°F~ 122°F / -10°C ~ 50°C) • Avoid installing in humid or dusty places. The relative humidity must be below 90%. •...
- Page 5 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution...
-
Page 6: Table Of Contents
Indoor Cameras ....................14 POE Power Source ..................14 12vDC Power Source ..................15 Locate Camera ..................16 AvertX Network Camera manager ................16 Installation ......................... 16 Starting Network Camera Manager ................16 Device Addressing ....................17 Finding Network Devices ..................17 Viewing a Network Camera.................. - Page 7 Use Static IP Address ..................24 IPv6 Address Configuration ................25 User Setup ........................ 25 Admin Password ....................25 Add User ......................25 Delete User ......................25 Modify User ......................26 File Location ......................26 Picture Setup ........................ 27 Camera Tab ......................27 Exposure ......................
- Page 8 Mail, HTTP and FTP Setup ..................39 SD Card ........................39 Network Share ......................40 Recording Schedule ....................41 Recording ......................41 Schedule ......................42 Interval Recording ....................43 Maintenance ......................44 Configuration ......................44 Factory Default ..................... 44 Software ........................45 Picture Setting ......................
-
Page 9: Introduction
INTRODUCTION OVERVIEW The AvertX Outdoor Fixed IP cameras are capable of providing real time streaming video with smooth image quality. The IP Mini Dome cameras offer quad streaming and can be used in a variety of installations including shops, stores, banks, parking lots, factories and for building surveillance. -
Page 10: Getting Started
GETTING STARTED BOX CONTENTS Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Camera (FPW or APW) Mount Plate &... -
Page 11: Camera Overview
CAMERA OVERVIEW Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. Camera Diagram... -
Page 12: Camera Dimensions
Camera Dimensions HD7022-APW Height: 3.25” Width: 4.9” HD7022-FPW Height: 2.9” Width: 4.9” Connections 35285AA... -
Page 13: Indoor Cameras
Indoor Cameras The camera is compatible with 12vDC and Power over Ethernet (PoE). Connect power to the camera using the provided power connector lead or connect the camera to a PoE power source. If you are connecting 12vDC power, verify the polarity of the power connection. -
Page 14: 12Vdc Power Source
12vDC Power Source If PoE is not being used, a power adapter is needed to power the camera. An additional 12vDC connector cable is required. 35285AA... -
Page 15: Locate Camera
The Network Camera Manager software is pre-installed on all AvertX Recorders, and included on the software CD with all AvertX IP cameras. It is also available for download on the AvertX website. Installation... -
Page 16: Device Addressing
Device Addressing The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Finding Network Devices Click Find Devices on the Device Addressing tab. To narrow your search by Camera Model, Project, or Camera Name, select your desired criteria from the appropriate lists. -
Page 17: Viewing A Network Camera
Enter the Username and Password for the camera. The username and password are case sensitive. It is strongly recommended that the password be changed after the initial setup to prevent unauthorized access. The default username and password for AvertX IP cameras are as follows. Username – Admin Password – 1234 The viewer software is now opened in Internet Explorer. -
Page 18: Setup & Configuration
SETUP & CONFIGURATION Connecting to the Camera Locate the camera on the IP Finder list. Double-click the camera to open the Viewer software in your web browser. Click Browse in the pop-up window. Log in to the camera with the appropriate User Name and Password. Note The default User name is admin and the default Password is1234. -
Page 19: Connecting Over The Internet
There are some challenges with connecting to AvertX IP cameras over WAN (internet) connections because the camera streams video over RTSP. RTSP is an excellent protocol for media and is now used on many IP cameras (including AvertX) as the default streaming option. -
Page 20: Viewer Tabs
Viewer Tabs Live – Monitor video and perform other video related functions. Setup – Set the camera name, IP address, and define users. This tab also allows you to configure the camera settings and view streams. Advanced – Perform advanced setup configurations, like network setup, security, alarms and maintenance. -
Page 21: Live
LIVE Full Screen – This will display the live feed in full screen. Snapshot – Click the button, and a JPEG snapshot will automatically be saved in the appointed place. The default location is: C:\. Note If you are using Windows Vista or 7, you will need to change the Snapshot location. -
Page 22: Setup
SETUP The Setup menu includes System Settings, Picture Setup, and Streaming Settings. Note The Setup menu displays limited setup options. For a complete list of setup options, see the Advanced section. SYSTEM SETTING Camera Name Host Name – The Host Name is used to identify the camera on your system. -
Page 23: Get Ip An Address Automatically (Dhcp)
Click Apply to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through AvertX IP Finder software or type the IP address directly in the address bar of your Internet Explorer. -
Page 24: Ipv6 Address Configuration
IPv6 Address Configuration To enable IPv6 select Enable IPv6 and click Save. See your network administrator if you are unsure of your network configuration. User Setup Admin Password Manage the password for the Administrator account. To change the administrator password: Type a new Administrator Password, and then type again to confirm the password. -
Page 25: Modify User
Modify User Select the user name on the User Name list. Click Edit. In the resulting window, modify the Password and/or feature permissions. Click Save. Note For security reasons, every time the user properties are opened the access check boxes are automatically cleared. Make sure you select any user access options each time you edit the user properties. -
Page 26: Picture Setup
Use the Camera Tab section to modify picture settings for the camera. The sample image will change as you modify the picture settings. Note These settings can drastically affect the camera image. AvertX suggests that these settings are only modified by a CCTV professional, or at the instruction or a technical support representative. -
Page 27: Picture Adjustment
Picture Adjustment Each of the Picture Adjustment settings is set to the recommended default. Brightness – Adjust the image’s brightness on the camera. The Backlight value is adjustable from 0 (dim) ~ +20 (brightest). Sharpness – Increasing the sharpness level can make the image looked sharper;... -
Page 28: Add Detection Window
Add Detection Window Use the Motion Detection dropdown to select a motion detection preset. Click Add. Note The selected motion detection square will be red. Arrange and size the motion detection window as desired. Click Save. Delete Motion Detection Window Click to select the desired motion detection window. -
Page 29: Streaming Settings
STREAMING SETTINGS Video Resolution The camera provides eight codec options under video resolution (two single streaming options, two sets of dual streaming options, two sets of tri- streaming options, and two sets of quad-streaming options): • H.264 Only • MJPEG Only •... -
Page 30: Video Orientation
AvertX recommends setting the GOP to be approximately twice the frame rate (e.g.: if the frame rate is 10 IPS, then set the GOP to 20). -
Page 31: Video Frame Rate
Video Frame Rate Setting the camera to transmit fewer frames can save bandwidth. Use the Frame Rate Control screen to adjust the frame rate of each stream. Each of the MJPEG and H.264 streams can have a separate frame rate setting from 1 to 30 frames per second. -
Page 32: Video Compression
Video Compression You can select an MJPEG / H.264 compression mode on the video compression page appropriate for your application. You can also select to display compression inflation on the Live Screen. MJPEG compression settings include: • High compression, low bitrate, low quality •... -
Page 33: Advanced
ADVANCED SYSTEM SETTING Network Setup The Network Setup settings will automatically be set at the recommended default after the camera connection is made. DDNS DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most Internet Service Providers use Dynamic IP Addressing that frequently changes the public IP address of your internet connection;... -
Page 34: Snmp Settings
SNMP Settings With Simple Network Management Protocol (SNMP) enabled, the camera can be monitored and managed remotely with a network management system. Contact your network administrator if you are not familiar with SNMP setup. UPnP (Universal Plug N’ Play) • Enable UPnP –... -
Page 35: Network Security
Network Security HTTP The camera can send alarm messages to a specific Hypertext Transfer Protocol (HTTP) site when motion is detected or when the sensor input is activated. You can assign alarm messages to up to two HTTP sites. IP Filtering IP Filtering allows you limit access to your IP cameras by IP address. -
Page 36: Alarm Application
Alarm Application The alarms menu is where alarm connections are configured. Alarm Switch – Designate when the alarm will be active; Off, On, or By Schedule. Alarm Type – Designate if the alarm is normally open or normally closed. • NOH –... -
Page 37: Tampering And Network Failure Detection
Tampering and Network Failure Detection Tampering Alarm – Turn the Tampering Alarm On, Off, or On By Schedule. Tampering Duration – Designate the amount of time (in seconds) that tampering must occur in order for a Tampering Alarm to activate. Triggered Action –... -
Page 38: Mail, Http And Ftp Setup
SD Card All AvertX IP cameras include an integrated microSD™ card slot that can be used to record video or images. The card slot is compatible with a microSD™ card up to 16GB. Load Device Information – Displays the storage total size and free space information of the included microSD™... -
Page 39: Network Share
Network Share Network Share is a network protocol that runs a variety of different system platforms, allowing for file sharing between computers operating on Windows and computers operating on Unix. This serves as an additional storage type. Configuration requires the host IP address, share name, and credentials. Once configured, cameras can record events to the network share. -
Page 40: Recording Schedule
Recording Schedule The recording schedule allows you to set up scheduled recording to the microSD™ card or to Network Sharing. Recording This section allows you to define recording schedules for the camera. For continuous recording: Select type of Recording Storage. •... -
Page 41: Schedule
Schedule This section allows you to establish schedules to use in other section. To create a schedule: Select a Schedule set (1-10). Check the desired week day check boxes. Select Day or Night. Designate a Start Time and Duration. Click Save. -
Page 42: Interval Recording
Interval Recording 35285AA... -
Page 43: Maintenance
Maintenance On the Maintenance page you can export the cameras current configuration, or import the configuration for a camera. Use the factory default page to reset the IP Camera to factory default settings if necessary. Note Do not import configuration files from different models of cameras. Configuration Export Configuration: Check the appropriate boxes for information that you want exported. -
Page 44: Software
Software Note Make sure the software upgrade file is available before starting the software upgrade. Click Browse and find the upgrade file. Note Do not change the file name, or the system will fail to find the file. Select the file name from the list under Step 2. Click Upgrade. -
Page 45: Streaming Setting
STREAMING SETTING Audio Audio Input Grain – sets the amplification that the camera applies to the incoming audio before transmitting. Audio Output Delay – Sets a delay in the audio transmission. This is used when there is significant lag in video transmission to help sync the audio and video. Volume –... -
Page 46: Specifications
SPECIFICATIONS CAMERA SPECIFICATIONS Model HD7022-APW HD7022-FPW Maximum Resolution 1080p (2MP) Image Sensory Sony 1/2.8” CMOS Video Compression H.264 / MPEG4 / MJPEG Frame Rate 30IPS @ 1080p (2MP) ONVIF Profile S Streaming Up to 2 configurable streams Browser Supoprt Internet Explorer (Active X) - Page 47 Model HD7022-APW HD7022-FPW Active / Passive Active (fan) Cooling Power Consumption 8.2W Max 9W Max Rated Amperage 0.68A (12vDC) 0.75A (12vDC) Input Voltage PoE / 12vDC PoE Class Camera Weight 0.97 lbs (439 g) 1.1 lbs (499 g) Dimensions (W x H): 4.9" x 2.9" (125 mm x (W x H): 4.9"...
- Page 48 All rights reserved. No part of this publication may be reproduced by any means without written permission from AvertX. The information in this publication is believed to be accurate in all respects. However, AvertX cannot assume responsibility for any consequences resulting from the use thereof.
