avertX HD828 Quick Start Manual

HD828 QUICK START GUIDE
About this Guide
This guide is a quick reference that offers users basic information regarding
installation and operation of the HD828 Night Vision Indoor / Outdoor Ultra High
Definition IP Cameras. For further details on installation and operation, please
refer to the User Manual at avertx.com.
CONTENTS OF CAMERA BOX
Before proceeding, please confirm that the box contains the items listed here. If
any item is missing or has defects, DO NOT install or operate the product and
contact AvertX for assistance.

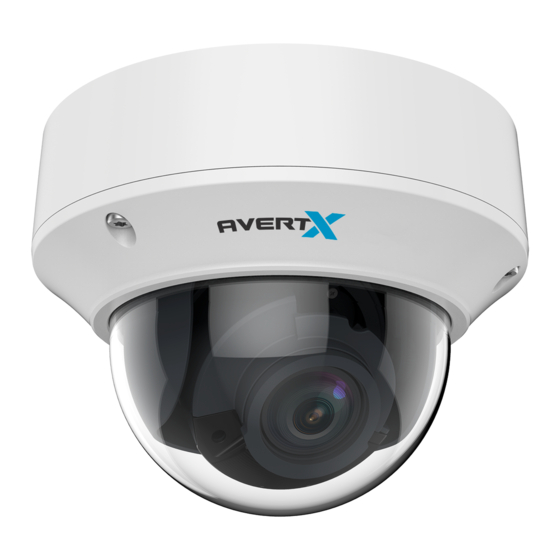

HD828 Dome Camera
Waterproof Cable
Connector
Anchors
Documents &
Wall mount bracket and other mounting accessories are available at avertx.com.
Paintable
Dome Cover
Screws
Desiccant
4K IP DOME CAMERA

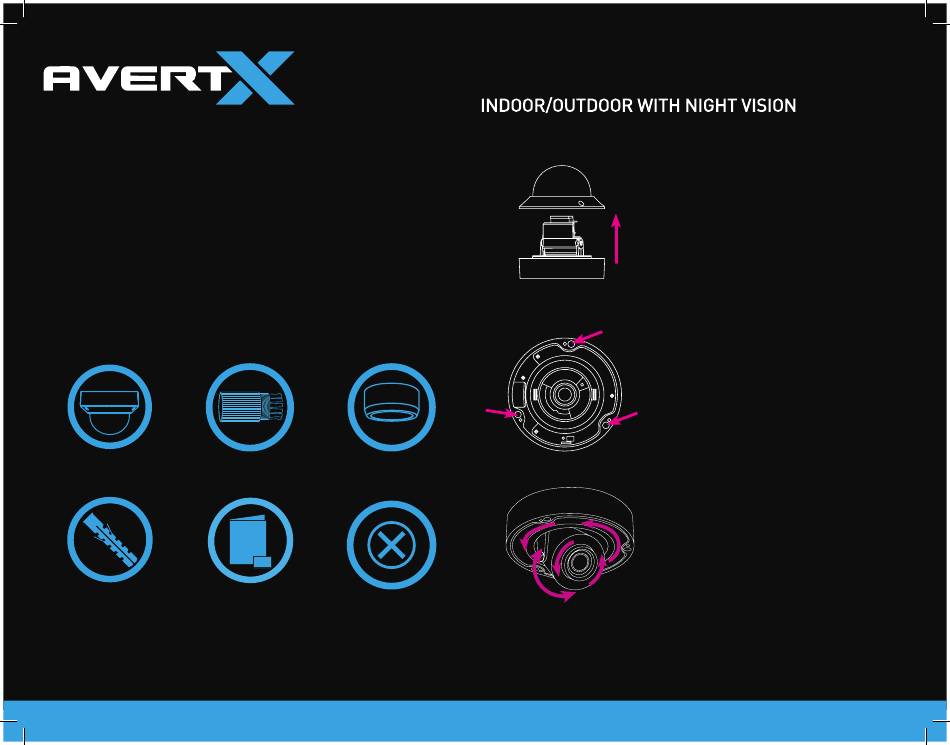

INSTALLATION
Remove Cover
Align Holes on Wall
Adjust Aim
Note: If mounting outside, seal the opening at the wall and the base of the
camera with silicone caulking.
Improper installation may cause damage to your camera and void the warranty.
The HD828 camera can be installed directly onto
a wall or the ceiling. Be sure that the structure is
strong enough to support the camera.
1. Remove the camera dome cover by
removing 3 dome screws and lifting.
2. Use the included mounting template to
pre-drill holes for the mounting screws and,
if passing the cable through the ceiling or
wall, drill a 7/8" hole.
3. If surface mounting the cable, unscrew and
remove the cable knockout on the side of
the dome.
4. Connect the camera cable from the ceiling
or wall to the dongle on the camera. If using
the waterproof cable connector, attach it
now. See instructions below.
5. Affix the base of the camera to the wall with
the included self-tapping screws and wall
anchors. If wall mounting, orient camera so
cable knockout faces downward.
6. Adjust the camera to the desired angle.
• The HD828 features 3-axis camera
positioning: Tilt, Camera Rotation, and
Lens Rotation.
• For best IR performance, rotate the
lens so the IR lights are positioned
directly below the lens and on the
horizontal plane.
7. Replace the dome cover. To install, align
screws to the holes. Tighten dome cover
screws just enough for a good seal.
35539AB
