avertX HD810 Quick Start Manual

QUICK START GUIDE

About this Guide

This guide is a quick reference that offers users basic information regarding
installation and operation of the HD810 Night Vision Indoor / Outdoor High Definition
IP Cameras. For further details on installation and operation, please refer to the User
Manual at avertx.com.

CONTENTS

Before proceeding, please confirm that the box contains the items listed here. If any
item is missing or has defects, DO NOT install or operate the product and contact
AvertX for assistance.
HD810
Dome Cover
Dome Camera
Spare Rubber
Washers
Paintable
Screws
Anchors Documents &
Desiccant

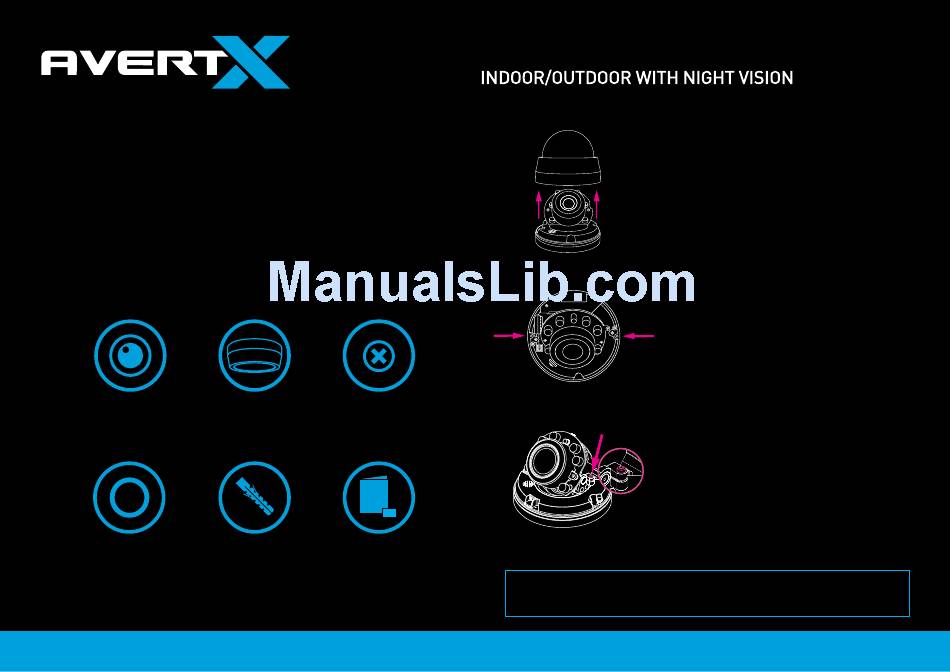

HD810 IP DOME CAMERA

INSTALLATION

Remove Cover
Align Holes on Wall
Adjustment Screw
Please note: Using the included mounting screws is required to maintain IP66
outdoor rating. Using other screws or modifying the camera may allow water
intrusion and void the warranty.
The HD810 camera can be installed directly onto
a wall or the ceiling. Be sure that the structure is
strong enough to support the camera.
1. Remove the camera dome cover (refer to
base of camera).
2. Use the included mounting template to
pre-drill holes for the mounting screws
and, if passing the cable through the
ceiling or wall, drill a 3/4" hole.
3. Connect the Ethernet cable to the dongle
on the camera. Further information about
cable installation on reverse side.
4. Affix the base of the camera to the wall
with the included self-tapping screws
and wall anchors. Do not over tighten the
mounting screws. Over tightening the
screw could compromise the seal.
5. Adjust the camera to the desired angle.
Loosen adjustment screw before
adjusting angle.
6. If surface mounting the cable, remove
the cable knockout on the side of the
dome cover.
7. Replace the dome cover. To install, align
knockout tab in housing to cable.
32346AD
