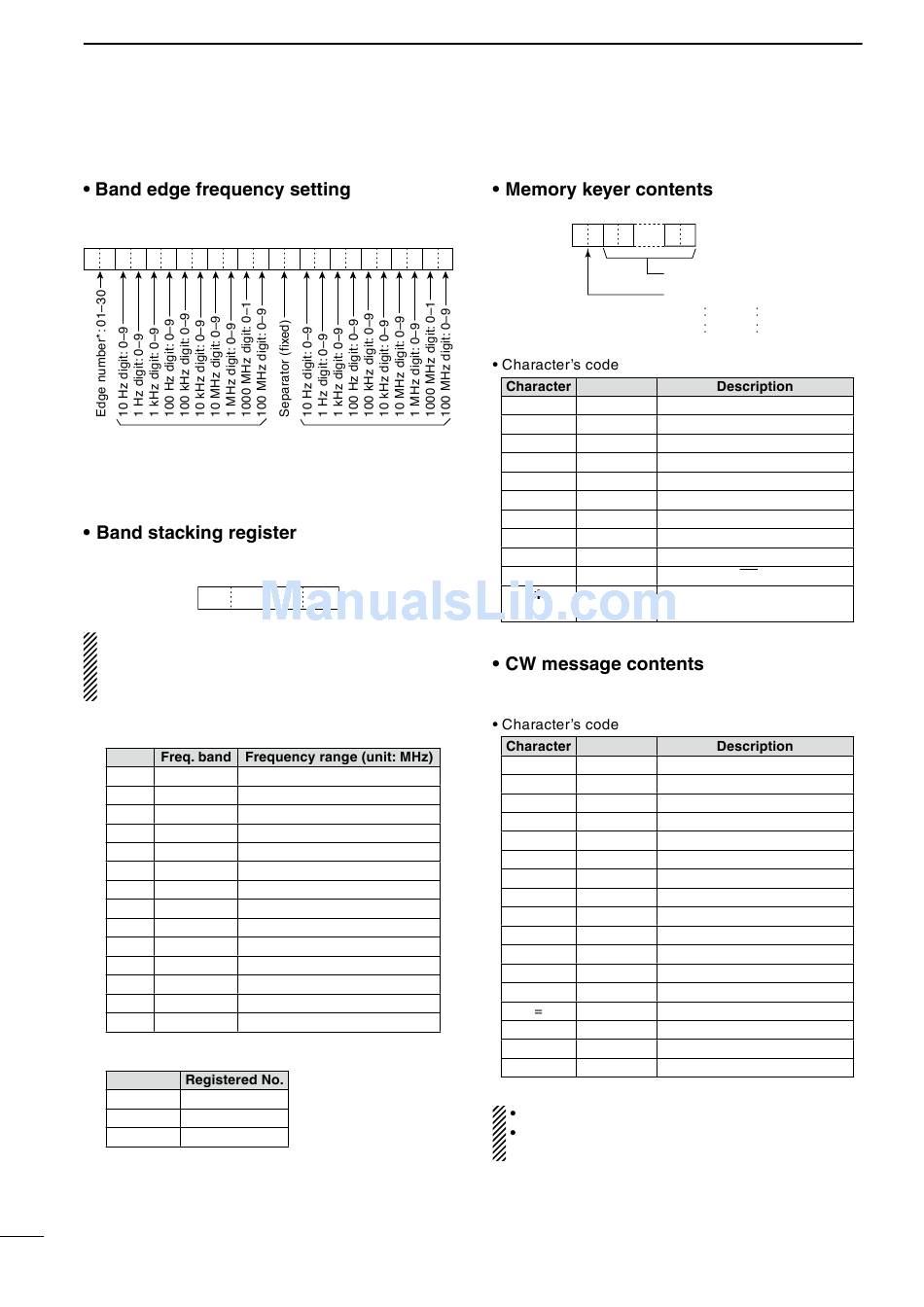

CONTROL COMMAND
D Data content description (continued)
Command 02*, 1E 01, 1E 03
q w e r
X X X X X X X X X X X X 2 D X X X X X X X X X X
Lower edge
* Edge number setting is not necessary with com-
mand 02.
Command : 1A 01
When sending the contents, the codes, such as op-
erating frequency and operating mode*, should be
added after the register code, as shown below.
* See t to %1 on 'Memory content setting.' (p. 195)
q Frequency band code
Code
01 1.8
02 3.5
03 7
04 10
05 14
06 18
07 21
08 24
09 28
10 50
11 VHF
12 UHF
13 1.2G
14 GENE
w Register code
Code
01
02
03
For example, when reading the oldest contents in the
21 MHz band, the code "0703" is used.
191
t y u i o !0
Higher edge
q w
X X X X
1.800000– 1.999999
3.400000– 4.099999
6.900000– 7.499999
9.900000–10.499999
13.900000–14.499999
17.900000–18.499999
20.900000–21.499999
24.400000–25.099999
28.000000–29.999999
50.000000–54.000000
108.000000–174.000000
420.000000–480.000000
1240.000000–1320.000000
Other than above
1 (latest)
2
3 (oldest)
Command : 1A 02
!1 !2
0–9
A–Z
a–z
space
/
?
,
.
@
^
Command : 17
Set a CW message of up to 30 characters.
0–9
A–Z
a–z
space
/
?
.
–
,
:
'
(
)
+
"
@
"FF" stops sending CW messages.
"^" is used to transmit a string of characters with
no inter-character space.
X X X ...... X X
X
w–&1 : Text data
q: Channel data
01 M1 03 M3
02 M2 04 M4
ASCII code
30–39 Number
41–5A Alphabetical characters
61–7A Alphabetical characters
20 Word space
2F Symbol
3F Symbol
2C Symbol
2E Symbol
40 Symbol
5E
e.g., to send BT, enter ^BT
2A Inserts contest number (can be
used for 1 channel only)
ASCII code
30–39 Number
41–5A Alphabetical characters
61–7A Alphabetical characters
20 Word space
2F Symbol
3F Symbol
2E Symbol
2D Symbol
2C Symbol
3A Symbol
27 Symbol
28 Symbol
29 Symbol
3D Symbol
2B Symbol
22 Symbol
40 Symbol
