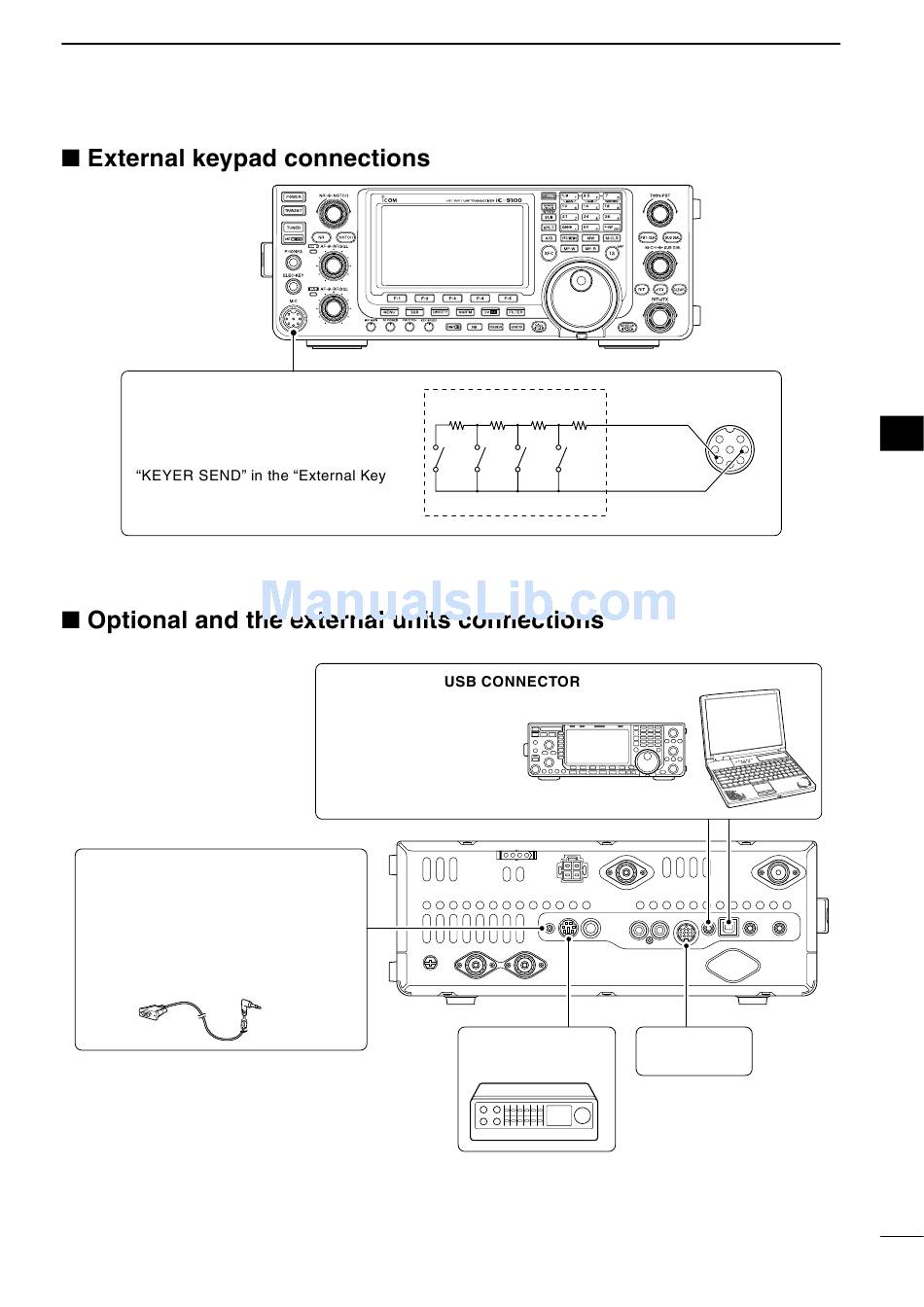

EXTERNAL KEYPAD
Connect an external keypad for keyer
memory control.
When using a external keypad, select
pad" item of the Set mode. (p. 167)
DATA1 JACK (pp. 117, 121)
Connect the optional OPC-1529R for
low speed data communication using a
PC and the transceiver, or for the GPS
receiver connection.
A third-party serial data communication
software is required.
4.7 kø 2.2 kø
± 5% ± 5%
S4 S3
-
(M4) (M3)
EXTERNAL KEYPAD
REMOTE JACK,
Used for computer control
and transceive operation.
The optional CT-17 is re-
quired when connecting a
PC to [REMOTE].
DATA2 SOCKET
(pp. 14, 171)
INSTALLATION AND CONNECTIONS
1.5 kø 1.5 kø
To pin e
± 5% ± 5%
S2 S1
To pin y
(M2) (M1)
(p. 183)
ACC SOCKET
(pp. 13, 171)
2
1
7
2 8 6
3 5
4
[MIC]
(Front view)
