14

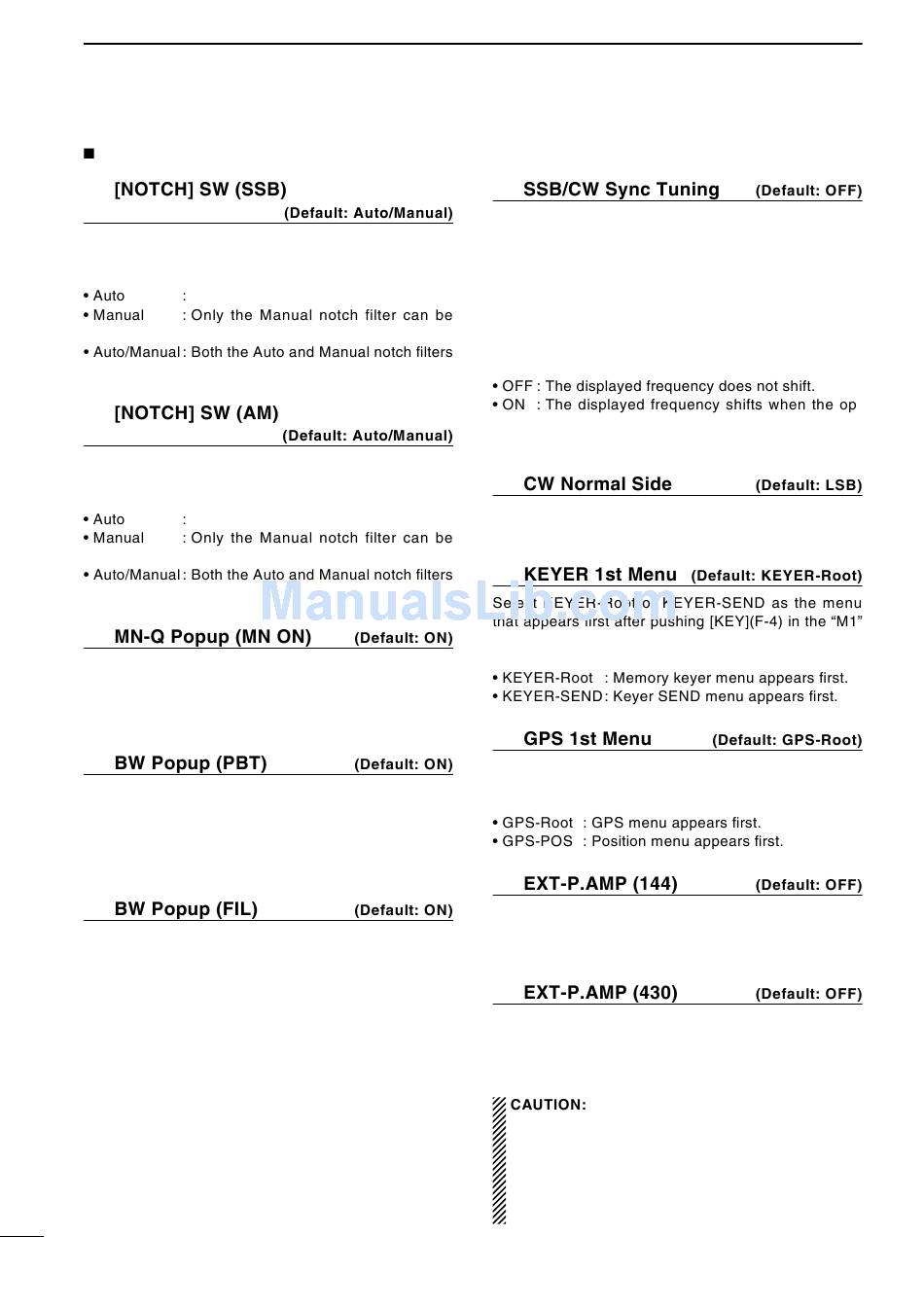

SET MODE
Set mode description (Continued)
36.
Select the Auto, Manual or Auto/Manual notch filter to
be used for SSB mode operation.
Only the Auto notch filter can be used.
used.
can be used.
37.
Select the Auto, Manual or Auto/Manual notch filter
used for AM mode operation.
Only the Auto notch filter can be used.
used.
can be used.
38.
Turn the manual notch filter width display ON or OFF.
When this item set to ON, and the manual notch filter
is selected with [NOTCH], and the manual notch filter
width appears on the function display.
39.
Turn the IF filter passband width and shift value dis-
play ON or OFF.
When this item set to ON, and the [TWIN PBT] control
is rotated, the passband width and shifting value ap-
pear on the function display.
40.
Turn the IF filter passband width and shift value dis-
play ON or OFF.
When this item set to ON, and [FILTER] is pushed,
the passband width and shifting value appear on the
function display.
165
41.
Turn the displayed frequency shift function ON or
OFF.
When this function is turned ON, the audio pitch or
tones of the received signal will remain the same, even
when the operating mode is changed between SSB
and CW.
The amount of frequency shift may differ, depending
on the CW pitch setting.
erating mode is changed between SSB and
CW.
42.
Select the sideband used to receive CW in the CW
normal mode between LSB and USB.
43.
screen (Menu 1), when the CW mode is selected.
44.
Select GPS-Root or GPS-POS as the menu that ap-
pears first after holding down [CALL/GPS].
45.
Switch the preamplifier control ON or OFF. When
using the optional AG-25, ON must be selected. Oth-
erwise, the preamplifier is never enabled.
46.
Switch the preamplifier control ON or OFF. When
using the optional AG-35, ON must be selected. Oth-
erwise, the preamplifier is never enabled.
NEVER connect any equipment, such
as an SWR or power meter, between the transceiver
and preamplifier due to the transceiver supplies the
DC voltage to the preamplifier unit when the unit is
ON. Otherwise, the preamplifier may not function
correctly, or the transceiver or external equipment
may be damaged.
-
