Required Connections; Grounding - Icom IC-9100 Instruction Manual

D
DC POWER
SUPPLY
(p. 27)
PS-126

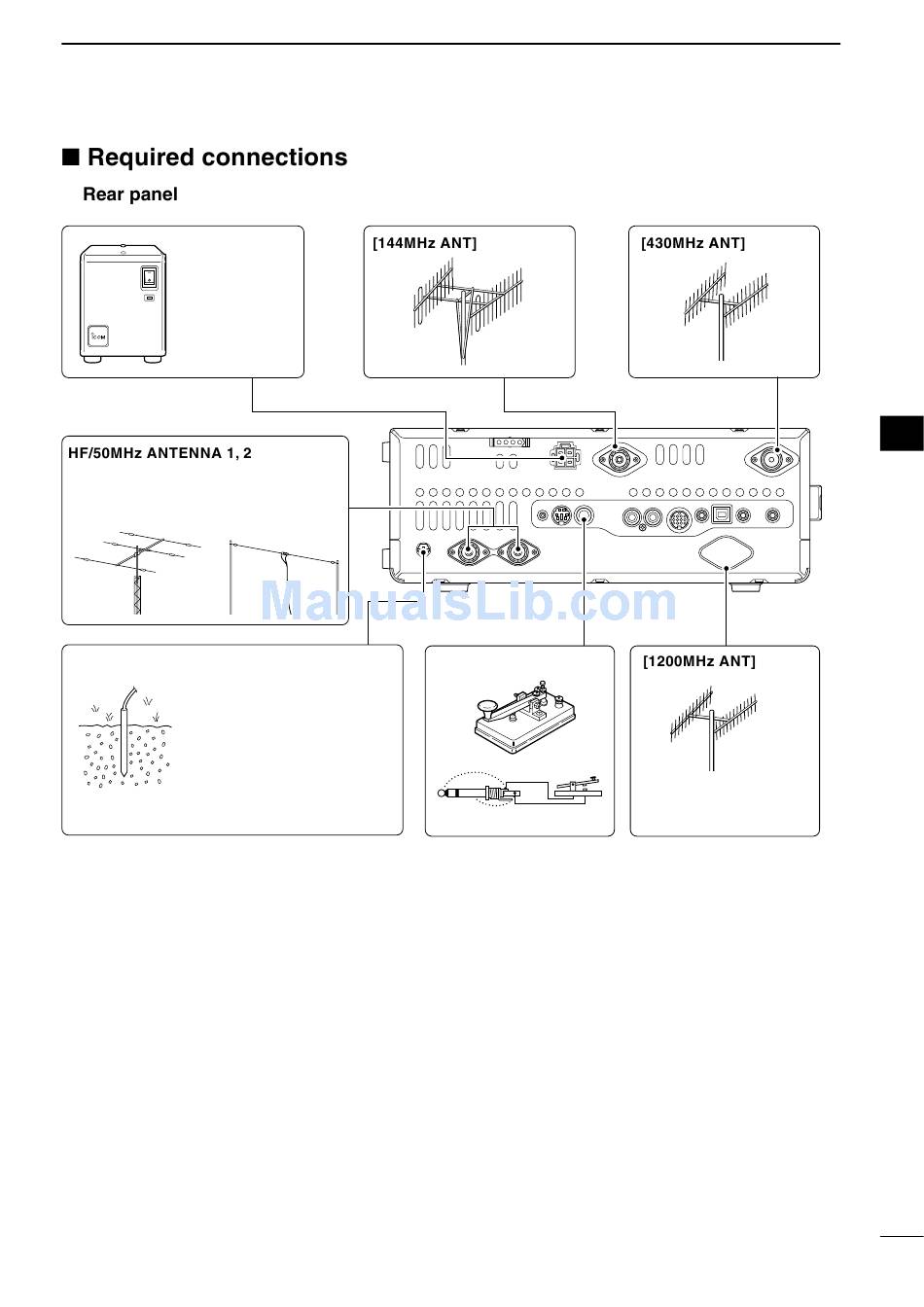

Connection example:
[ANT1] for 1.8–18 MHz bands antenna
[ANT2] for 21–28 MHz bands antenna
GROUND (p. 22)
Use the heaviest possible
gauge wire or strap and
make the connection as
short as possible.
Grounding prevents elec-
trical shocks, TVI and
other problems.
(p. 158)
INSTALLATION AND CONNECTIONS
(p. 158)
STRAIGHT KEY
+
_
(p. 158)
(p. 158)
The optional UX-9100
is required.
