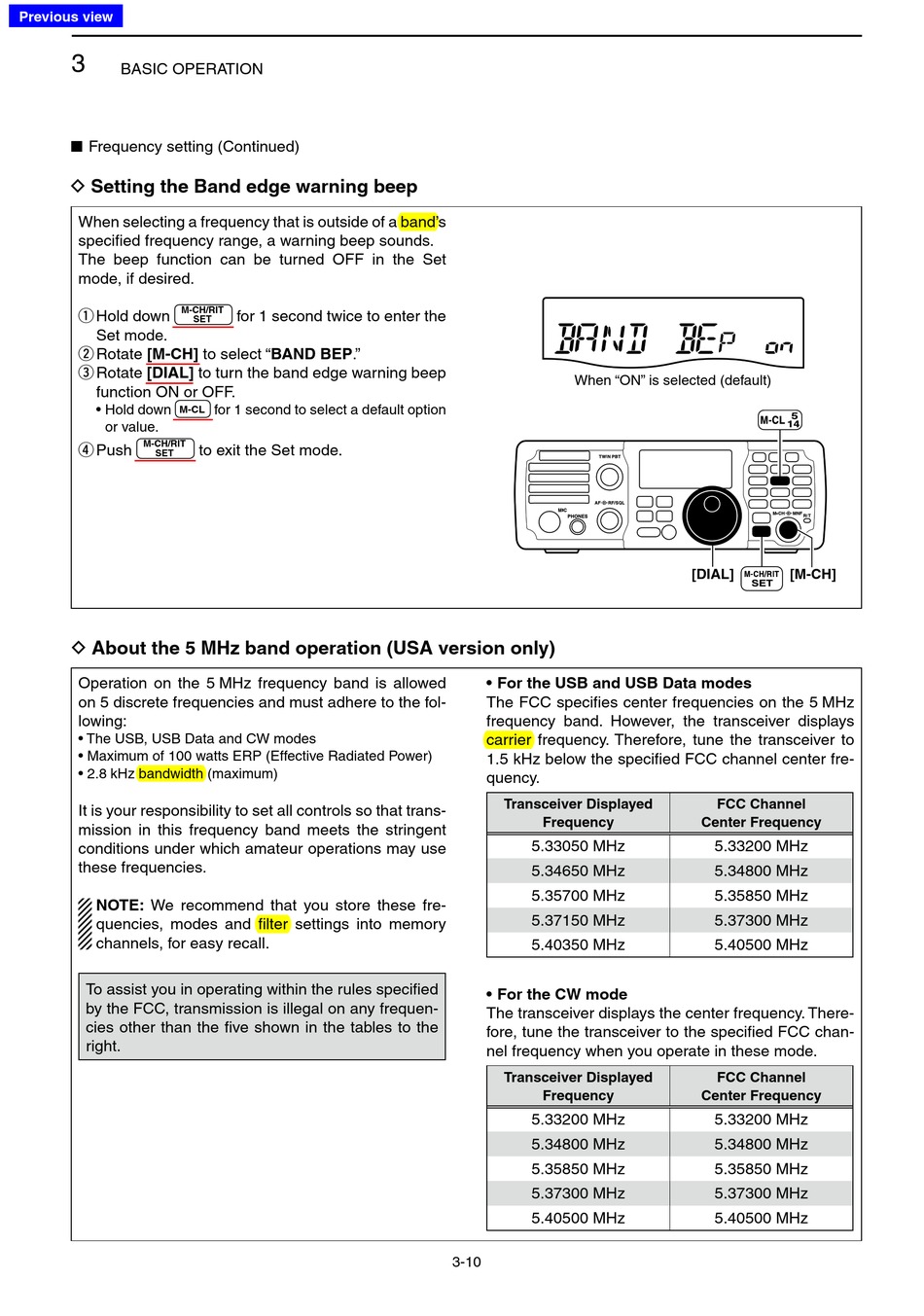

BASIC OPERATION
Frequency setting (Continued)
■

D Setting the Band edge warning beep

When selecting a frequency that is outside of a band's
specified frequency range, a warning beep sounds.
The beep function can be turned OFF in the Set
mode, if desired.
M-CH/RIT
Hold down
q
Set mode.
Rotate [M-CH] to select "BAND BEP."
w
[DIAL] to turn the band edge warning beep
Rotate
e
function ON or OFF.
• Hold down
M-CL
or value.
M-CH/RIT
Push
r
SET

D About the 5 MHz band operation (USA version only)

Operation on the 5 MHz frequency band is allowed
on 5 discrete frequencies and must adhere to the fol-
lowing:
• The USB, USB Data and CW modes
• Maximum of 100 watts ERP (Effective Radiated Power)
• 2.8 kHz bandwidth (maximum)
It is your responsibility to set all controls so that trans-
mission in this frequency band meets the stringent
conditions under which amateur operations may use
these frequencies.
NOTE: We recommend that you store these fre-
quencies, modes and filter settings into memory
channels, for easy recall.
To assist you in operating within the rules specified
by the FCC, transmission is illegal on any frequen-
cies other than the five shown in the tables to the
right.
for 1 second twice to enter the
SET
for 1 second to select a default option
to exit the Set mode.
When "ON" is selected (default)
• For the USB and USB Data modes
The FCC specifies center frequencies on the 5 MHz
frequency band. However, the transceiver displays
carrier frequency. Therefore, tune the transceiver to
1.5 kHz below the specified FCC channel center fre-
quency.
Transceiver Displayed
Frequency
5.33050 MHz
5.34650 MHz
5.35700 MHz
5.37150 MHz
5.40350 MHz
• For the CW mode
The transceiver displays the center frequency. There-
fore, tune the transceiver to the specified FCC chan-
nel frequency when you operate in these mode.
Transceiver Displayed
Frequency
5.33200 MHz
5.34800 MHz
5.35850 MHz
5.37300 MHz
5.40500 MHz
3-10
[DIAL] [M-CH]
FCC Channel
Center Frequency
5.33200 MHz
5.34800 MHz
5.35850 MHz
5.37300 MHz
5.40500 MHz
FCC Channel
Center Frequency
5.33200 MHz
5.34800 MHz
5.35850 MHz
5.37300 MHz
5.40500 MHz
