5.3 Setup menu
5.3.4

Load backup operating hours counter

Note:
If the CPU has been changed the operating hours counter reading must be loaded back from the clean module (A3)
(saved operating hours counter).
Operational status:
Unit is in Setup menu and with the I-button, in Parameter menu: System parameter?
OpHrs: 123 h31m (operating hours counter saved in clean module)
Load backup?: 0
has been called up
Important:
Immediately after the head CPU printed circuit board has been installed the key switch (S0) must not be switched
off until the operating hours counter has been reloaded from the clean module. Oth-erwise the reading saved in the
head CPU is adopted.
Note:
If the i-button is not pressed within 30 seconds
the program automatically switches to
Battery:E
OpHrs:
Then restart, as described in Chapter 5.3.1.1
Note:
In the information menu (access see Chapter 3.3.1) the
reloaded operating hours level must then be checked.
Display
Battery:
Water/C:
Changes are saved
Yes: < Ibutton > ?
yes
Display
Quit parameter
setup menu?
yes
Service Manual 08.2007
- -F
3h 37m
E....F
E....F
no
Display
Save
no
no

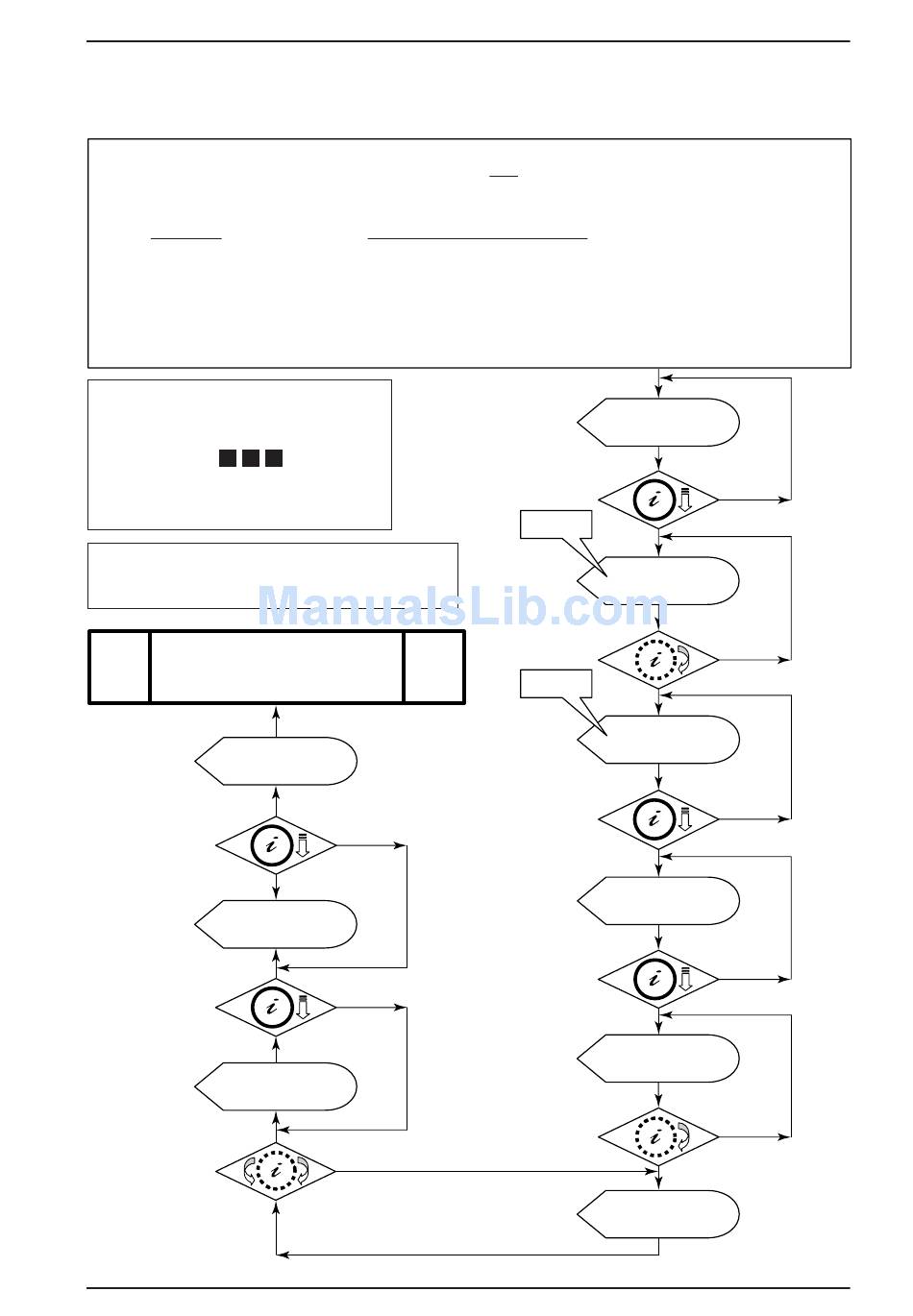

Basic settings and service procedures
Display
OpHrs: 123h 31m
Load backup?:0
Flashing
yes
Display
OpHrs: 123h 31m
Load backup?:0
Flashing
yes
Display
OpHrs: 123h 31m
Load backup?:1
yes
Display
OpHrs: 123h 31m
Load backup?:1
yes
Display
Return to setup
Module selection
yes
Display
Parameter menu:
System parameter?
no
no
no
no
no
