Suction Beam - Kärcher BR 100 R Service Manual

Technical features
2.3

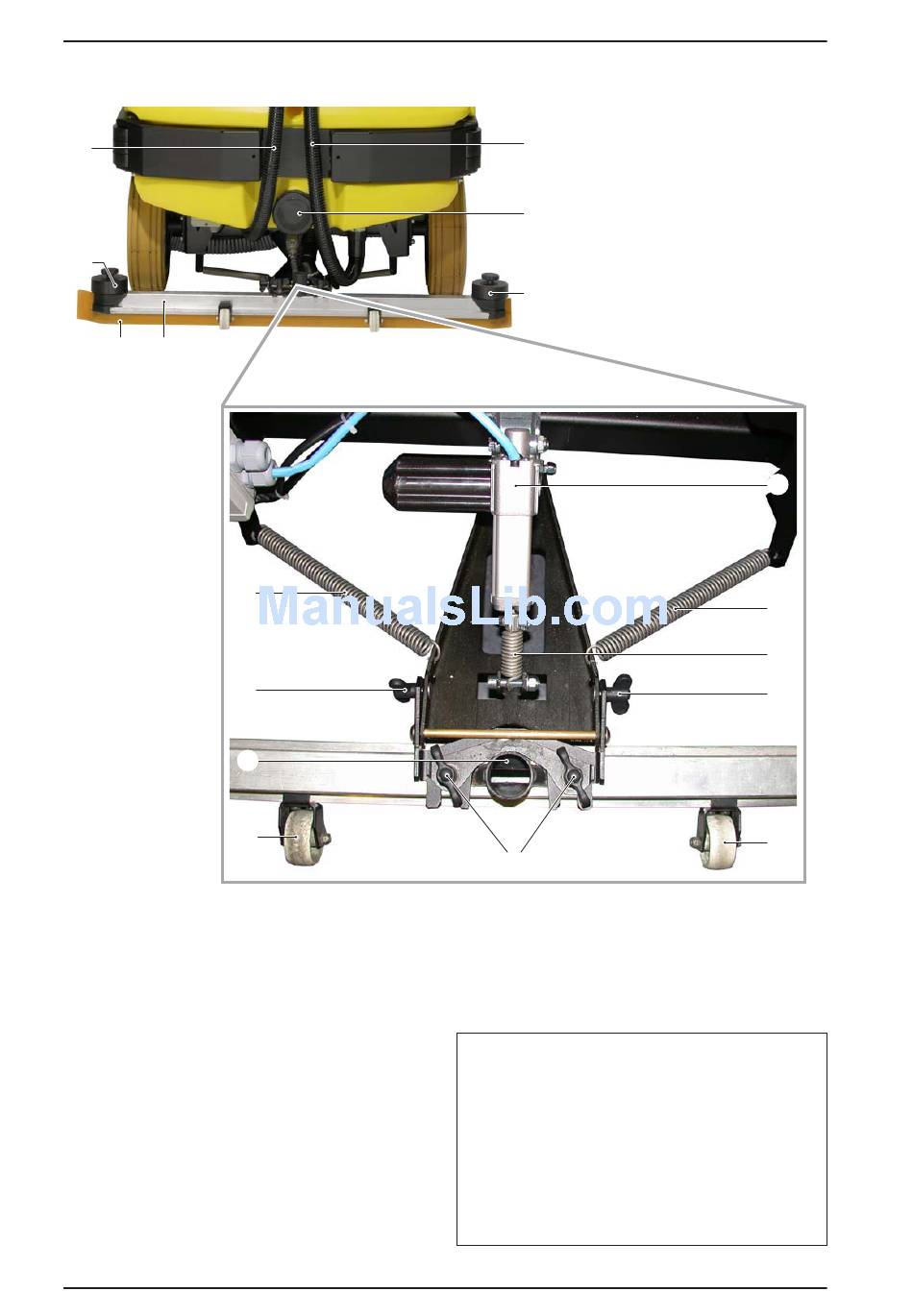

Suction beam

6
3
5 4
1 Drain hose, dirty water tank
2 Cleaning opening, dirty water tank
3 Deflection roller with star grip for repla-
cing/turning the rubber strips
4 Suction beam, straight design
5 Rubber strip
6 Drain hose, fresh water tank
7 Lifting motor, suction beam (M30),
lower/raise
8 Springs (2x), suction beam
9 Spring, lifting motor (M30)
10 Wing screws (2x), adjusting suction beam
tilt
11 Support roller for suction beam (2x)
Page 14 / 171
8
10
13
11
BR/BD 100/250 R BP / RI
1
2
3
12
12 Wing screws (2x), for fixing the suction
beam
13 Connection, suction hose
Note:
The front rubber strip is grooved as a
standard and the rear is smooth. Both rubber
strips can be turned in case of wear to
increase the endurance.
The springs (8, 9) protect and relieve the
suspension and lifting motor (7) of the suction
beam.
Service Manual 08.2007
7
8
9
10
