Brush Head Mounting Parts - Kärcher BR 100 R Service Manual

Unit functions
3.1.1

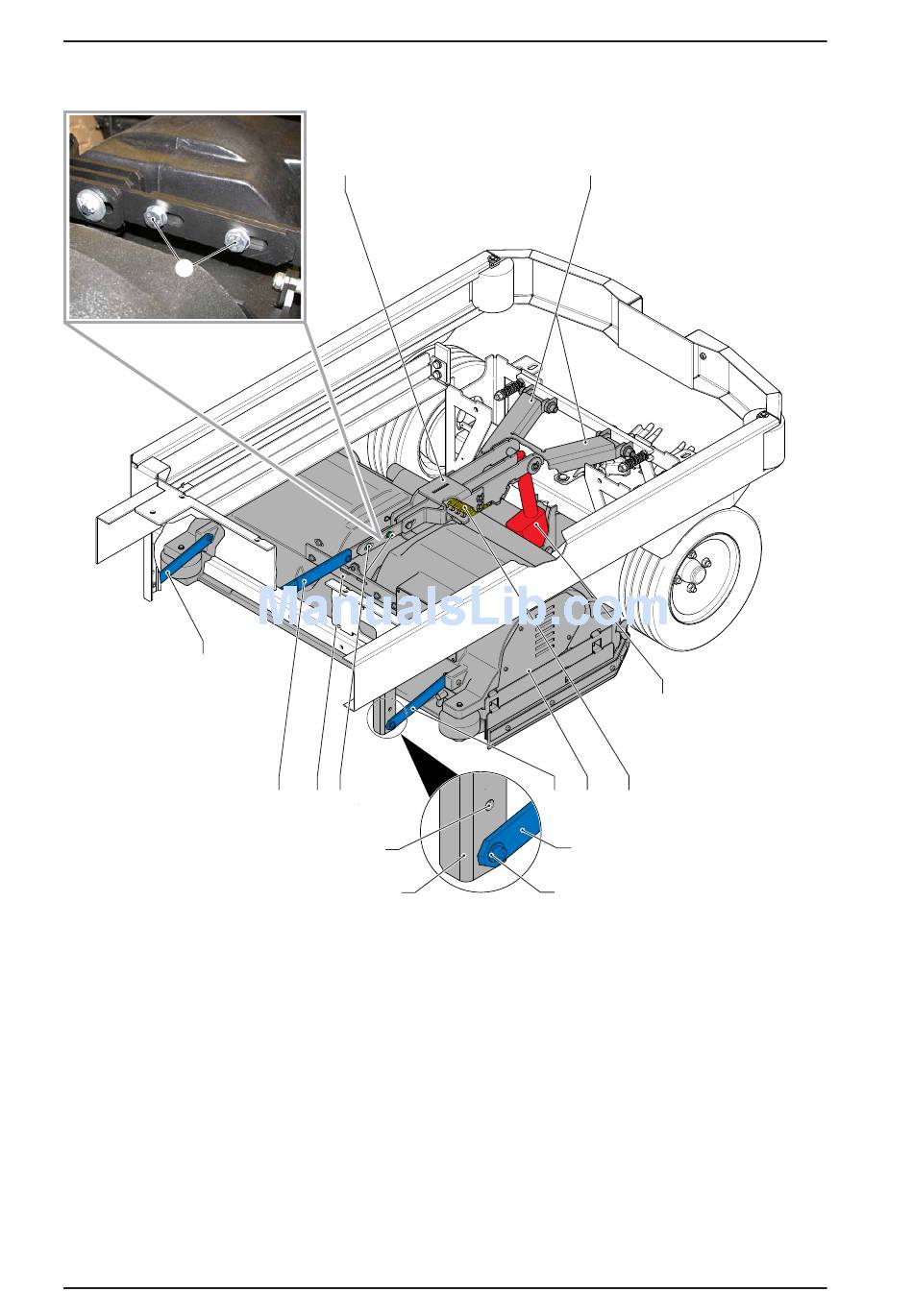

Brush head mounting parts

6
9
1 Rear suspension, brush head
2 Lifting motor - brush head (M20)
3 Springs (4x), brush head
4 Brush head (BR version)
5 Guide, brush head left
6 Adjusting screws
7 Brush head retainer
8 Guide, brush head top
9 Guide, brush head right
10 Retainer, springs (3)
11 Lower hole, retainer for brush head guide
(BR-version)
12 Bracket
13 Upper hole, retainer for brush head guide
(BD-version)
Page 48 / 171
10
8 7 6
13
12
BR/BD 100/250 R BP / RI
1
5 4 3
5, 9
11
The brush head (BR-version) is fastened with
the guides (5, 9) in the lower hole (11) of the
bracket (12).
The brush head (BD-version) is fastened with
the guides in the upper hole (13) of the bracket
(12).
