Basic settings and service procedures
5.3 Setup menu
5.3.2.2

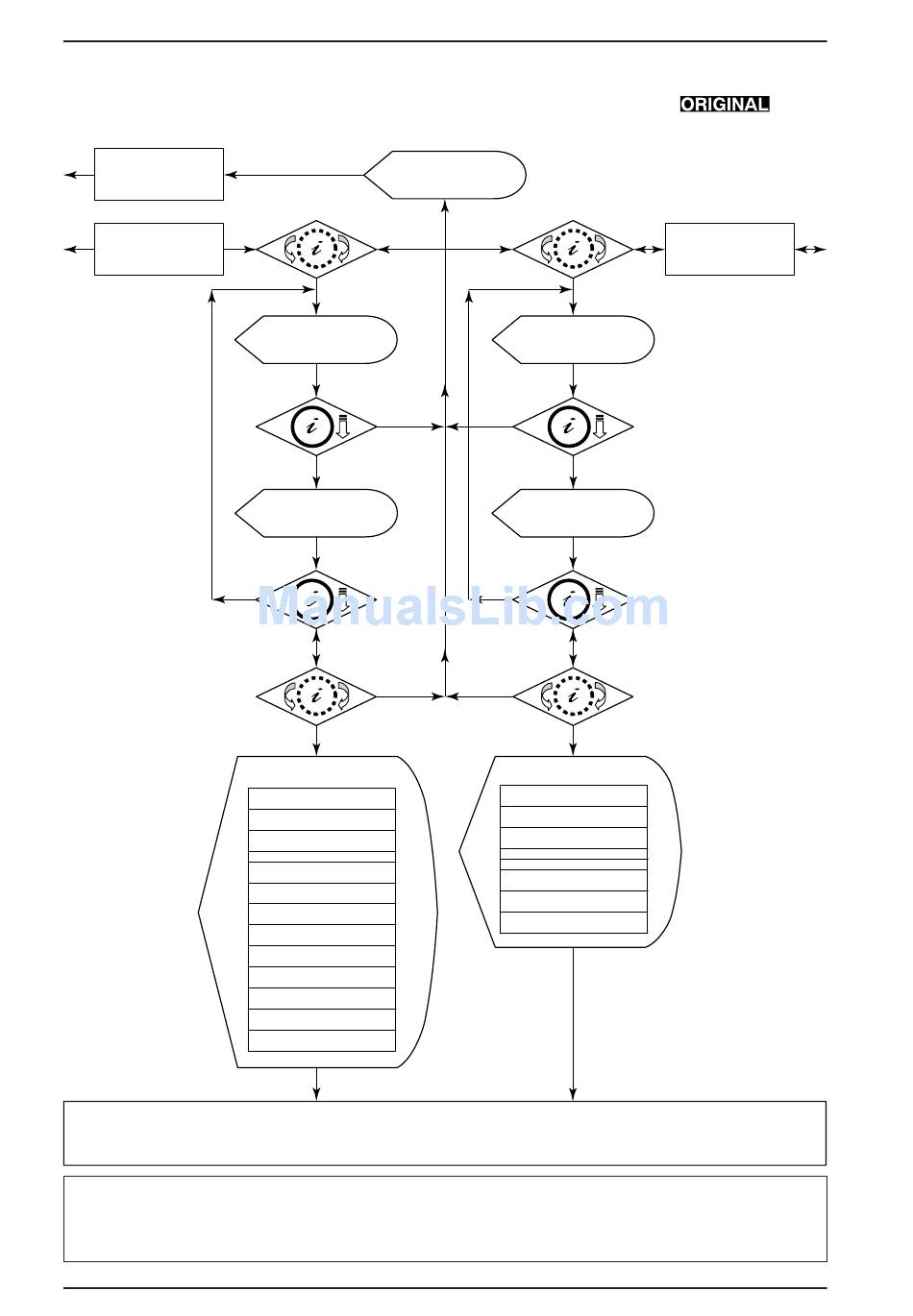

System menu and driving module parameters

Access to
SETUP MENU
(See Chapter 5.3.2.1)
Access to
SETUP MENU
(See Chapter 5.3.2.1)
Note:
If the i-button is not pressed for 30 seconds the program automatically switches back to
Activate parameter setup module
(flashing)
The unit must then be restarted as described in Chapter 5.3.2.1.
Page 96 / 171
Activate module
parameter setup
Display
parameter menu
system module?
no
yes
Display
return to SETUP
module selection?
yes
no
no
yes
Display
sel. language: 0
0=German 1=Engl.
scrubber model
BR/BD-100/250R
beacon active du
ring reversion = 0
time to standby:30 Min
min. DOD-voltage.
32,4V = 1,8V/Z
reset voltage
37,8V = 2,1V/Z
minimum brush
pressure: 40A
move brushhead: 1
0 = switch 1= bloc
on-time shaker
sweep unit: 10s
off-time shaker
sweep unit: 120s
show warnig mes
y = 0 n = 1
agent metering
on = 1 off = 0
ophr: 0h 00m
restoring: 0
Change and save PARAMETERS
(See Chapter 5.3.3)
Display
(flashing)
Display
parameter menu
traction module?
no
yes
Display
return to SETUP
module selection?
yes
no
no
yes
Display
initiate calibration
of gas pedal
max-forward
speed: 6,0 km/h
max-reverse
speed: 3,5 km/h
accel. ramp: 2
decel. ramp: 2
creep speed:
0,4 km/h
max motor
current: 125A
max braking
current: 125A
BR/BD 100/250 R BP / RI
Lifting module
(See Chapter
5.3.2.3)
