Unit Functions; Functional Diagram - Kärcher BR 100 R Service Manual

BR/BD 100/250 R BP / RI
3.1

Functional diagram

1
23
22
21
20
19
18
17
16

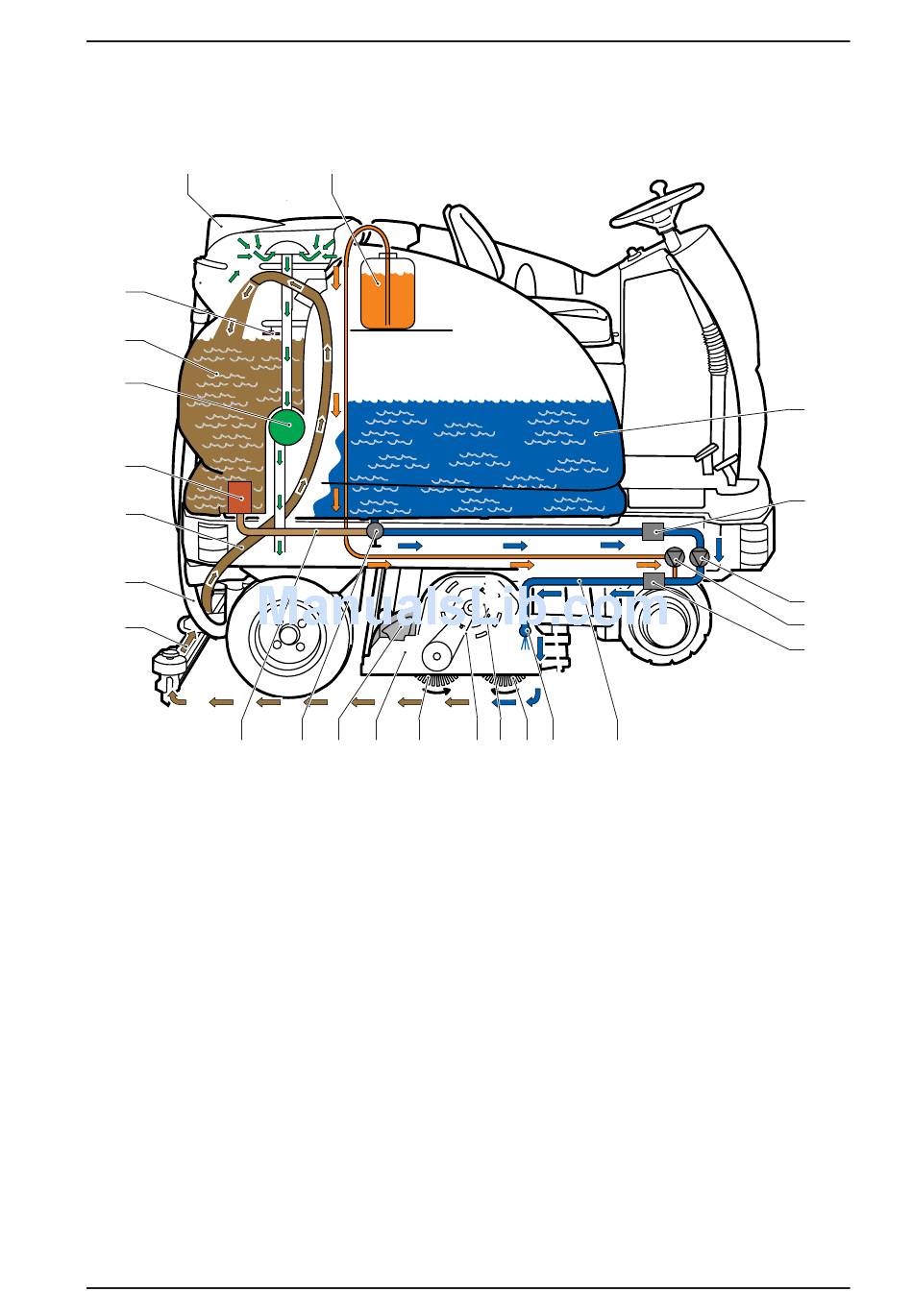

1 Cover, dirty water tank
2 Cleaning agent tank with level switch
(FULL/EMPTY), (optional)
3 Fresh water tank
4 Water filter, fresh water
5 Water pump (M5)
6 Cleaning agent metering pump (M6)
7 Metering valve (Y2), fresh water
8 Fresh water hose to brush head
9 Water distribution tube
10 Brush roller (2x) (rotational direction
towards each other)
11 Brush motors (M2, M3)
12 Drive belt
Service Manual 08.2007
2
15 14 13 10
9
12 11 10 8
13 Brush head (BR version)
14 Coarse dirt container (BR version)
15 Switchover valve to recycling mode
(optional)
16 Recycling water hose to switchover valve
(optional)
17 Suction beam
18 Drain hose, dirty water
19 Suction hose
20 Filter for recycling mode (optional)
21 Suction motor (M4, EC Longlife)
22 Dirty water tank
23 Float switch (S11)

Unit functions

3
4
5
6
7
