Basic settings and service procedures
5.3 Setup menu
5.3.1.2

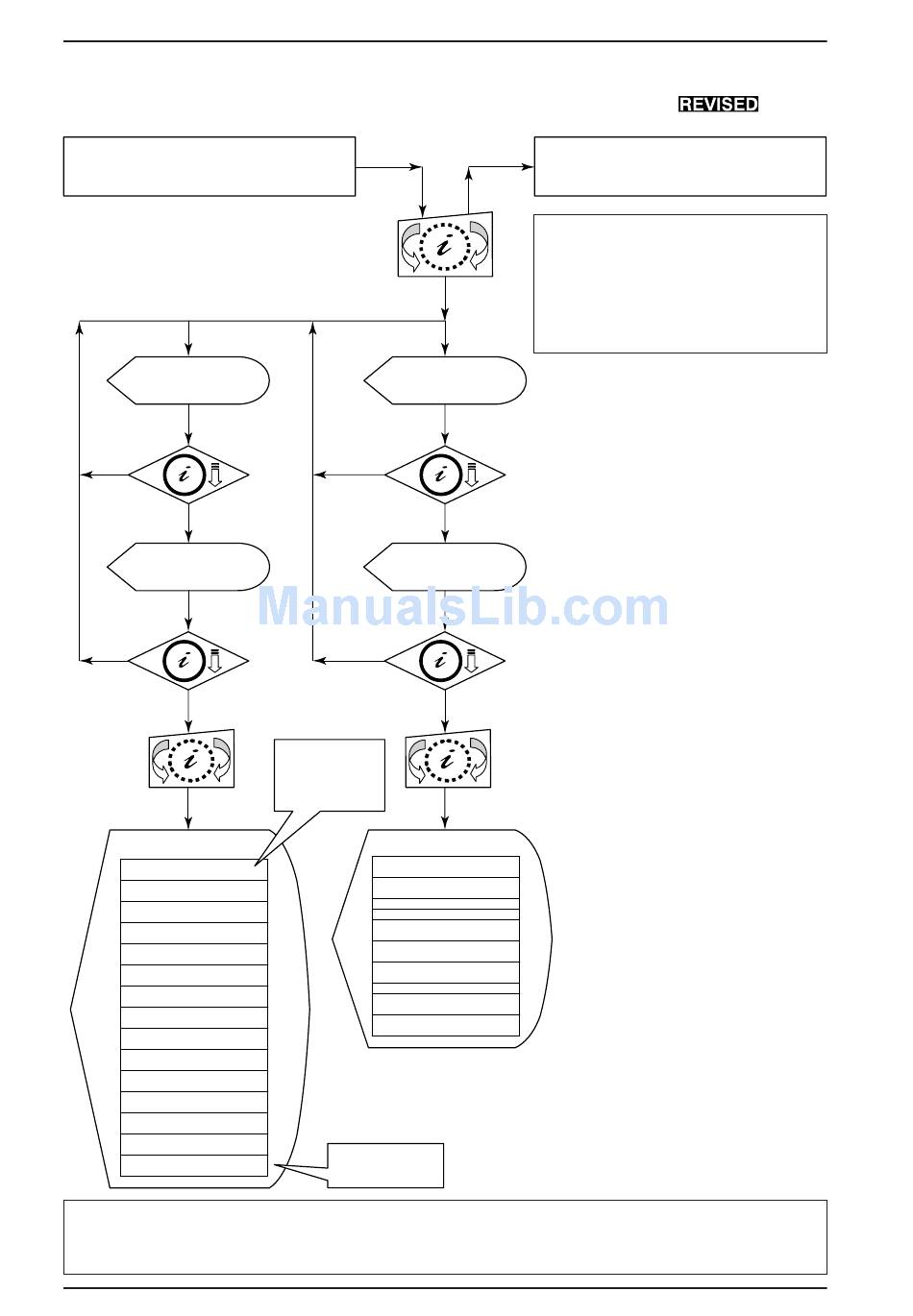

System menu and driving module parameters

Access to the setup menu
(See chapter 5.3.1.1)
Display
Parameter menu
system parameter?
no
yes
Display
Return to setup
module selection?
yes
no
Display
Language selection: 0
0=German 1=Engl.
Machine model
BR100/250RI
Beacon lights during
reverse travel 0
Standby time: 30 min
Discharge voltage
32.4 V =1.80 V/Z
Reset voltage
37.8V =2.1V/Z
Min brush pressure 40A
Lifting motor brush 1
0=ES 1=Block
Filter shake timePre-
sweep 15s
Filter rest time
Pre-sweep 120s
Main brush after run-
ning time from stop:3s
Brush fan after running
from stop :5s
Warning? 0=Yes 1=no 0
Chemicals metering
On=1; Off=0 0
OpHrs: 0h00m
Backup load?: 0
Note:
If the I-button is turned in an anti-clockwise direction the cursor works in the opposite direction, i.e. the menu is called
up from the last to the first parameter. The last saved cursor can be called up again after quitting the menu, e.g. by
switching back to the standard display (battery display).
Page 92 / 171
Display
Parameter menu
drive module?
no
yes
Display
Return to setup
module selection?
yes
no
Initialisation:
Parameter setup menu
In the setup menu the
cursor
always starts at language
Display
Max speed Forwards:
6.0 km/h
Max speed Reverse:
3.5 km/h
Starting ramp:
Braking ramp:
Max motor current:125A
Max braking
current:125A
Overload limit:
Gas poti type:
Gas poti supply
Motor constant:
0.045 m/(Vs)
Load operating hours
counter backup
See chapter 5.3.4
BR/BD 100/250 R BP / RI
Cleaning modul parameters
and lifting modul parameters
(See chapter 5.3.1.3)
If the i-button is not pressed within 30 seconds
the program automatically switches to
Battery: E.......F
Water/C: E.......F
Then restart as described in Chapter 5.3.1.1
2
4
70 A
1
8.0V
Service Manual 08.2007
Note:
