4.8 Lifting module (A4/1) (optional) and cleaning module (A3/1)
(optional)
18
16

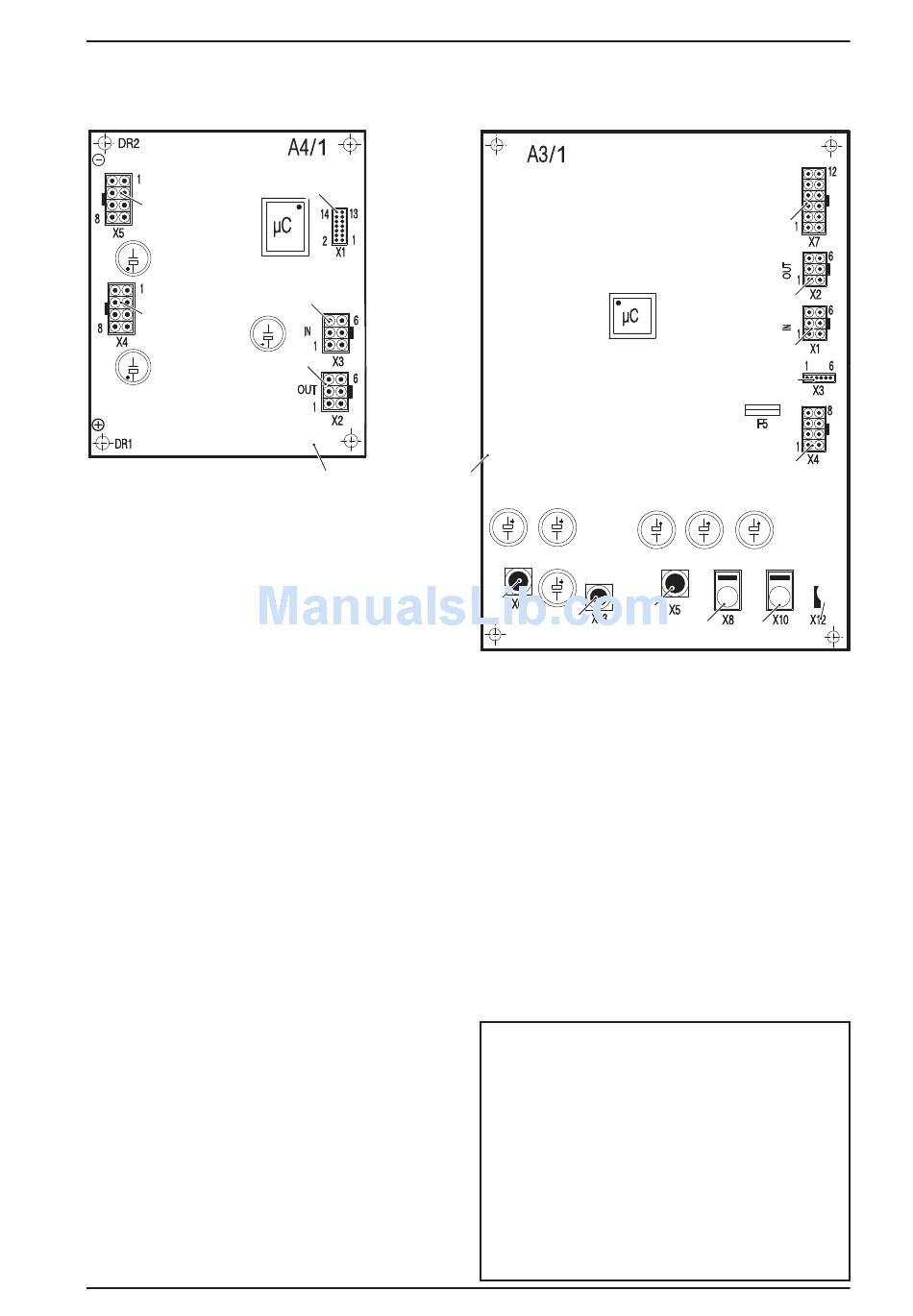

Lifting module (A4/1), (optional)
1 Terminal strip (X7/A3/1)
2 Terminal strip (X2/A3/1)
3 Terminal strip (X1/A3/1)
4 Programming plug (X3/A3/1)
5 Terminal strip (X4/A3/1)
6 Terminal strip (X12/A3/1)
7 Connecting terminal (X10/A3/1), suction
motor (M4)
8 Connecting terminal (X8/A3/1), brush
motor (M2)
9 Connecting terminal (X5/A3/1), battery-
negative cleaning module (A3/1)
10 Connecting terminal (X13/A3/1), brush
motor (M3)
Service Manual 08.2007
17
15
14
19 13
Modular Electronic Control Circuits
11
9
10
Cleaning module (A3/1), (optional)
11 Connecting terminal (X6/A3/1), battery
positive cleaning module (F3)
12 Battery - negative post (Support point)
13 Printed circuit board - cleaning module
(A3/1), optional
14 Terminal strip (X2/A4/1)
15 Terminal strip (X3/A4/1)
16 Terminal strip (X4/A4/1)
17 Programming plug (X1/A4/1)
18 Terminal strip (X5/A4/1)
19 Printed circuit board - lifting module
(A4/1), optional
Note:
Connections at the relevant terminal strips
and performance values for fuses - see
circuit diagram 0.088-734
Tightening torque:
M5 (press-fitted connection) (10): 2,2 Nm
M6 (press-fitted connection)
(9), (11):
M8 threaded bolt:
M10 threaded bolt:
1
2
3
4
5
6
8
7
3,9 Nm
5,5 Nm
17,0 Nm
