6.1.2 Water volume too low

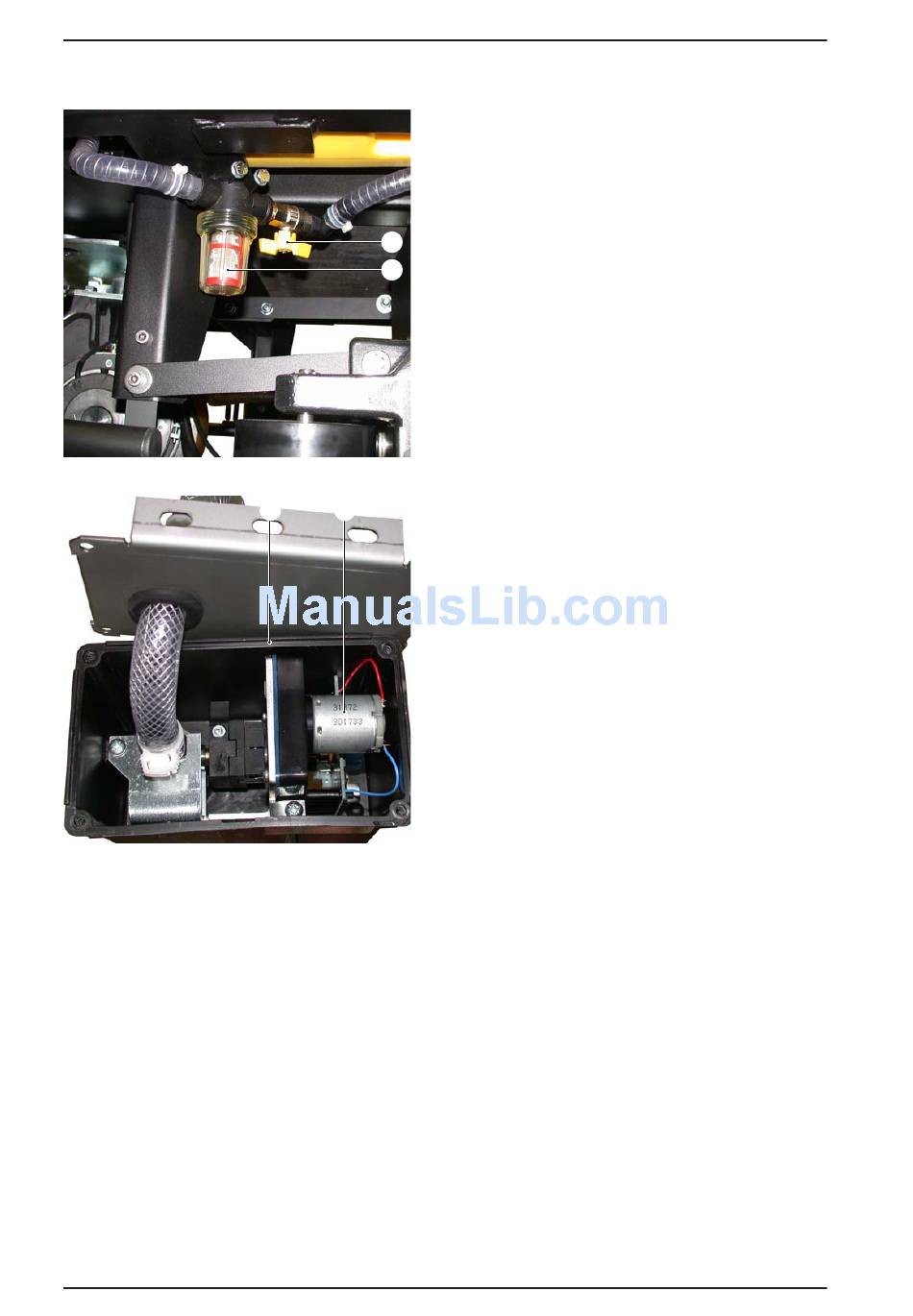

Fresh water filter
Metering valve (Y2)
1 Shut-off valve
2 Water filter with housing
3 Servo motor, metering valve (Y2)
4 Metering valve (Y2)
Page 122 / 171
1
2
4 3
BR/BD 100/250 R BP / RI
Fill fresh water tank
– Open the cover of the fresh water tank and fill
with fresh water and cleaning agent.
Check/clean/replace water filter
– Remove the water filter housing (2) .
– Clean/replace the filter if necessary.
Check water hose to brush head for
blockage/kink and check/remove
Check water hose from tank up to brush head for
blockage. Remove any kinks in the hose.
Ensure the hose is laid correctly, especially in
the BR version.
Check the function of the metering
valve (Y2) /replace
Check the function of the servo motor (3) of the
metering valve (Y2) (4), replace if necessary.
