2.5 Water system

2
Water filter
5
Cleaning agent metering pump (M6) and water
pump (M5)
8
Cleaning agent canister (optional)
Page 16 / 171
1
3
4
6
7
BR/BD 100/250 R BP / RI

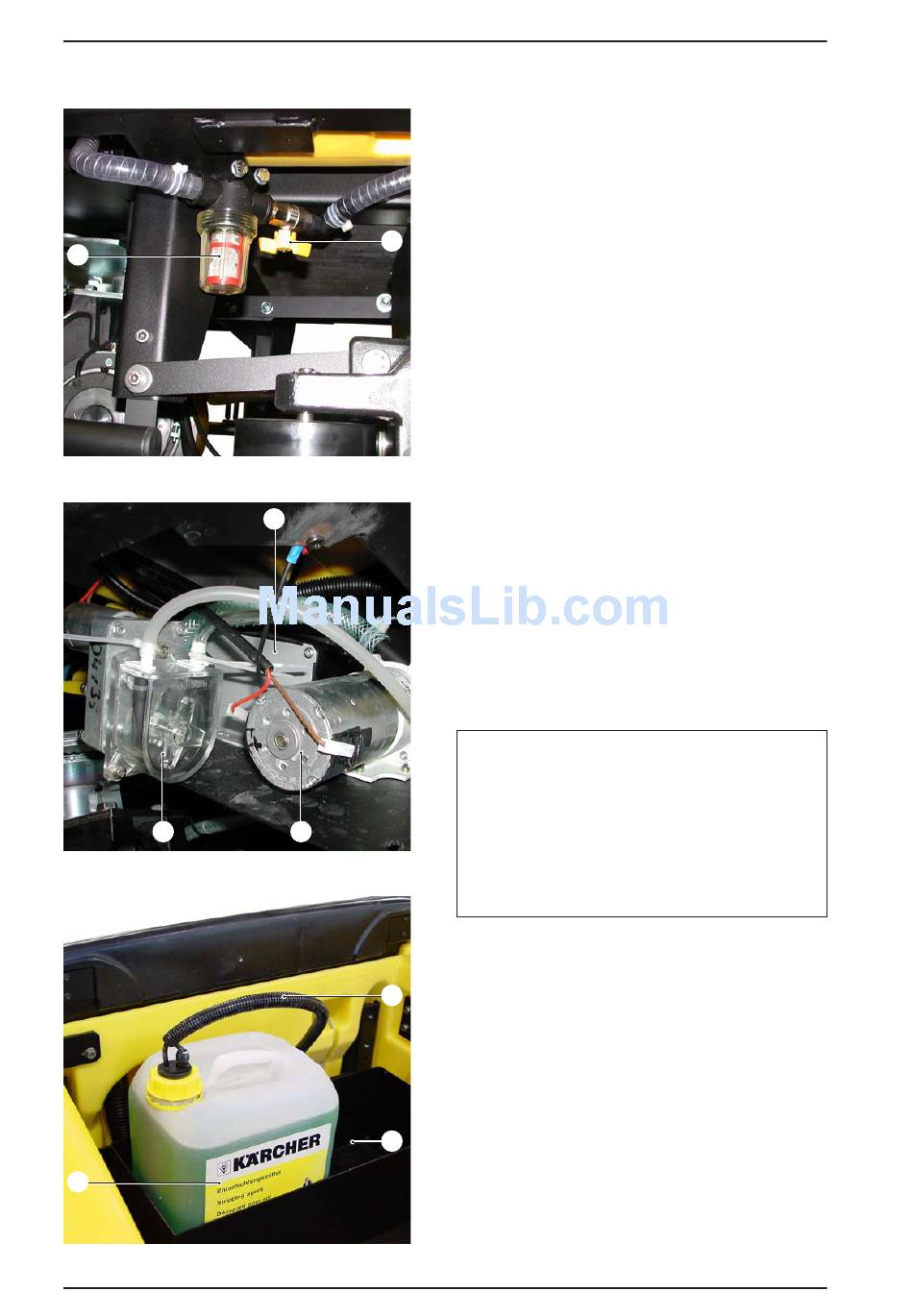

Water filter
The water filter (2) is located on the front left-
hand side under the fresh water tank.
It filters the fresh water to protect the water pump.
Water pump (M5) and Cleaning agent mete-
ring pump (M6)
The water pump (3) and the cleaning agent me-
tering pump (4) are located to the left at the front
next to the steering head in the direction of travel.
The water pump (3) pumps the fresh water to the
brush head.
The cleaning agent metering pump (4) pumps
the cleaning agent to the injection point in the
water inlet hose to the brush head.
Note
The cleaning agent metering pump (M6) is
deactivated as a standard (see Chapter 3.3.9
/ 5.3.5).
The cleaning agent metering can be
activated in the setup menu „system
parameters" (see Chapter 5.3).
Cleaning agent canister (optional)
In the space (7) behind the driver's seat max 2
cleaning agent canisters each with 10 litre can
be fitted.
1 Shut-off valve
2 Water filter
3 Metering valve (Y2)
4 Water pump (M5)
5 Cleaning agent metering pump (M6)
(optional)
6 Cleaning agent suction hose with float
7 Space for cleaning agent canister
8 Cleaning agent canister (optional)
