Basic settings and service procedures

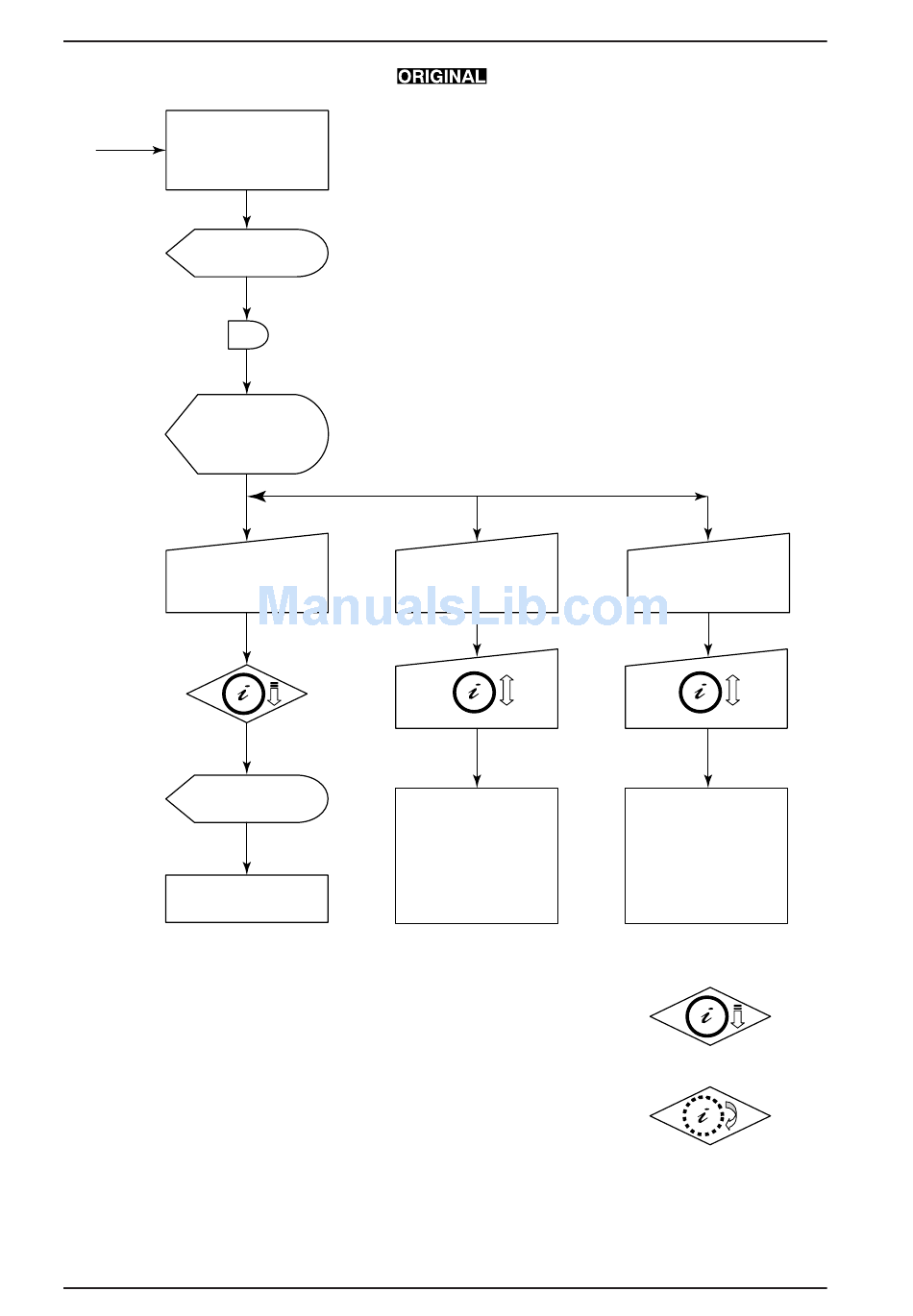

5.2.4 Test mode - calibration

Access to
TEST-MODE
(see chapter 5.2.1)
Display
TESTER-MODE
adjustment
>3sec
Display
TESTER-MODE
adjustment
(flashing)
Switch program switch (S9) to
Pos 1 Drive
LED-Service
(yellow) active
Brush motor (M2, M3)
active
Page 90 / 171
Switch program switch (S9) to
Pos 2 Scrub-Vacuum
Brush head lifting motor (M20)
Moves according to key actuation
down to the limit position
and is switched off by the
electronic current limiter or limit
switch (S20/S21)
BR/BD 100/250 R BP / RI
Switch program switch (S9) to
Pos 3 Wet-Scrub
Suction beam lifting motor
(M30)
Moves according to key
actuation up to the limit
position and is switched off
by the limit switch (S30/S31)
Key: Info button
Keying function
Rotary function
Service Manual 08.2007
