BR/BD 100/250 R BP / RI

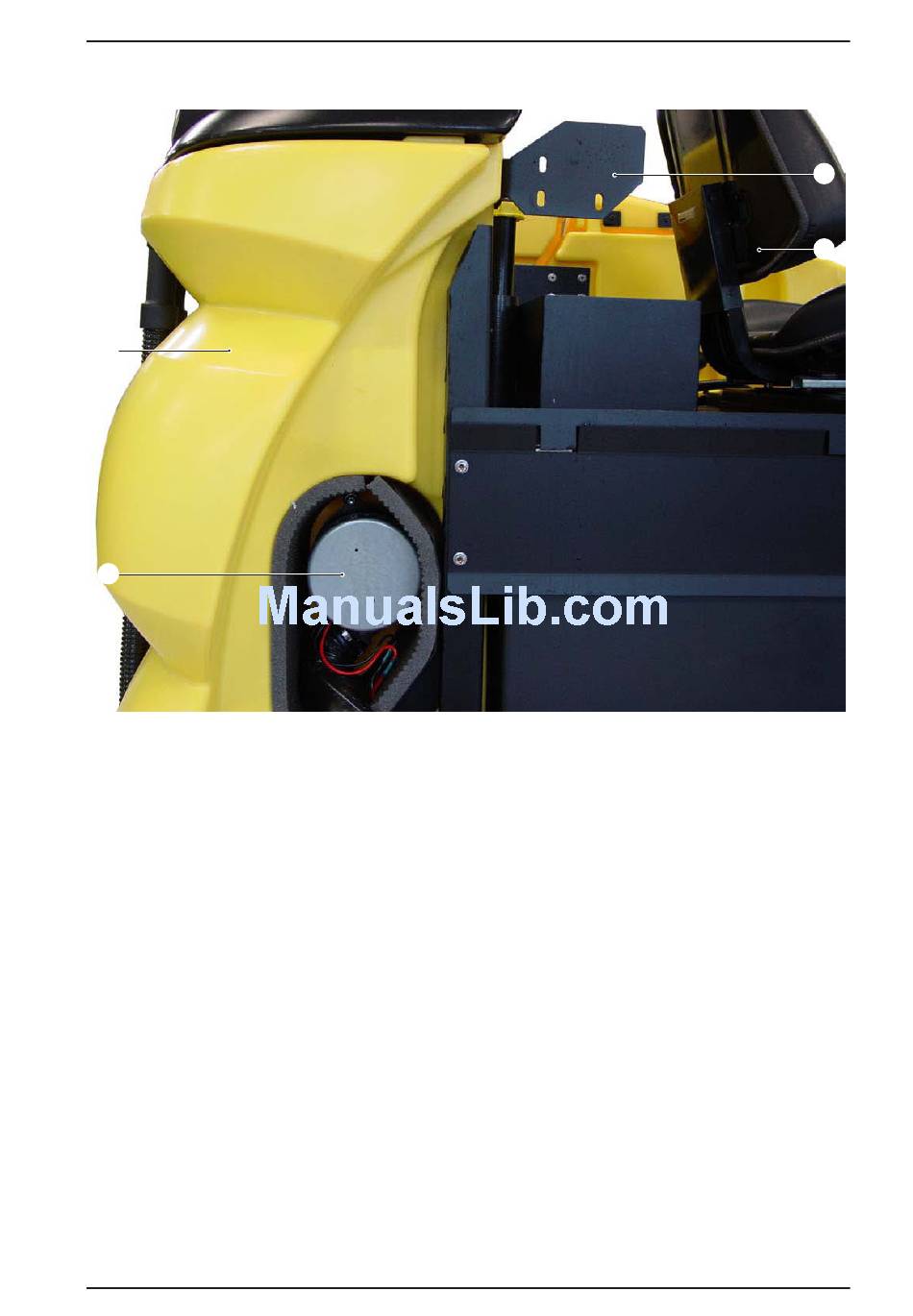

2.4 Suction motor (M4)
4
3
1 Mounting plate, right-hand fresh water
tank
2 Seat
3 Suction motor (M4, EC Longlife)
4 Dirty water tank
Service Manual 08.2007
Suction motor (M4)
The suction motor (3) (EC = electronically con-
trolled) generates a vacuum in the dirty water
tank, with which the dirty water is drawn in from
the suction beam.
The suction motor (3) is located behind the right
fresh water tank:
– Drain and remove the fresh water tank.
– Remove the three retaining screws on the
mounting plate (1).
– Push the fresh water tank forwards slightly
and remove upwards.
Technical features
1
2
