Dirty Water Tank With Recycling System (Optional) - Kärcher BR 100 R Service Manual

BR/BD 100/250 R BP / RI

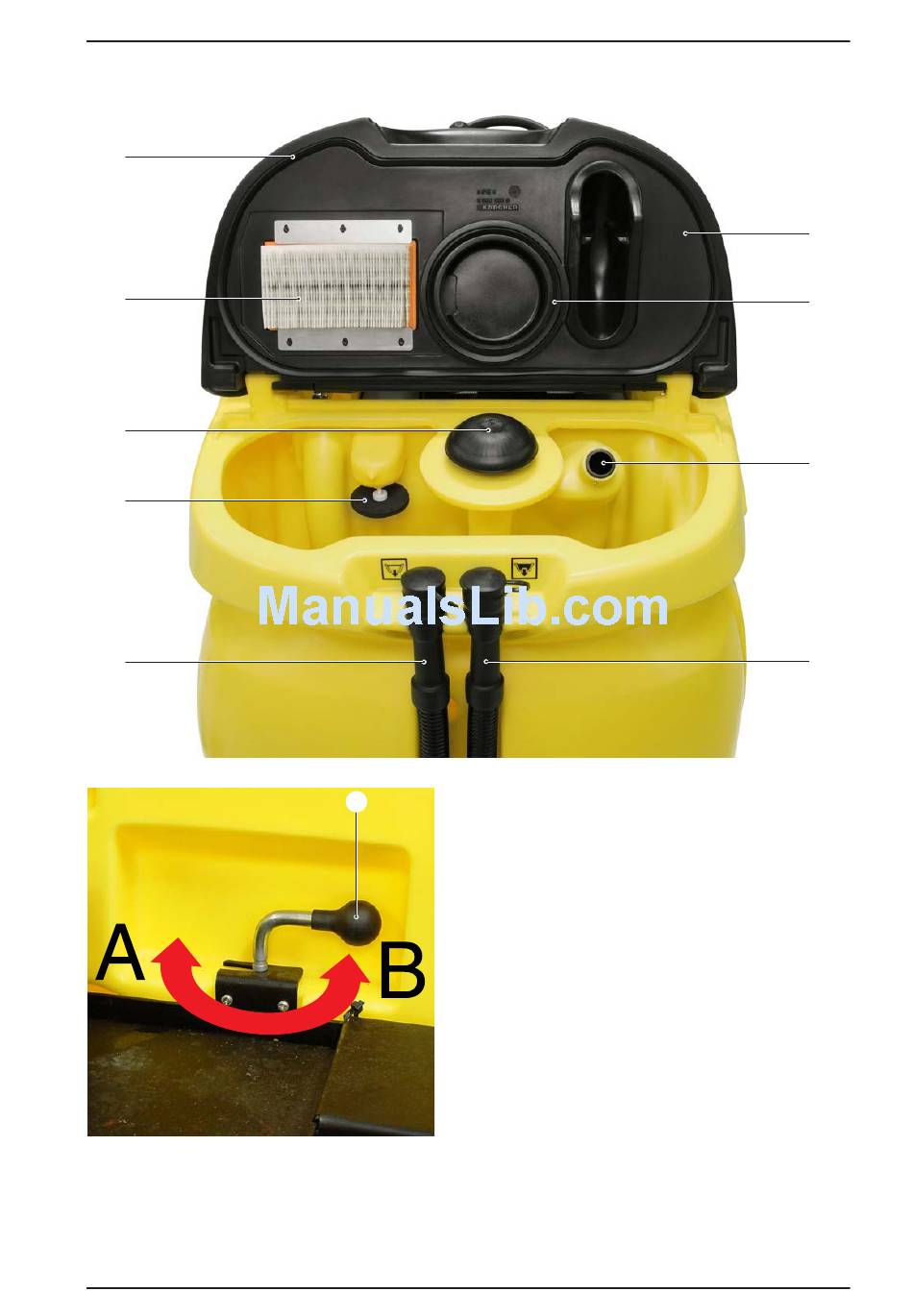

2.6 Dirty water tank with recycling function (optional)
9
8
7
6
5
Lever for recycling mode (optional)
Service Manual 08.2007
Recycling mode (optional)
10
The lever (10) for recycling mode is located on
the left next to the driver's seat.
The lever (10) can be used to switch the recycling
mode ON /OFF.
Lever setting A = recycling mode
Lever setting B = fresh water mode
1
2
3
4
5
6
7
8
9
10 Lever for recycling mode (optional)
Technical features
Tank lid
Seal, suction motor air intake
Suction hose from suction beam
Drain hose, dirty water tank
Drain hose, fresh water tank
Float switch (S11)
Air intake, suction motor
Flat pleated filter
Seal, tank cover
1
2
3
4
Page 19 / 171
