BR/BD 100/250 R BP / RI

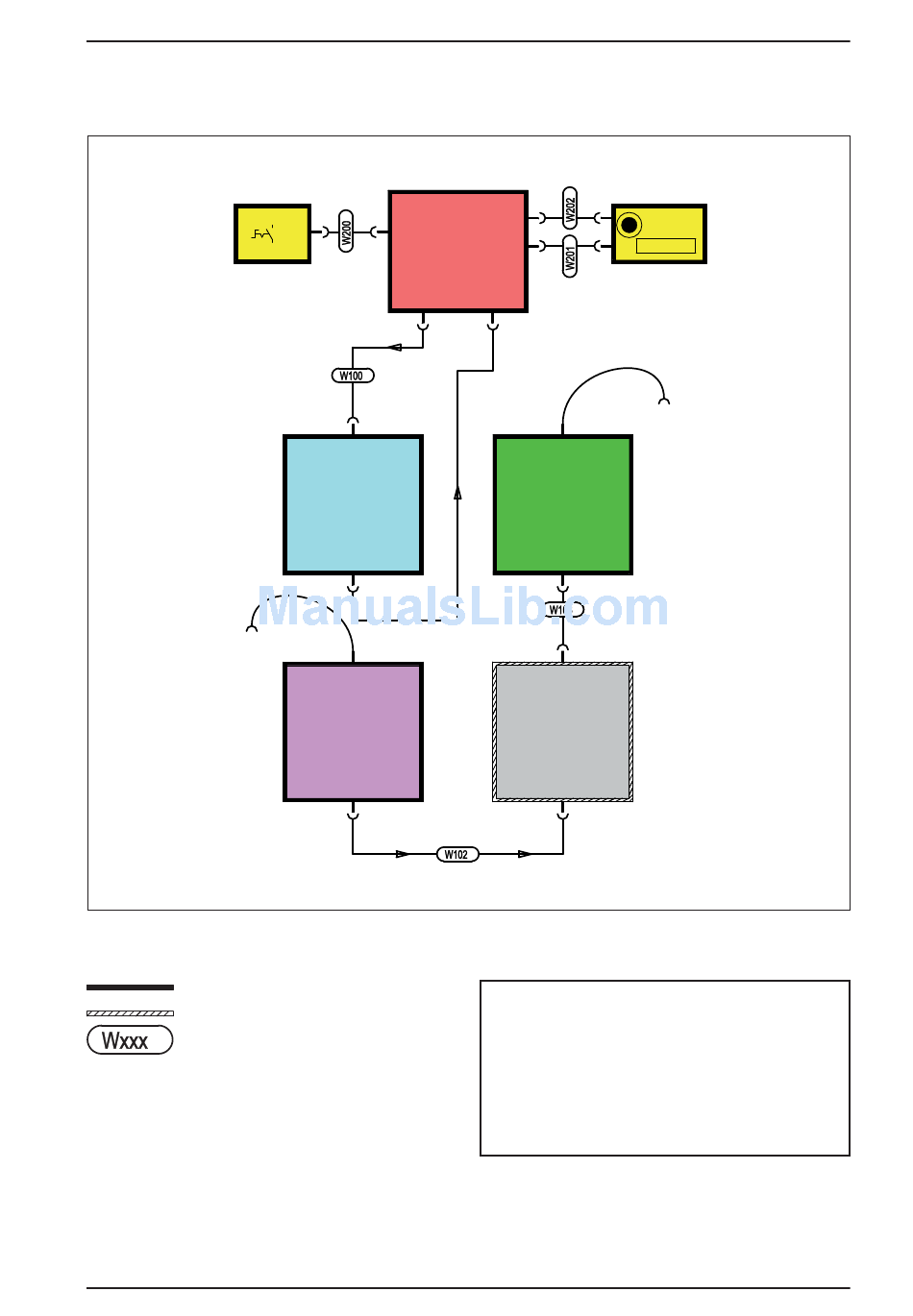

4.4 Emergency operation (driving) using the example of the
BR/BD 100/250 R
S9
Kärcher bus with RS 485 communication core
Basic unit
Accessories
Kärcher bus cable 1:1, (6-pin, with
integrated RS 485 bus system)
Service Manual 08.2007
A1
KOPF-CPU
MASTER-MODULE
CPU-MODULE
X4/OUT
A2
X7/IN
FAHRMODUL
TRACTION-MODULE
MODULE DE MOTEUR
X8/OUT
A4
X3/IN
HUBMODUL
LIFTING-MODULE
MODULE DE MOTEUR
DE COURSE
X2/OUT
Modular Electronic Control Circuits
A0
X3/IN
A3
X2/OUT
CLEANMODUL
CLEANING-MODULE
MODULE DE
NETTOYAGE
X1/IN
A5
X3/OUT
ZUBEHÖRMODUL
ACCESSORY-MODULE
MODULE
D´ ACCESSOIRES
X2/IN
Note:
If modules are defective (e.g. A3, A4, A5)
the unit can be driven if the driving module
(A2) is directly connected to the head CPU
module (A1) (see figure). Before this,
however, the fuses must be removed from
the connected modules (here A3, A4, A5).
Page 69 / 171
