Paper Exit Guide Removal - Lexmark C925 Service Manual

5041-030

Paper exit guide removal

1.
Remove the top cover.
2.
Remove the op panel paper exit guide. See
3.
Disconnect the paper exit / bin full sensor cable from CN7 on the printhead controller board.
4.

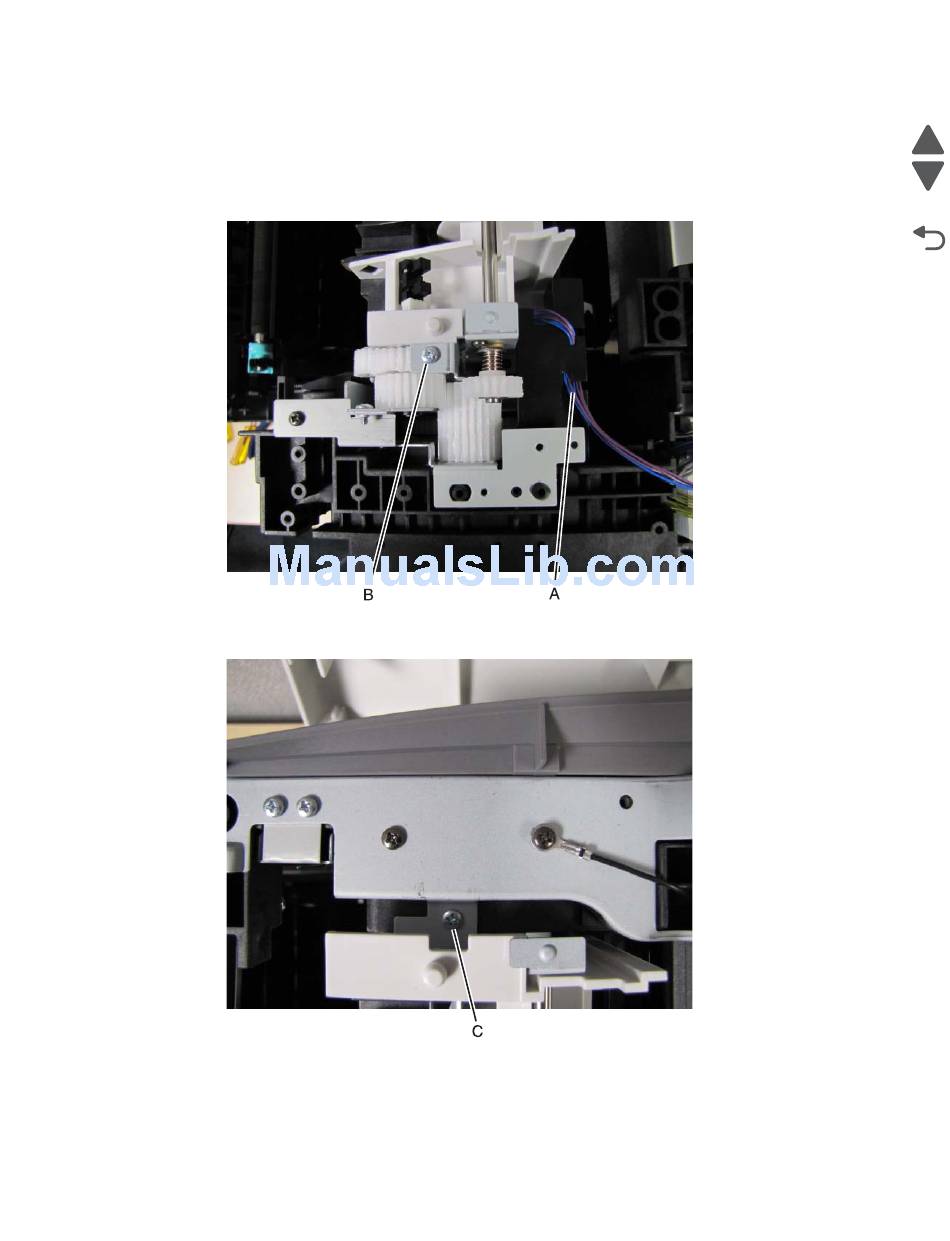

Thread the cable (A) through the fuser fan duct.
5.
Remove the screw (B) securing the paper exit guide to the sub drive unit.
6.
Remove the screw (C) securing the paper exit guide to the rear of the printer frame.
7.
Pull the fuser duct back to provide some clearance for the paper exit unit.
4-24
Service Manual
"Op panel paper exit guide removal" on page
Previous
4-22.
