Key Input Interrupt

The key input interrupt circuit has two interrupt systems (FPK1 and FPK0) and a port group can be selected for
generating each interrupt factor.
The interrupt condition can also be set by software.
Figure 9.4 shows the configuration of the port input interrupt circuit.
FPK0 system
K50
K60
P00
P20
Input port selection
SPPK0
Input comparison
register SCPK0
Address
Input mask
register SMPK0
Address
K50, K60, P00, P20
K51, K61, P01, P21
K52, K62, P02, P22
K53, K63, P03, P23
K54, K64, P04, P24
FPK1 system
K60
K64
P04
P24
Input port selection
SPPK1
Input comparison
register SCPK1
Address
Input mask
register SMPK1
Address
K60, K64, P04, P24
K61, K65, P05, P25
K62, K66, P06, P26
K63, K67, P07, P27
B-III-9-14

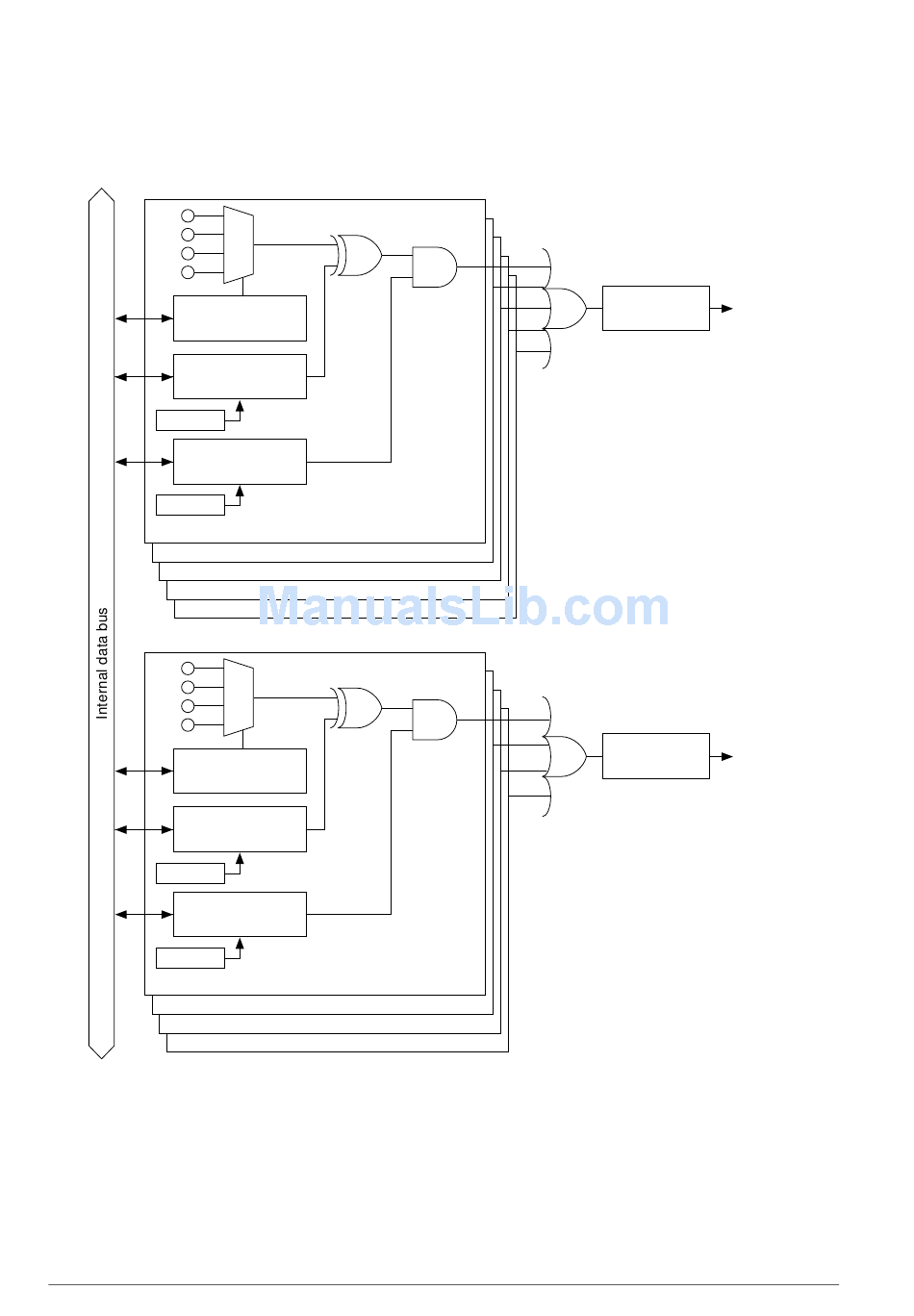

Figure 9.4 Configuration of Key Input Interrupt Circuit
