IV-2 A/D CONVERTER

Features and Structure of A/D Converter

The Analog Block contains an A/D converter with the following features:
• Conversion method: Successive comparison
• Resolution: 10 bits
• Input channels: Maximum of 8
• Conversion time: Maximum of 10 µs (when a 2-MHz input clock is selected)
• Conversion range: Between V
• Two conversion modes can be selected:
Normal mode: Conversion is completed in one operation.
Continuous mode: Conversion is continuous and terminated through software control.
Continuous conversion of multiple channels can be performed in each mode.
• Four types of A/D-conversion start triggers can be selected:
Triggered by the external pin (#ADTRG)
Triggered by the compare match B of the 16-bit programmable timer 0
Triggered by the underflow of the 8-bit programmable timer 0
Triggered by the software
• A/D conversion results can be read out from a 10-bit data register.
• An interrupt is generated upon completion of A/D conversion.

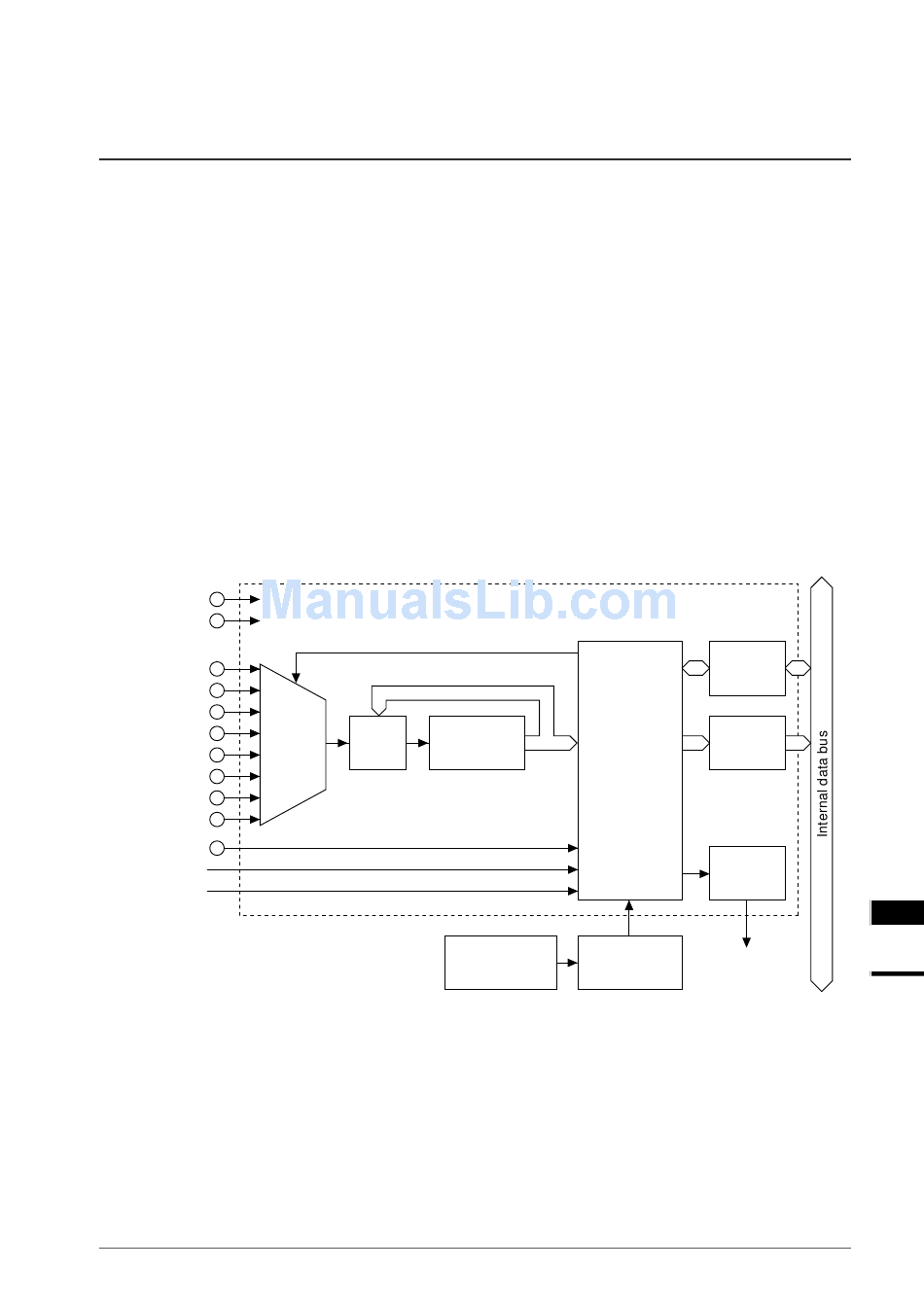

Figure 2.1 shows the structure of the A/D converter.
