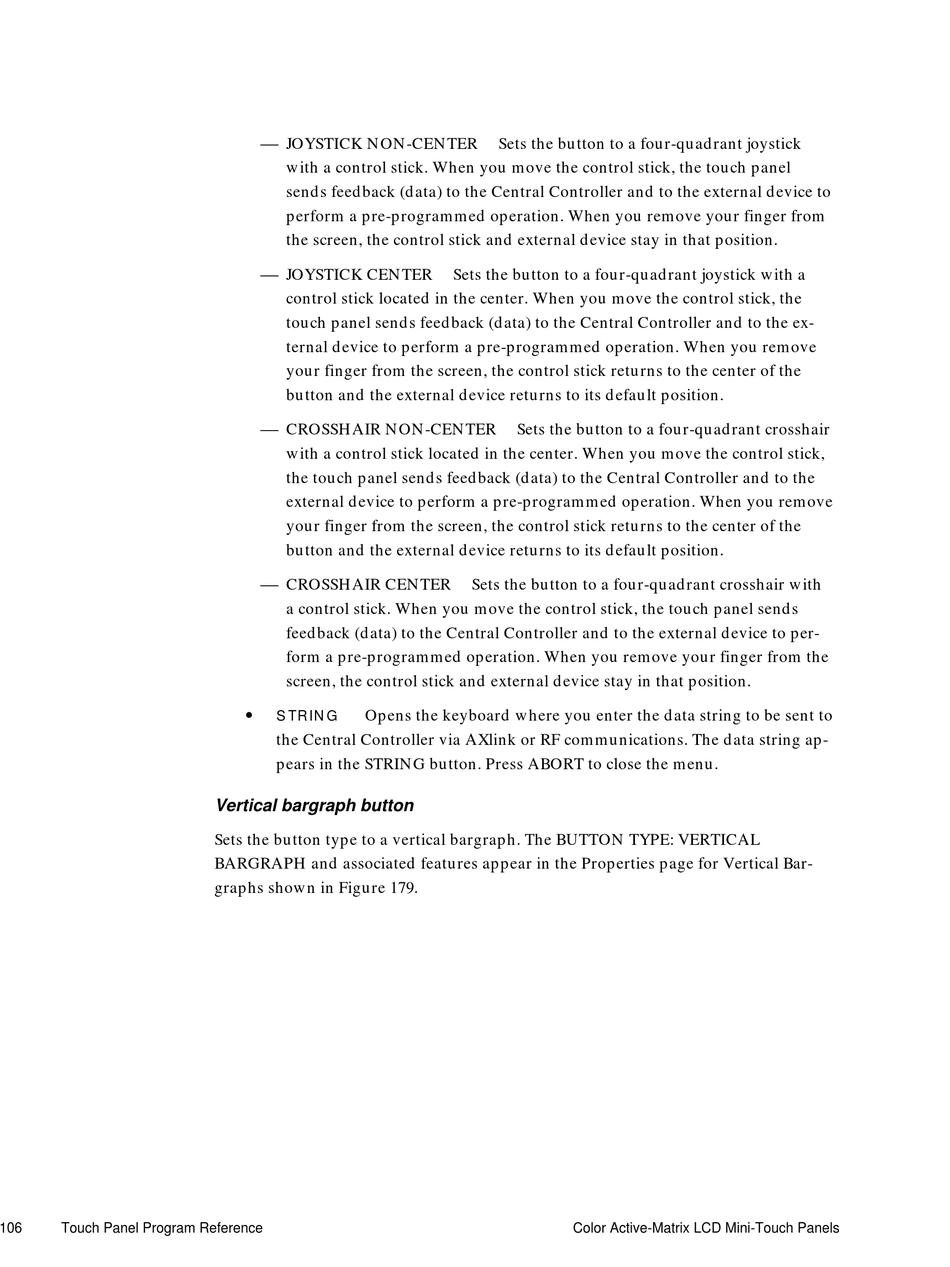

JOYSTICK NON-CENTER
with a control stick. When you move the control stick, the touch panel
sends feedback (data) to the Central Controller and to the external device to
perform a pre-programmed operation. When you remove your finger from
the screen, the control stick and external device stay in that position.
JOYSTICK CENTER
control stick located in the center. When you move the control stick, the
touch panel sends feedback (data) to the Central Controller and to the ex-
ternal device to perform a pre-programmed operation. When you remove
your finger from the screen, the control stick returns to the center of the
button and the external device returns to its default position.
CROSSHAIR NON-CENTER
with a control stick located in the center. When you move the control stick,
the touch panel sends feedback (data) to the Central Controller and to the
external device to perform a pre-programmed operation. When you remove
your finger from the screen, the control stick returns to the center of the
button and the external device returns to its default position.
CROSSHAIR CENTER
a control stick. When you move the control stick, the touch panel sends
feedback (data) to the Central Controller and to the external device to per-
form a pre-programmed operation. When you remove your finger from the
screen, the control stick and external device stay in that position.
STRING
Opens the keyboard where you enter the data string to be sent to
the Central Controller via AXlink or RF communications. The data string ap-
pears in the STRING button. Press ABORT to close the menu.

Vertical bargraph button

Sets the button type to a vertical bargraph. The BUTTON TYPE: VERTICAL
BARGRAPH and associated features appear in the Properties page for Vertical Bar-
graphs shown in Figure 179.
Sets the button to a four-quadrant joystick
Sets the button to a four-quadrant joystick with a
Sets the button to a four-quadrant crosshair
Sets the button to a four-quadrant crosshair with
