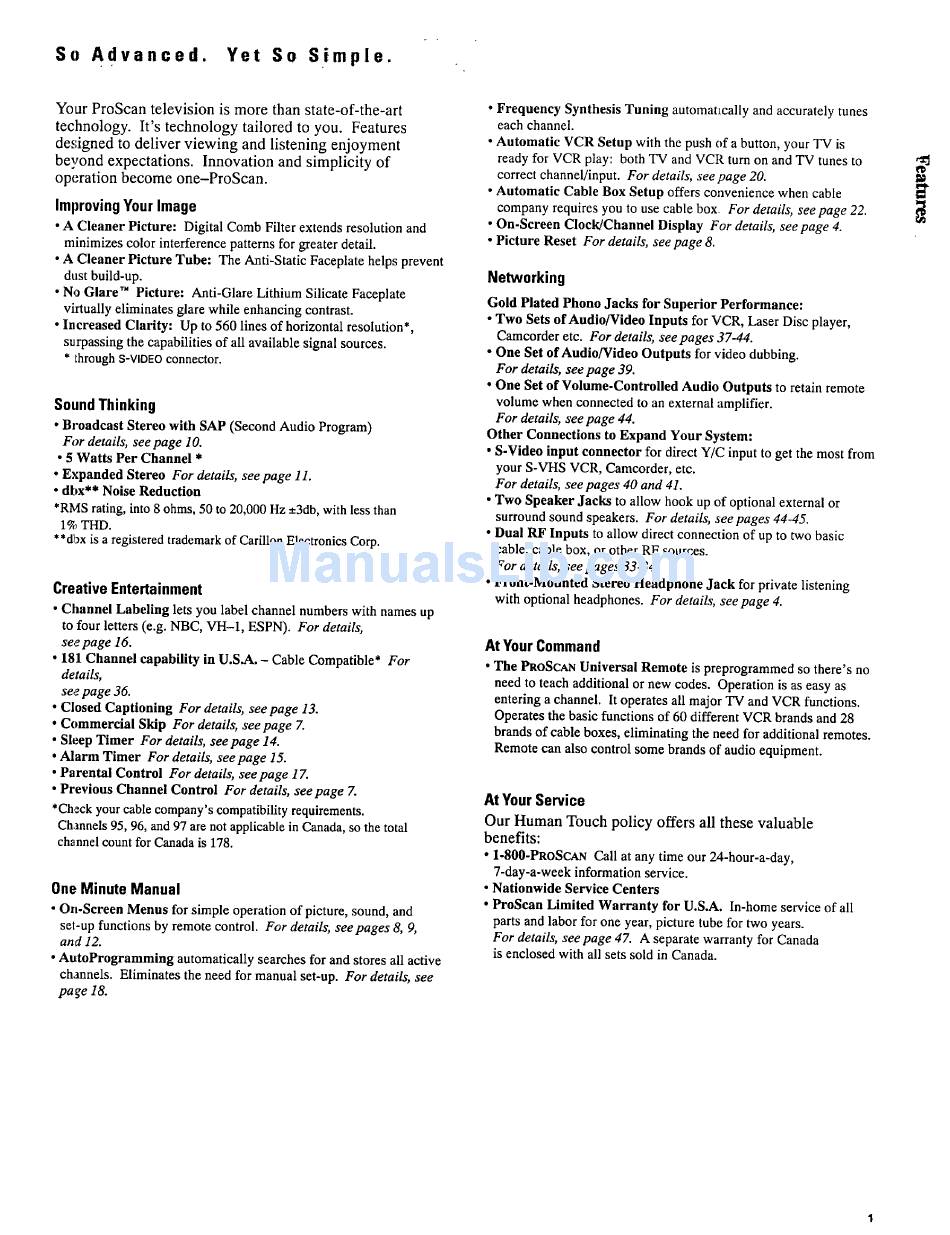

ProScan PS20112 Owner's Manual page 5

So Advanced. Yet So Simple.
Your ProScan television is more than state-of-the-art
technology. It's technology tailored to you. Features
designed to deliver viewing and listening enjoyment
beyond expectations. Innovation and simplicity of
operation become one-ProScan.
Improving Your Image
• A Cleaner Picture: Digital Comb Filter extends resolution and
minimizes color interference patterns for greater detail.
• A Cleaner Picture Tube: The Ami-Static Faceplate helps prevent
dust build-up.
• No Glare T" Picture: Anti-Glare Lithium Silicate Faceplate
virtually eliminates glare while enhancing contrast.
• Ix_creased Clarity: Up to 560 lines of horizontal resolution*,
surpassing the capabilities of all available signal sources.
• through S-VIDEO connector.
Sound Thinking
• Broadcast Stereo with SAP (Second Audio Program)
For details, see page 10.
• 5 Watts Per Channel *
• Expanded Stereo For details, see page 11.
• dbx** Noise Reduction
• RMS rating, into 8 ohms, 50 to 20,000 Hz ±3db, with less than
1% THD.
• *dbx is a registered trademark of Carillon Electronics Corp.
Creative Entertainment
• Channel Labeling lets you label channel numbers with names up
to four letters (e.g. NBC, VH-I, ESPN). For details,
see page 16.
• 181 Channel capability in U.S.A. - Cable Compatible* For
details,
see page 36.
• Closed Captioning For details, see page 13.
• Commercial Skip For details, see page Z
• Sleep Timer For details, seepage 14.
• Alarm Timer For details, seepage 15.
• Parental Control For details, seepage 1Z
• Previous Channel Control For details, seepage Z
*Check your cable company's compatibility requirements.
Channels 95, 96, and 97 are not applicable in Canada, so the total
channel count for Canada is 178.
One Minute Manual
• On-Screen Menus for simple operation of picture, sound, and
set-up functions by remote control. For details, seepages 8, 9,
and 12.
• AutoProgramming automatically searches for and stores all active
channels. Eliminates the need for manual set-up. For details, see
page 18.
• Frequency Synthesis Tuning automatically and accurately tunes
each channel.
• Automatic VCR Setup with the push of a button, your TV is
ready for VCR play: both TV and VCR turn on and TV tunes to
correct channel/input. For details, seepage20.
• Automatic Cable Box Setup offers convenience when cable
company requires you to use cable box. For details, seepage 22.
• On.Screen Clock/Channel Display For details, see page 4.
• Picture Reset For details, see page 8.
Networking
Gold Plated Phono Jacks for Superior Performance:
• Two Sets of Audio/Video Inputs for VCR, Laser Disc player,
Camcorder etc. For details, seepages 37-44.
• One Set of Audio/Video Outputs for video dubbing.
For details, see page 39.
• One Set of Volume-Controlled Audio Outputs to retain remote
volume when connected to an external amplifier.
For details, see page 44.
Other Connections to Expand Your System:
• S-Video input connector for direct ¥/C input to get the most from
your S-VHS VCR, Camcorder, etc.
For details, see pages 40 and 41.
• Two Speaker Jacks to allow hook up of optional external or
surround sound speakers. For details, see pages 44-45.
• Dual RF Inputs to allow direct connection of up to two basic
cable, cable box, or other RF sources.
For details, see pages 33-34.
• Front-Mounted Stereo Headphone Jack for private listening
with optional headphones. For details, see page 4.
At Your Command
• The I_oScAN Universal Remote is preprogrammed so there's no
need to teach additional or new codes. Operation is as easy as
entering a channel. It operates all major TV and VCR functions.
Operates the basic functions of 60 different VCR brands and 28
brands of cable boxes, eliminating the need for additional remotes.
Remote can also control some brands of audio equipment.
At YourService
Our Human Touch policy offers all these valuable
benefits:
• 1-800-PRoScAN Call at any time our 24-hour-a-day,
7-day-a-week information service.
• Nationwide Service Centers
• ProScan Limited Warranty for U.S.A. In-homeserviceof all
parts and labor for one year, picture tube for two years.
For details, see page 47. A separate warranty for Canada
is enclosed with all sets sold in Canada.
