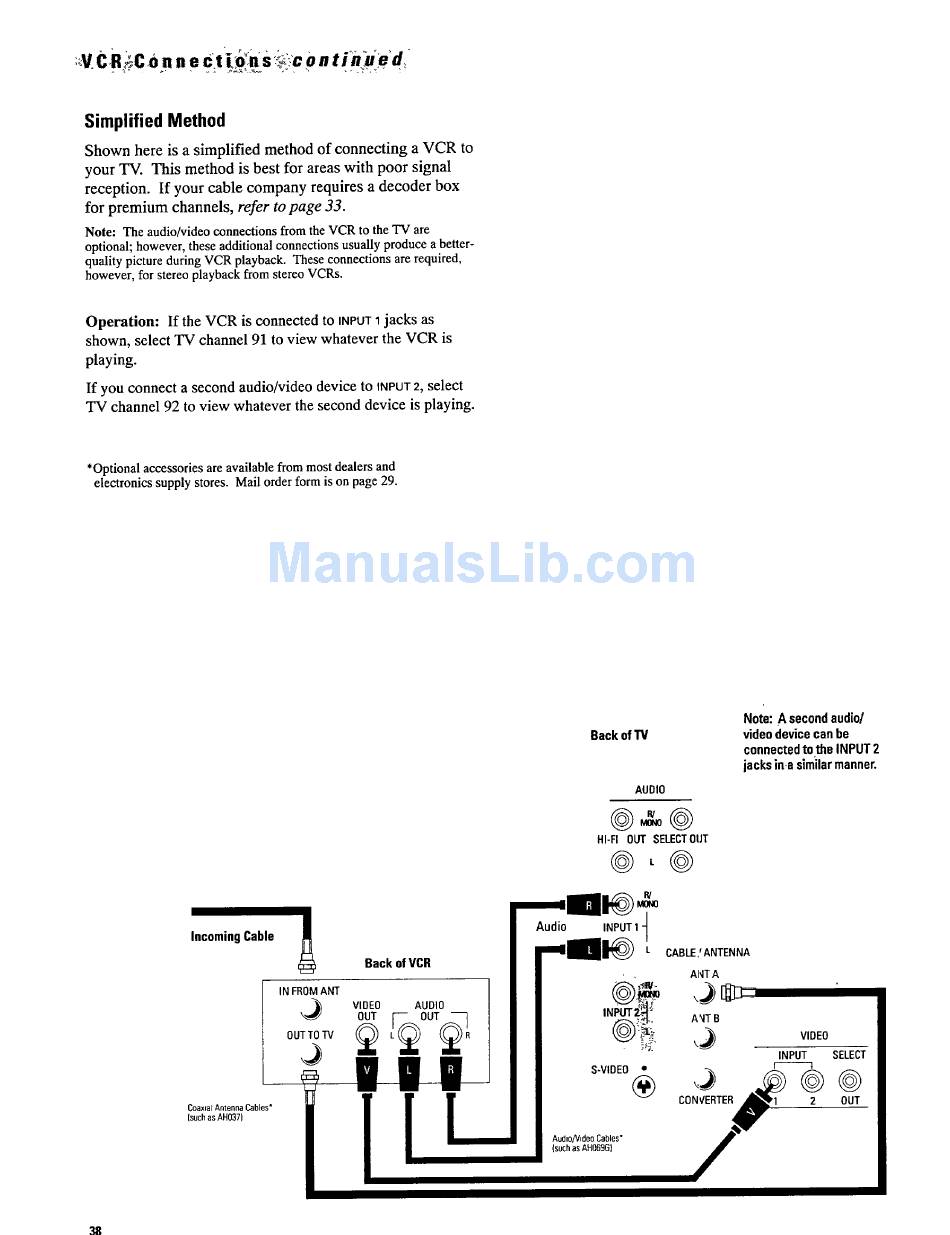

Simplified Method
Shown here is a simplified method of connecting a VCR to
your TV. This method is best for areas with poor signal
reception. If your cable company requires a decoder box
for premium channels, refer to page 33.
Note: The audio/video connections from the VCR to the TV are
optional; however,these additionalconnectionsusually produce a better-
quality picture during VCR playback.
Theseconnections
are required,
however,
for
stereo playback
fromstereoVCRs.
Operation: If the VCR is connected to INPUT 1jacks as
shown, select TV channel 91 to view whatever the VCR is
playing.
If you connect a second audio/video device to INPUT 2, select
TV channel 92 to view whatever the second device is playing.
*Optional accessories are available from most dealers and
electronics supply stores. Mail order form is on page 29.
