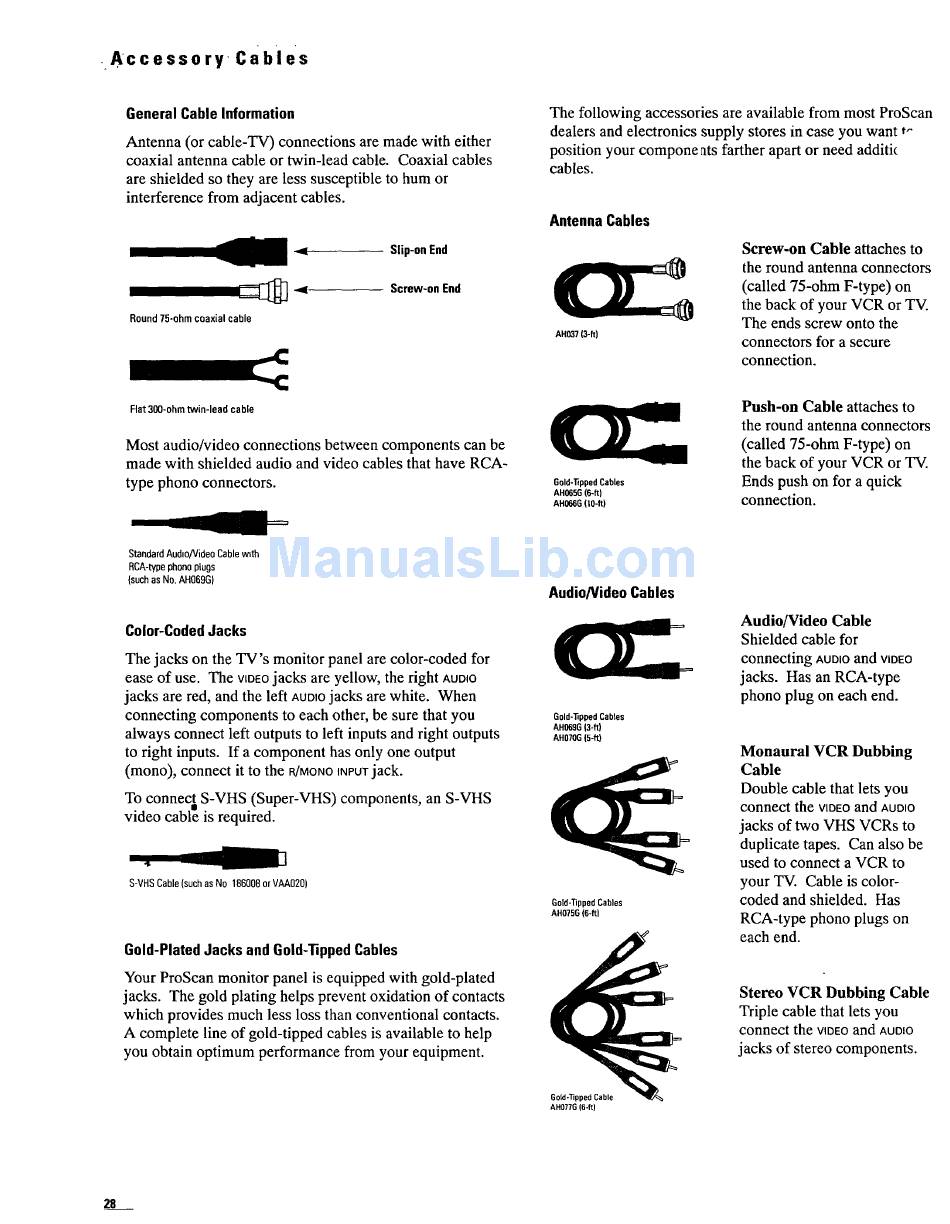

,Accessory Cables
General Cable Information
Antenna (or cable-TV) connections are made with either
coaxial antenna cable or twin-lead cable. Coaxial cables
are shielded so they are less susceptible to hum or
interference from adjacent cables.
-_ Slip-on End
E__ Screw-on End
Round75-ohm coaxial cable
The following accessories are available from most ProScan
dealers and electronics supply stores in case you want tr
position your compone ats farther apart or need additk
cables.
Antenna Cables
AH037 (3-ft)
Screw-on Cable attaches to
the round antenna connectors
(called 75-ohm F-type) on
the back of your VCR or TV.
The ends screw onto the
connectors for a secure
connection.
Flat300-ohm twin-lead cable
Most audio/video connections between components can be
made with shielded audio and video cables that have RCA-
type phono connectors.
Gold-'lipped Cables
AH065G (6-ft)
AH066G (t0-k)
Push-on Cable attaches to
the round antenna connectors
(called 75-ohm F-type) on
the back of your VCR or TV.
Ends push on for a quick
connection.
StandardAudio/Video Cablewtth
RCA-typephonoplugs
{suchas No. AH069G)
Color-CodedJacks
The jacks on the TV's monitor panel are color-coded for
ease of use. The VIDEO j acks are yellow, the right AUDIO
jacks are red, and the left AUDIO jacks are white. When
connecting components to each other, be sure that you
always connect left outputs to left inputs and right outputs
to right inputs. If a component has only one output
(mono), connect it to the a/MONO INPUT jack.
To connect S-VHS (Super-VHS) components, an S-VHS
video cabl_ is required.
S-VHSCable(suchas No 186008or VAA020)
Gold-Plated Jacks and Gold-TippedCables
Your ProScan monitor panel is equipped with gold-plated
jacks. The gold plating helps prevent oxidation of contacts
which provides much less loss than conventional contacts.
A complete line of gold-tipped cables is available to help
you obtain optimum performance from your equipment.
Audio/VideoCables
Gold-lipped Cables
AH069G !3-ft)
AH070G 1540
Gold-'tipped Cables
AH075G (6-ftl
Gold -_pped Cable
AH077G (64t)
Audio/Video Cable
Shielded cable for
connecting AUDIO and VIDEO
jacks. Has an RCA-type
phono plug on each end.
Monaural VCR Dubbing
Cable
Double cable that lets you
connect the VtDEO and AUDIO
jacks of two VHS VCRs to
duplicate tapes. Can also be
used to connect a VCR to
your TV. Cable is color-
coded and shielded. Has
RCA-type phono plugs on
each end.
Stereo VCR Dubbing Cable
Triple cable that lets you
connect the VIDEO and AUDIO
jacks of stereo components.
