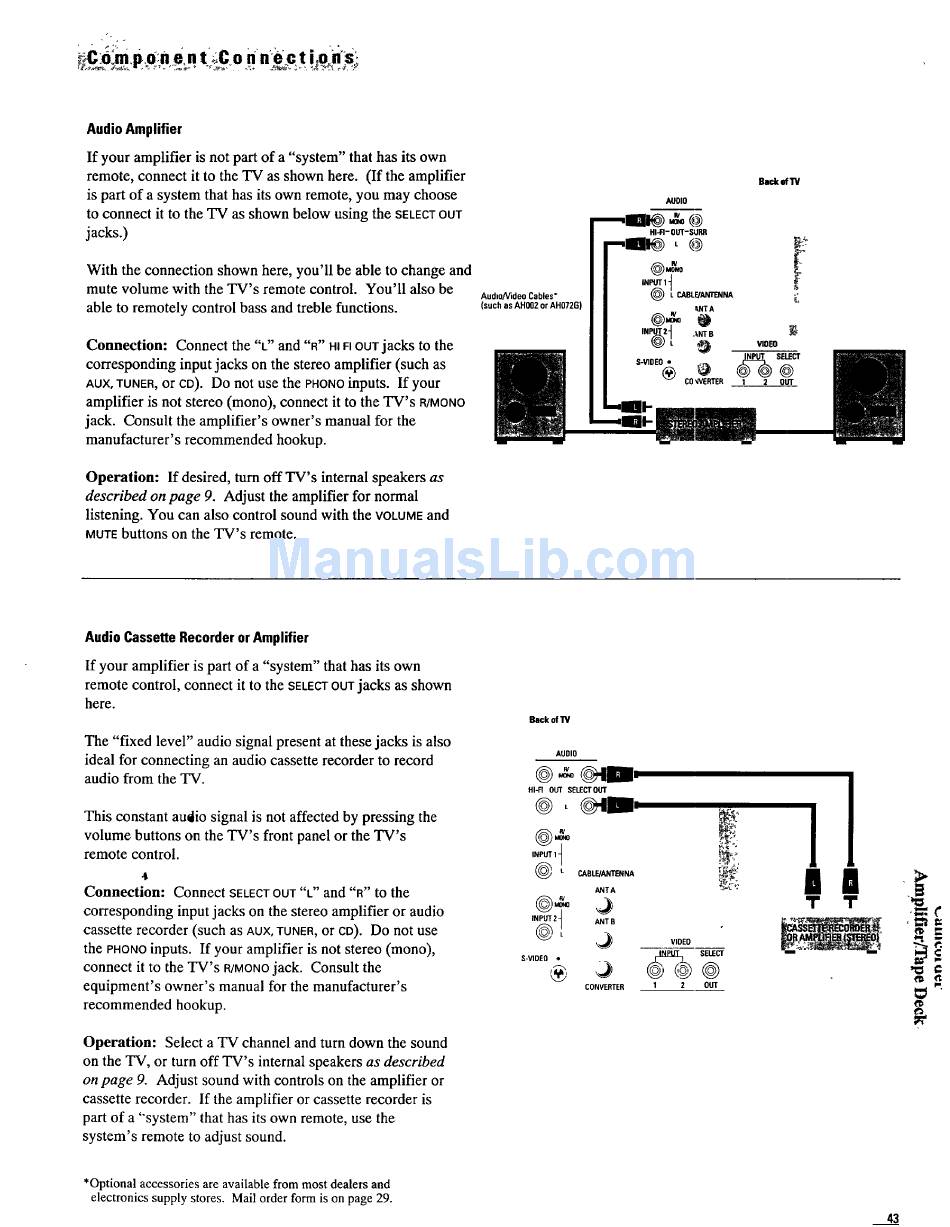

Audio Amplifier
If your amplifier is not part of a "system" that has its own
remote, connect it to the TV as shown here. (If the amplifier
is part of a system that has its own remote, you may choose
to connect it to the TV as shown below using the SELECT O UT
jacks.)
With the connection shown here, you'll be able to change and
mute volume with the TV's remote control. You'll also be
able to remotely control bass and treble functions.
Connection: Connect the "L" and "a" HiFIOUTjacks to the
corresponding input jacks on the stereo amplifier (such as
AUX, T ONER, or CO). Do not use the PHONO inputs. If your
amplifier is not stereo (mono), connect it to the TV's R/MONO
jack. Consult the amplifier's owner's manual for the
manufacturer's recommended hookup.
Operation: If desired, turn off TV's internal speakers as
described on page 9. Adjust the amplifier for normal
listening. You can also control sound with the VOLUME a nd
MOTE buttons on the TV's remote.
Audm/Video Cables*
(such asAHOQ2or AH072G)
AUDIO
Back af "IV
'VIDEO
I 2 OUT
Audio Cassette Recorder or Amplifier
If your amplifier is part of a "system" that has its own
remote control, connect it to the SELECT O UT jacks as shown
here.
The "fixed level" audio signal present at these jacks is also
ideal for connecting an audio cassette recorder to record
audio from the TV.
This constant audio signal is not affected by pressing the
volume buttons on the TV's front panel or the TV's
remote control.
4
Connection: Connect SELECT OUT"L" and "R" tO the
corresponding input jacks on the stereo amplifier or audio
cassette recorder (such as AOX, T UNER, or CO). Do not use
the PHONO inputs. If your amplifier is not stereo (mono),
connect it to the TV's R/MONO jack. Consult the
equipment's owner's manual for the manufacturer's
recommended hookup.
Operation: Select a TV channel and turn down the sound
on the TV, or turn off TV's internal speakers as described
on page 9. Adjust sound with controls on the amplifier or
cassette recorder. If the amplifier or cassette recorder is
part of a "system" that has its own remote, use the
system's remote to adjust sound.
Back of"IV
AUDIO
HI-R OUT SELECTOUT
@
INPUT 1t
t
CABLFjAh, I_tNNA
ANTA
_ITB
S-VIDEO •
CONVERTER
VIOEO
SELECT
OD ®
1 2 OUT
T "r
w
*Optional accessories are available from most dealers and
electronics supply stores. Mail order form is on page 29.
