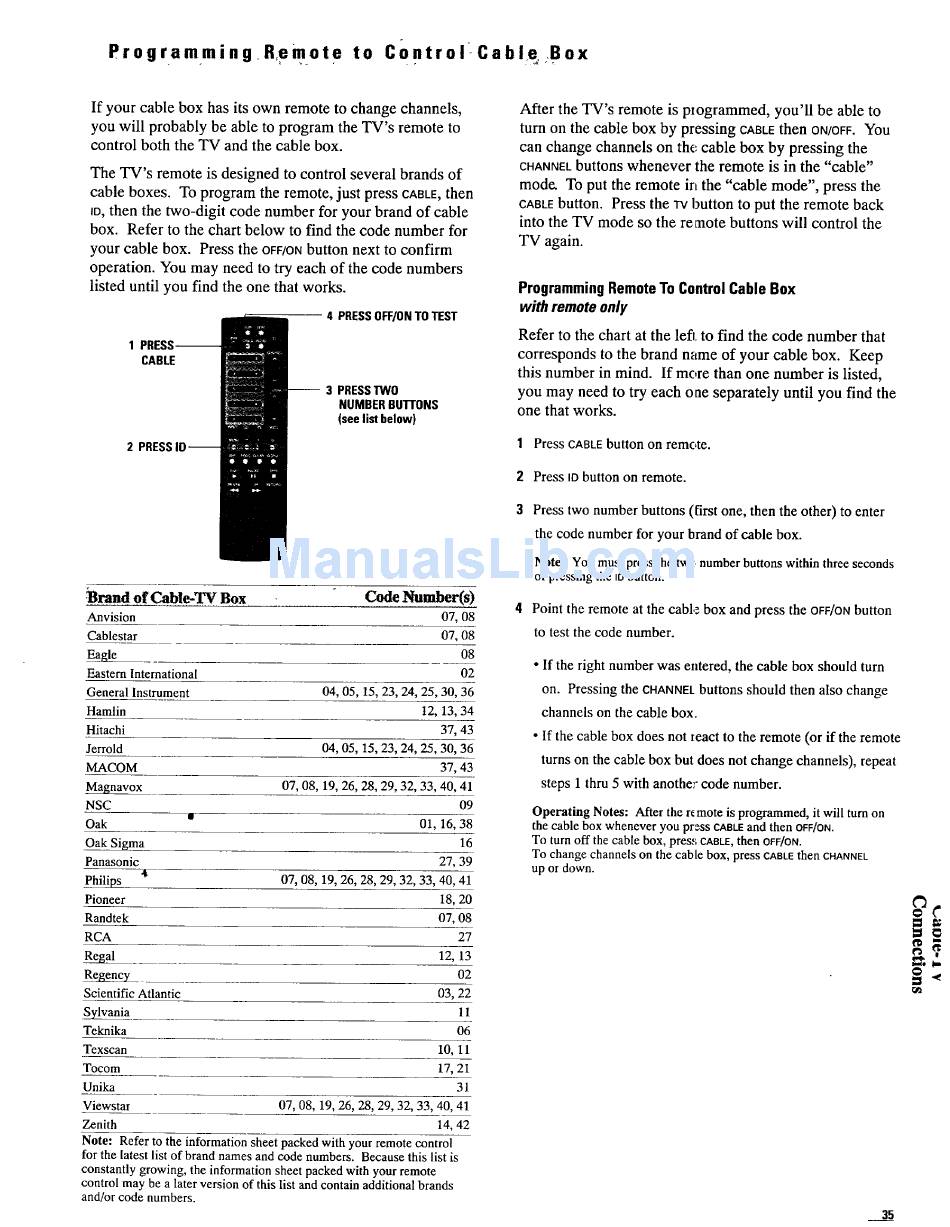

Programming.r,Emote - ProScan PS20112 Owner's Manual

Programming.R,emote to Control_CableBox
If your cable box has its own remote to change channels,
you will probably be able to program the TV's remote to
control both the TV and the cable box.
The TV's remote is designed to control several brands of
cable boxes. To program the remote, just press CABLE, then
ID,then the two-digit code number for your brand of cable
box. Refer to the chart below to find the code number for
your cable box. Press the OFF/ON button next to confirm
operation. You may need to try each of the code numbers
listed until you find the one that works.
4 PRESSOFF/ONTO TEST
1
CABLE
-- 3 PRESSTWO
NUMBERBUTTONS
(see list below)
2 PRESS
_rand og Cable-TV Box Code Number(s)
Anvision 07, 08
Cablestar 07, 08
Eagle 08
Eastern International 02
General Instrument 04, 05, 15, 23, 24, 25, 30, 36
Hamlin 12, 13, 34
Hitachi 37, 43
Jerrold 04, 05, 15, 23, 24, 25, 30, 36
MACOM 37, 43
Magnavox 07, 08, 19, 26, 28, 29, 32, 33, 40, 41
NSC 09
Oak 01, 16, 38
Oak Sigma 16
Panasonic 27, 39
Philips .t 07, 08, 19, 26, 28, 29, 32, 33, 40, 41
Pioneer 18, 20
Randtek 07, 08
RCA 27
_al 12, 13
02
Scientific Atlantic 03, 22
Sylvania 11
Teknika 06
Texscan 10, 11
Tocom 17, 21
Unika 31
Viewstar 07, 08, 19, 26, 28, 29, 32, 33, 40, 41
Zenith 14, 42
Note: Refer to the information sheet packed with your remote control
for the latest list of brand names and code numbers. Because this list is
constantly growing, the information sheet packed with your remote
control may be a later version of this list and contain additional brands
and/or code numbers.
After the TV's remote is pzogrammed, you'll be able to
turn on the cable box by pressing CABLE then ON/OFF.You
can change channels on the cable box by pressing the
CHANNEL buttons whenever the remote is in the "cable"
mode, To put the remote in the "cable mode", press the
CABLE button. Press the iv button to put the remote back
into the TV mode so the re mote buttons will control the
TV again.
ProgrammingRemoteTo ControlCable Box
with remote only
Refer to the chart at the left. to find the code number that
corresponds to the brand name of your cable box. Keep
this number in mind. If more than one number is listed,
you may need to try each one separately until you find the
one that works.
1 Press
CABLE
button on remote.
2 Press ID button on remote.
Press two number buttons (first one, then the other) to enter
the code number for your brand of cable box.
Note: You must press the two number buttons within three seconds
of pressing the to button.
4 Point the remote at the cable box and press the OFF/ONbutton
to test the code number.
• If the right number was entered, the cable box should turn
on. Pressing the CHANNELbuttons should then also change
channels on the cable box.
• If the cable box does not _eact to the remote (or if the remote
turns on the cable box but does not change channels), repeat
steps 1 thru 5 with another" code number.
Operating Notes: After the r_ mote is programmed, it will turn on
the cable box whenever you press CABLE and then OFF/ON.
To turn off the cable box, pres,; CABLE, t hen OFF/ON.
To change channels on the cable box, press CABLEthen CHANNEL
up or down.
