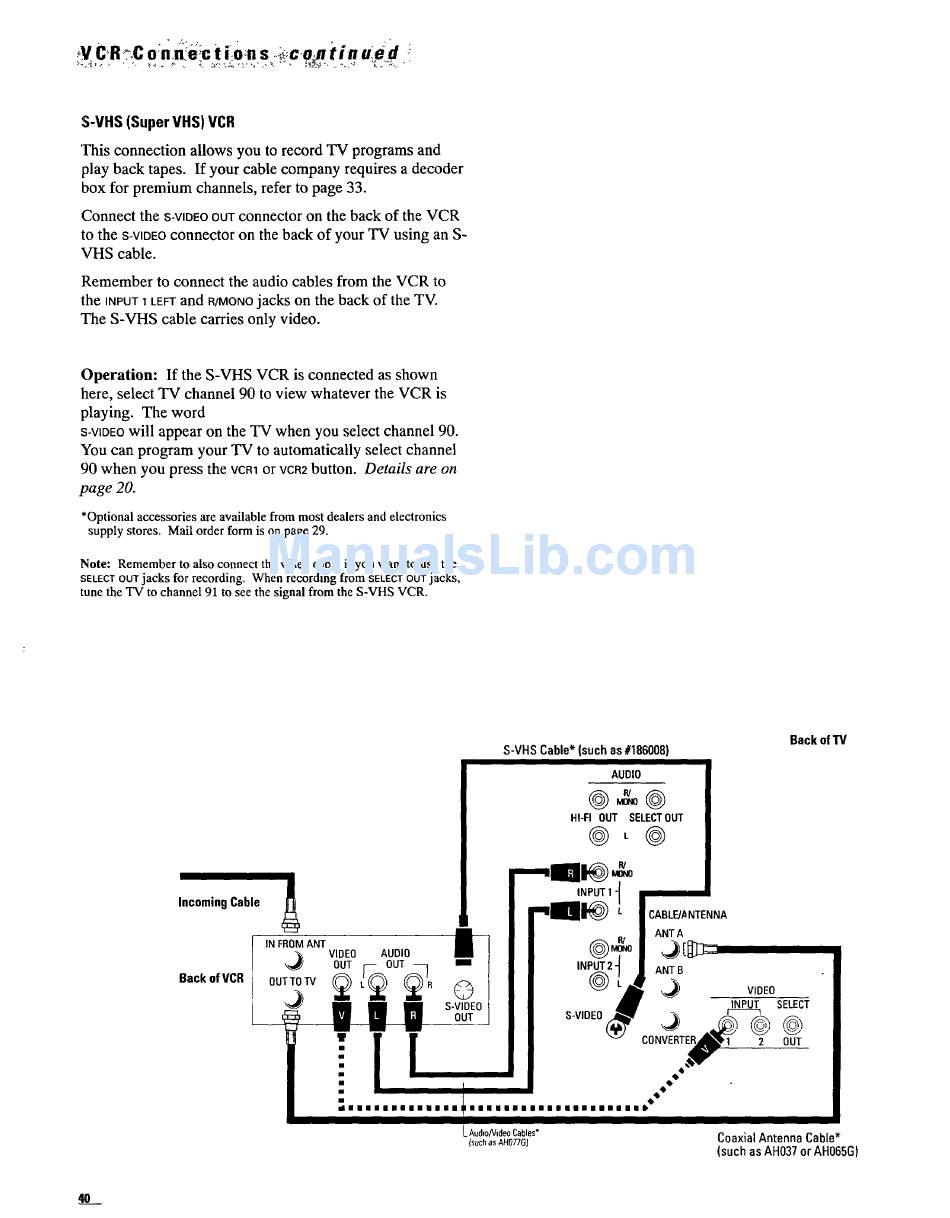

ProScan PS20112 Owner's Manual page 44

S-VHS (SuperVHS) VCR
'This connection allows you to record TV programs and
play back tapes. If your cable company requires a decoder
box for premium channels, refer to page 33.
Connect the S-VIDEO OUTconnector on the back of the VCR
to the S-VIDEO connector on the back of your TV using an S-
VHS cable.
Remember to connect the audio cables from the VCR to
the INPUT 1LEFT and R/MONO jacks on the back of the TV.
The S-VHS cable carries only video.
Operation: If the S-VHS VCR is connected as shown
here, select TV channel 90 to view whatever the VCR is
playing. The word
S-VIDEO will appear on the TV when you select channel 90.
You can program your TV to automatically select channel
90 when you press the VCR1 or VCR2 button. Details are on
page 20.
*Optional accessories are available from most dealers and electronics
supply stores. Mail order form is on page 29.
Note: Remember to also connect the video cable if you want to use the
SELECTOUTjacks for recording. When recording from SELECT OUTjacks,
tune the TV to channel 91 to see the signal from the S-VHS VCR.
Incoming Cable
IN FROM ANT J VIDEO
Back of VCR OUT TOTV
S-VHSCable* (suchas#186008)
AUDIO
HI-FI OUT SELECTOUT
Back of 1V
AUDIO
OUT_ OUT
_AudloAtldeo Cables*
(such asAH077GI
CoaxialAntennaCable*
(such as AH037or AH065G)
