Understanding QoS

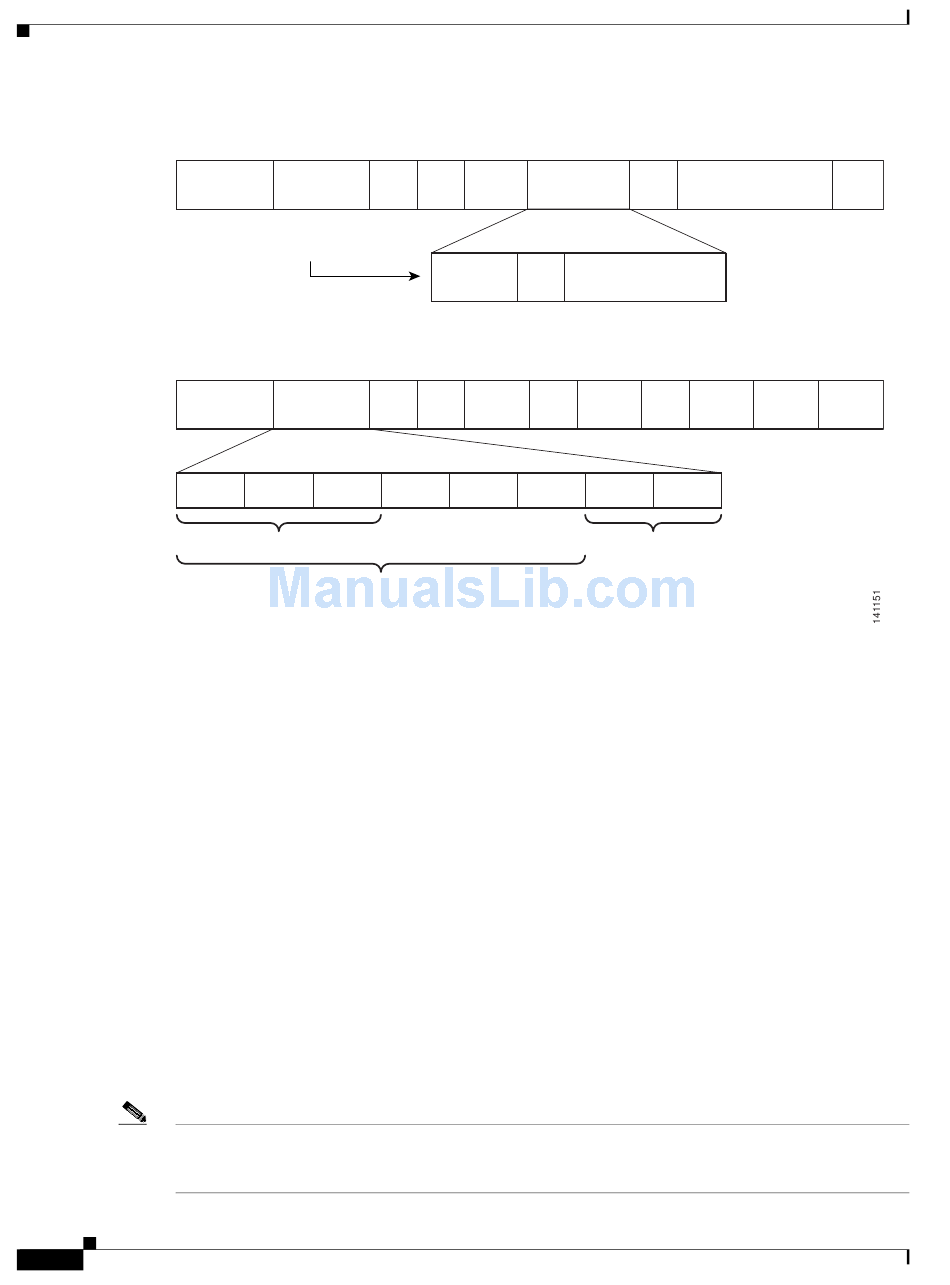

Figure 27-2
Layer 2 IEEE 802.1Q and IEEE 802.1p Frame
Preamble
Layer 3 IPv4 Packet
•
•
•
•
•
•
•
•
•
•

The match Command

In class-map configuration mode, you use the match class-map configuration command to define the
match criterion for the traffic. You can also create a class map that requires that all matching criteria in
the class map be in the packet header by using the class map match-all class-map name global
configuration command.
The match-all keyword is supported only for outer and inner VLAN, or outer and inner CoS matches
Note
for QinQ packets and is rejected for all other mutually exclusive match criteria. You can configure only
one match entry in a match-all class map
